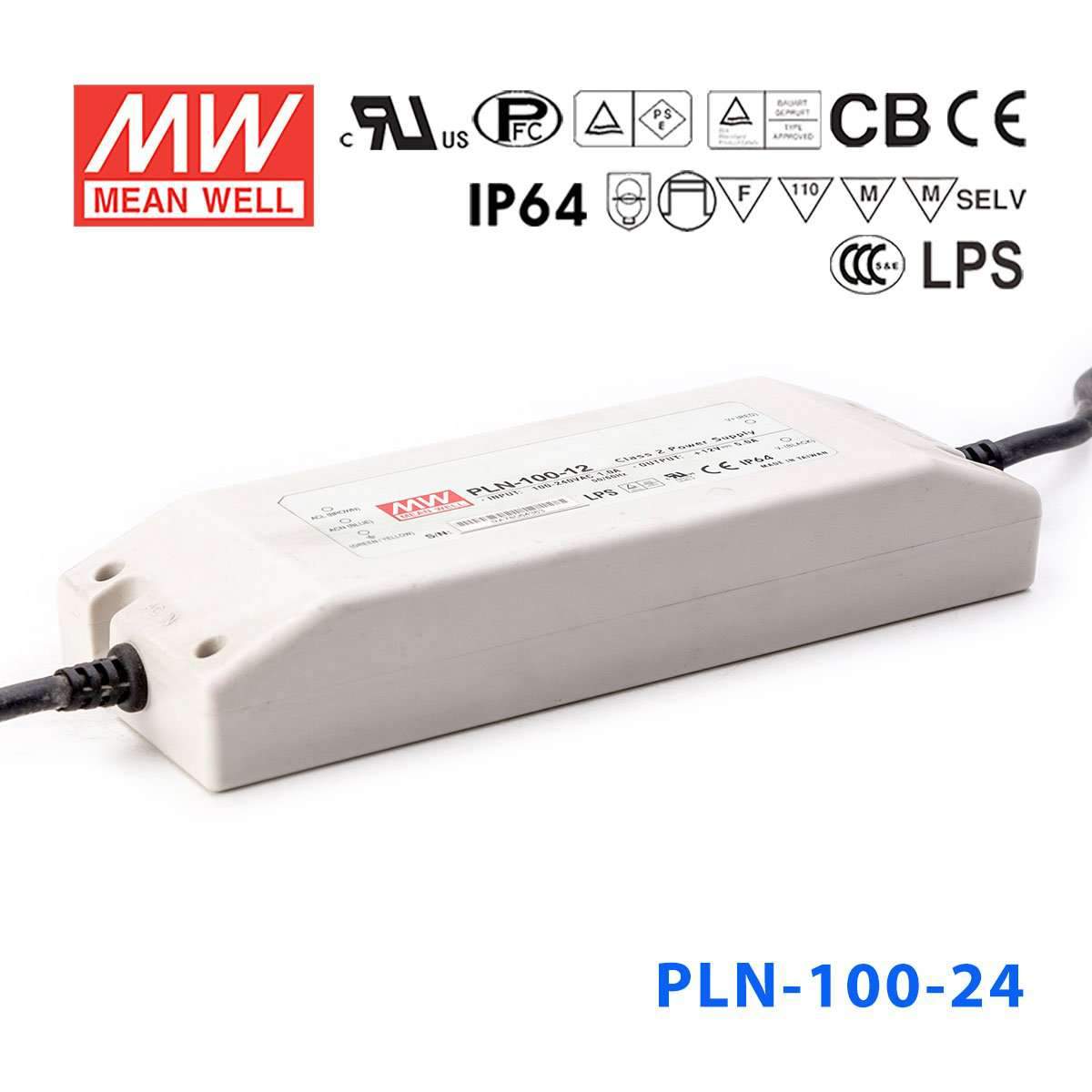

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PLN-100-24 Power Supply 100W 24V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-100-24

$49.62 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup, rise, hold up time	1200ms, 80ms, 60ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (31cm)
Connection Output	UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm)	200x 70.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

96 Watt
Output Voltage

24 Volt
Rated Current

4 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.87 in
Width

2.78 in
Height

1.38 in
Weight

1.15 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-100-24 for 24V illuminated signage?

Yes, this unit is specified as suitable for signage applications and provides 24V output up to 96W and 4A. It fits 24V signage loads that stay within those output limits.

Is the PLN-100-24 suitable for 24V LED strip lighting runs?

It can be used for 24V LED strip lighting when the strip is rated for 24V and the total connected load does not exceed 96W or 4A. The driver's CC voltage range is 18-24V, so the lighting load needs to match that output behavior.

Can this driver power 24V accent or cove lighting in damp spaces?

It is suited to 24V lighting applications up to 96W, including installations where a splash-resistant driver enclosure is needed. The IP64 housing and -30°C to +50°C operating range support use in demanding indoor or sheltered outdoor conditions.

How much 24V LED strip can the PLN-100-24 handle?

The power budget is 96W, so the estimated strip length is 96W divided by your strip's rated watts per meter. Use the formula length = 96W ÷ strip W/m, and check your strip rated power per meter so the total load also stays within 4A.

Can the PLN-100-24 be used outside?

Its IP64 rating means protection against dust and splashing water, so it is suitable for outdoor or wet-area use where direct immersion is not part of the application. The specified operating temperature range is -30°C to +50°C.

How does the PLN-100-24 compare to the other PLN models?

The PLN-100 family around it includes 12V 60W 5A, 15V 75W 5A, 20V 96W 4.8A, 27V 95.85W 3.55A, 36V 95.4W 2.65A, and 48V 96W 2A versions. The broader PLN line also spans PLN-20, PLN-30, PLN-45, and PLN-60 models, covering outputs from 9V to 48V and powers from 19.2W to 62.4W.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLN-100-48 Power Supply 100W 48V - IP64	96W	48V	2A	IP64	$49.62	View
Mean Well PLN-100-36 Power Supply 100W 36V - IP64	95.4W	36V	2.65A	IP64	$48.14	View
Mean Well PLN-100-27 Power Supply 100W 27V - IP64	95.85W	27V	3.55A	IP64	$49.62	View
Mean Well PLN-100-20 Power Supply 100W 20V - IP64	96W	20V	4.8A	IP64	$48.14	View
Mean Well PLN-100-15 Power Supply 75W 15V - IP64	75W	15V	5A	IP64	$48.14	View
Mean Well PLN-100-12 Power Supply 60W 12V - IP64	60W	12V	5A	IP64	$48.14	View
