Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

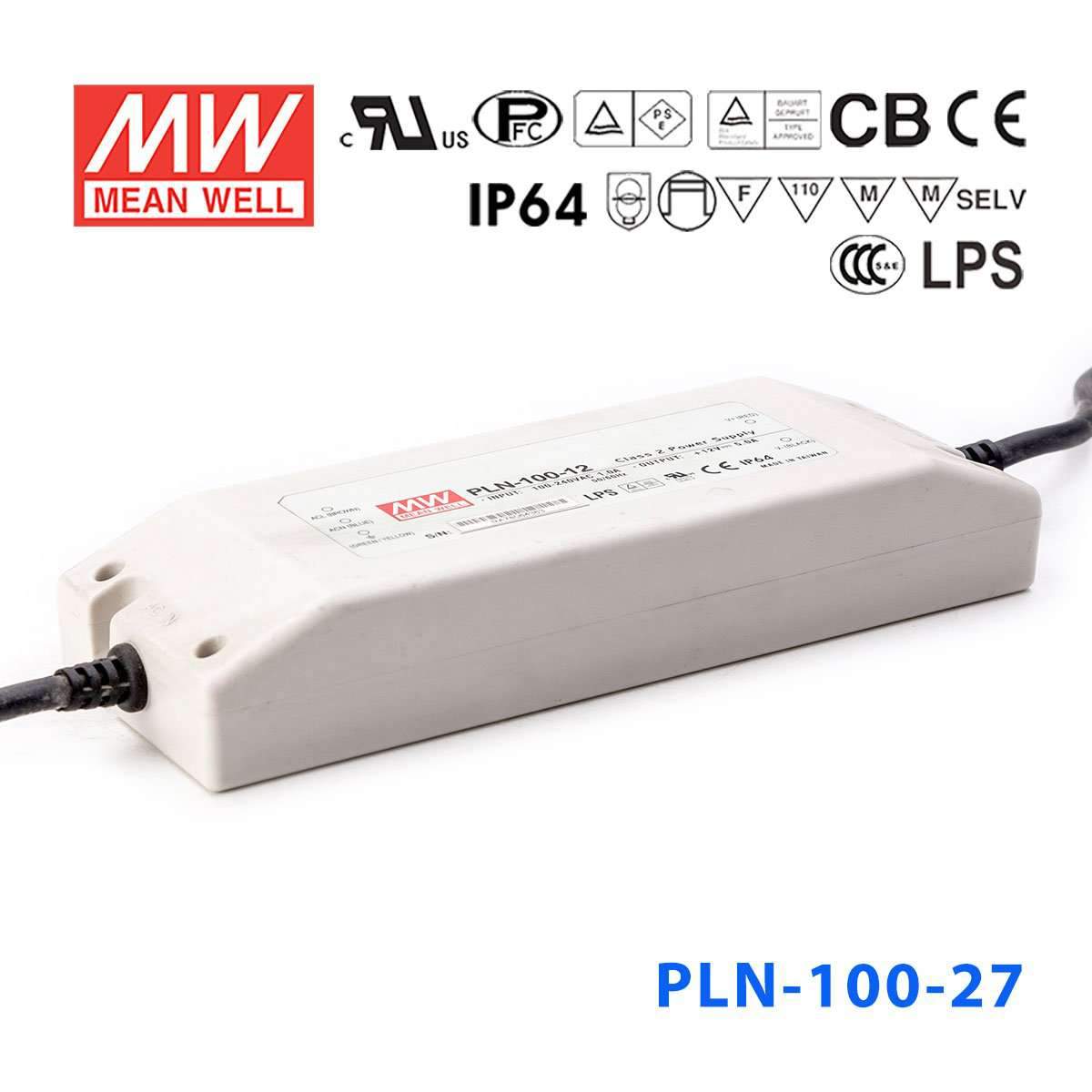

Mean Well PLN-100-27 Power Supply 100W 27V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-100-27

$49.62 USD ~~$168.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup, rise, hold up time	1200ms, 80ms, 60ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (31cm)
Connection Output	UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm)	200x 70.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

95.85 Watt
Output Voltage

27 Volt
Rated Current

3.55 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.87 in
Width

2.78 in
Height

1.38 in
Weight

1.15 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-100-27 for 27V LED signage or display lighting?

Yes, this model is identified as suitable for signage applications and delivers 27V output up to 95.85W and 3.55A. It should be matched only with 27V lighting loads within those limits.

Is the PLN-100-27 appropriate for 27V linear or accent LED lighting?

It is suitable for 27V low-voltage lighting loads that require up to 95.85W. The driver's CC voltage range is 20-27V, so the connected lighting needs to be compatible with that output range.

Can this driver be used for specialty 27V lighting in commercial signage cabinets?

It can be used where a 27V driver is needed for signage or similar lighting applications and the load stays under 95.85W and 3.55A. The fully isolated plastic case also provides an enclosed housing with IP64 protection.

How do I size LED strip length for the PLN-100-27?

Use the driver's maximum output power of 95.85W and divide it by the strip's rated watts per meter. The math is length = 95.85W ÷ strip W/m; check your strip rated power per meter and keep total current within 3.55A.

Is the PLN-100-27 suitable for outdoor or wet environments?

The IP64 rating means the housing is protected against dust and splashing water, so it can suit outdoor or damp locations where immersion is not required. Its operating temperature range is -30°C to +50°C.

What are the sibling options if I am comparing the PLN-100-27 to the rest of the PLN line?

The other PLN-100 outputs are 12V 60W 5A, 15V 75W 5A, 20V 96W 4.8A, 24V 96W 4A, 36V 95.4W 2.65A, and 48V 96W 2A. Across the wider PLN series, the smaller tiers run from 19.2W to 62.4W and cover 9V, 12V, 15V, 18V, 20V, 24V, 27V, 36V, and 48V outputs.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLN-100-24 Power Supply 100W 24V - IP64	96W	24V	4A	IP64	$49.62	View
Mean Well PLN-100-48 Power Supply 100W 48V - IP64	96W	48V	2A	IP64	$49.62	View
Mean Well PLN-100-36 Power Supply 100W 36V - IP64	95.4W	36V	2.65A	IP64	$48.14	View
Mean Well PLN-100-20 Power Supply 100W 20V - IP64	96W	20V	4.8A	IP64	$48.14	View
Mean Well PLN-100-15 Power Supply 75W 15V - IP64	75W	15V	5A	IP64	$48.14	View
Mean Well PLN-100-12 Power Supply 60W 12V - IP64	60W	12V	5A	IP64	$48.14	View
