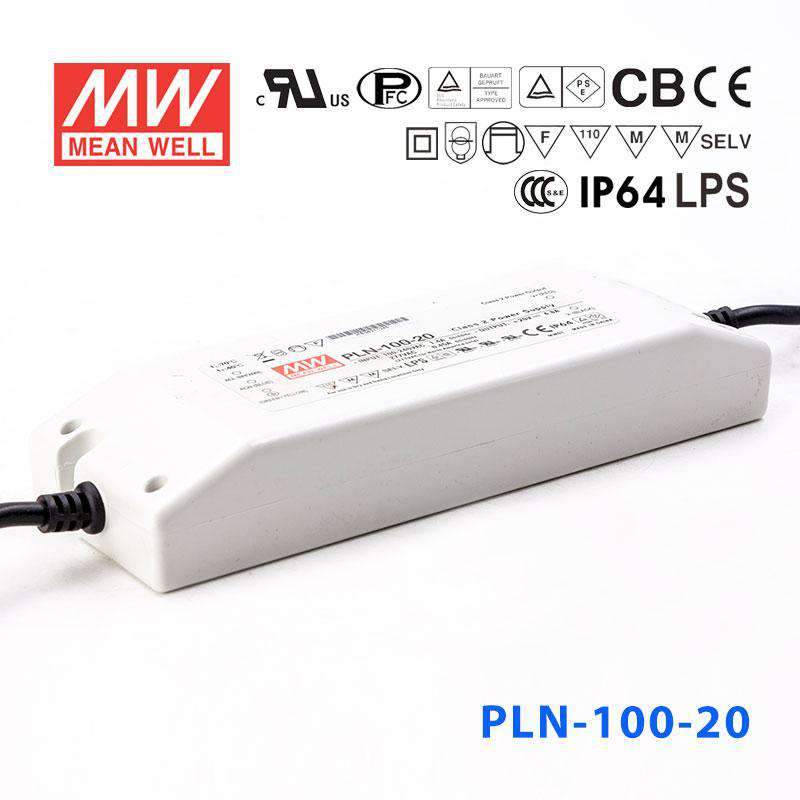

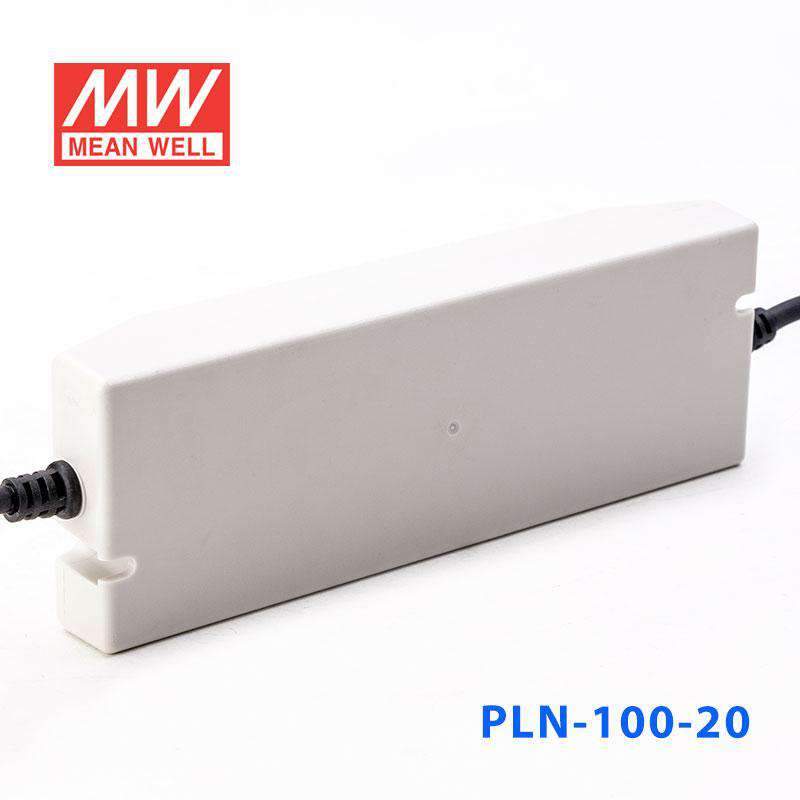

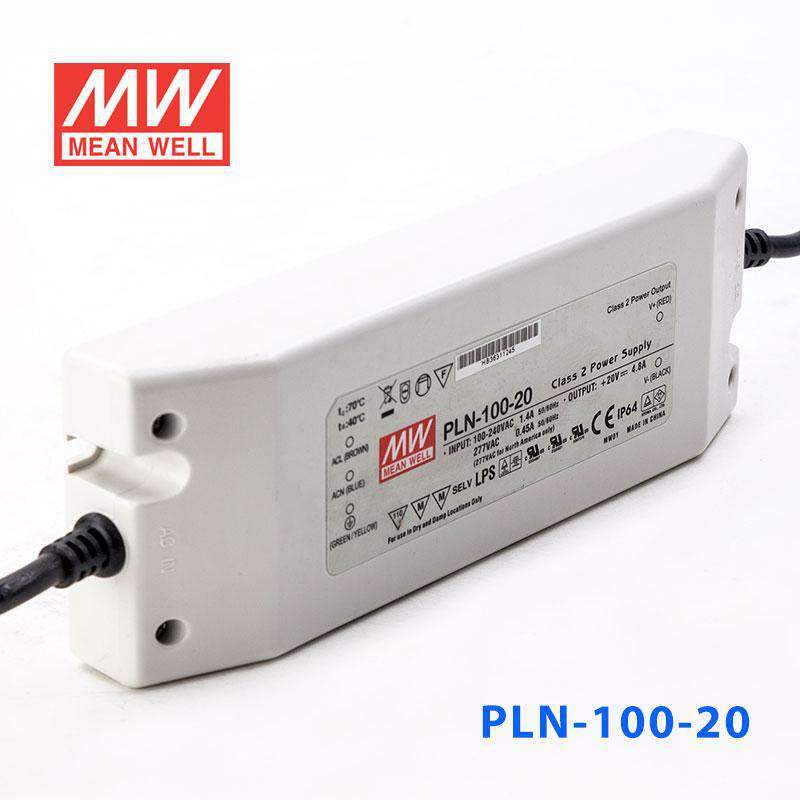

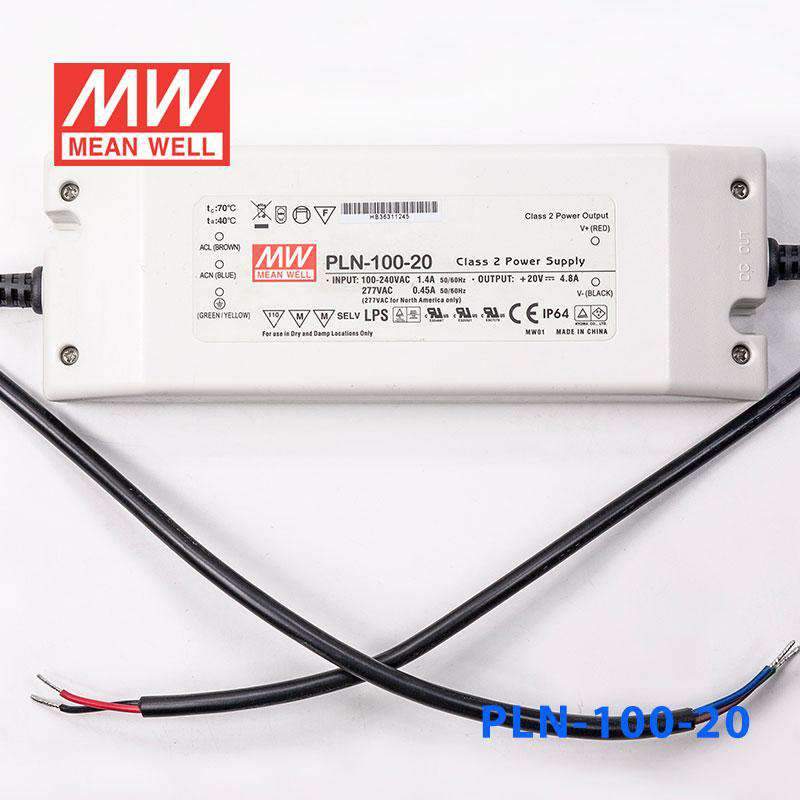

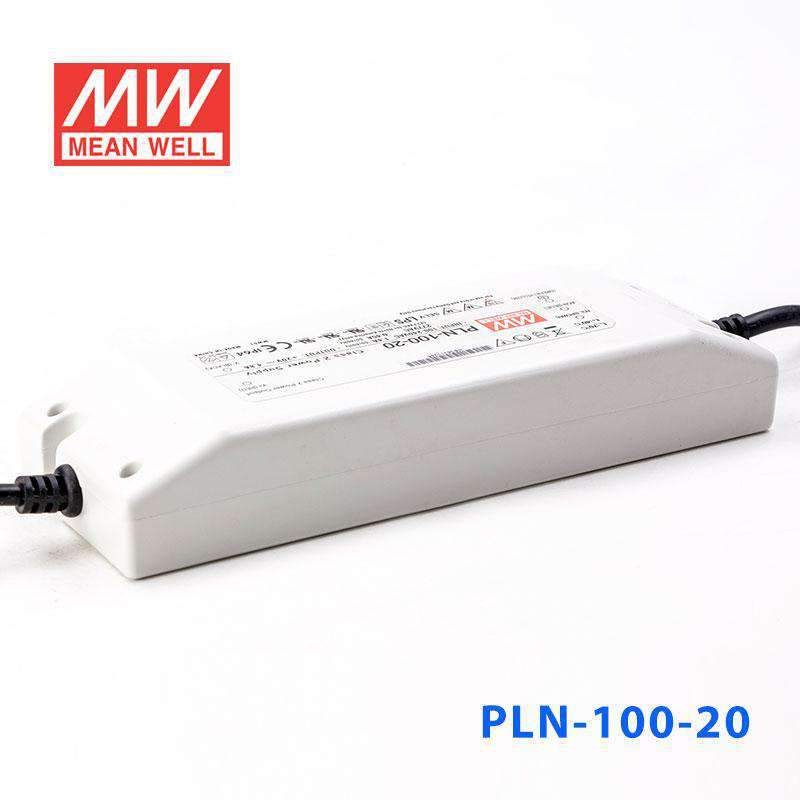

Mean Well PLN-100-20 Power Supply 100W 20V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-100-20

$48.14 USD ~~$168.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup, rise, hold up time	1200ms, 80ms, 60ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (31cm)
Connection Output	UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm)	200x 70.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

96 Watt
Output Voltage

20 Volt
Rated Current

4.8 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.87 in
Width

2.78 in
Height

1.38 in
Weight

1.15 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-100-20 for 20V LED signage applications?

Yes, this model is listed as suitable for signage applications and delivers a 20V output up to 96W and 4.8A. It should only be used with 20V lighting loads that stay inside those limits.

Is the PLN-100-20 suitable for 20V LED strip lighting?

It can be used with 20V LED strip lighting if the strip is rated for 20V and the total load does not exceed 96W or 4.8A. Its constant current operation and 15-20V CC range mean the load needs to match the driver's output characteristics.

Can this driver run 20V display or cabinet lighting in commercial environments?

It is appropriate for 20V low-voltage lighting where the load requires up to 96W and 4.8A. The input range of 90-295VAC also supports use across a broad AC supply range.

How do I estimate LED strip length for the PLN-100-20?

Use the available output power of 96W and divide it by your strip's rated power per meter. The math is length = 96W ÷ strip W/m; check your strip rated power per meter and confirm the total current stays within 4.8A.

Is the PLN-100-20 okay for outdoor or splash-prone installations?

The IP64 enclosure is intended for dust protection and resistance to splashing water, so it suits outdoor or damp locations where the driver is not submerged. Its operating temperature range is -30°C to +50°C.

What are the main differences between the PLN-100-20 and other PLN family options?

In the PLN-100 range, the related outputs are 12V 60W 5A, 15V 75W 5A, 24V 96W 4A, 27V 95.85W 3.55A, 36V 95.4W 2.65A, and 48V 96W 2A. Other PLN tiers include PLN-20 at 19.2W to 20.2W, PLN-30 at 29.7W to 30.24W, PLN-45 at 45W to 46W, and PLN-60 at 60W to 62.4W across multiple voltages.
