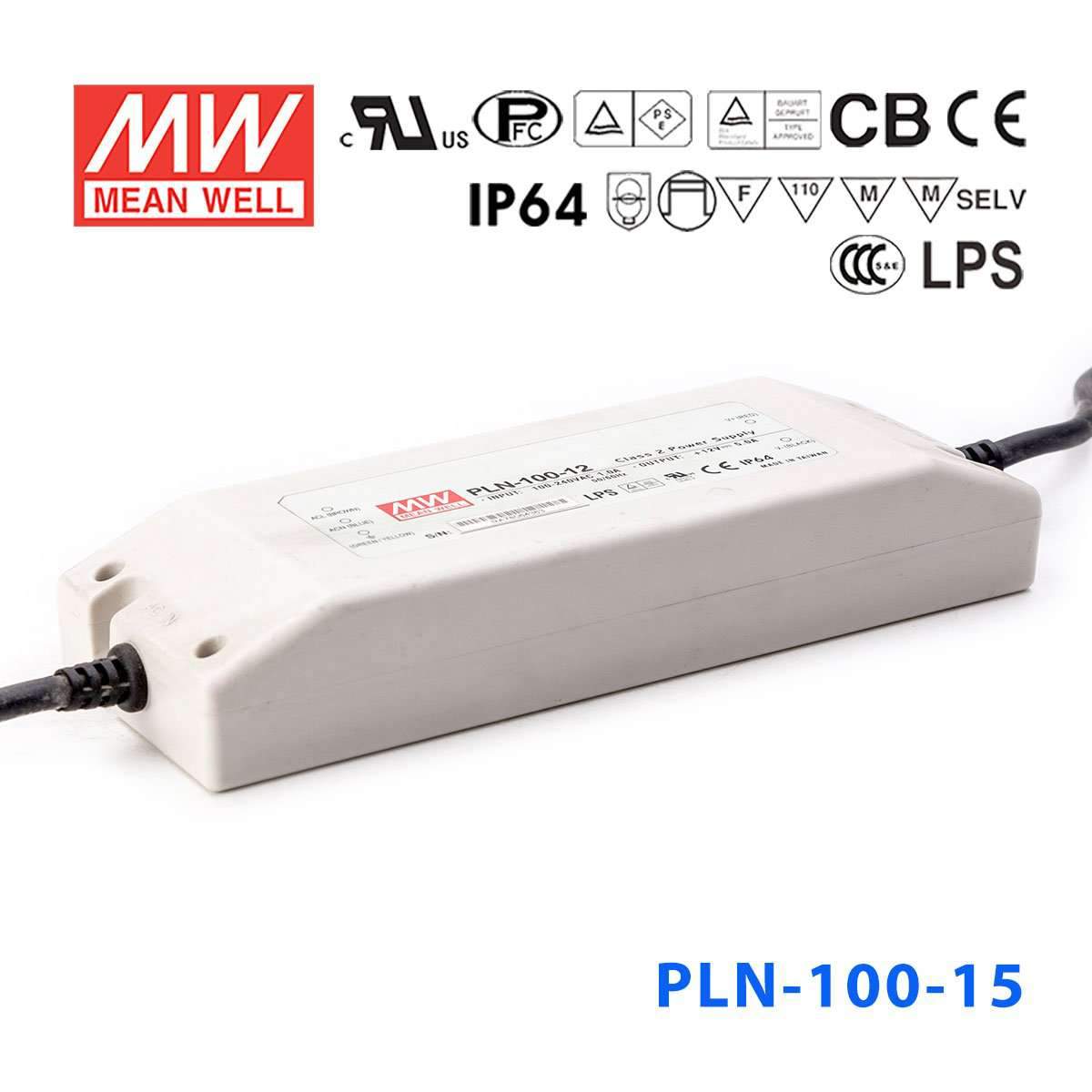

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PLN-100-15 Power Supply 75W 15V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-100-15

$48.14 USD ~~$168.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup, rise, hold up time	1200ms, 80ms, 60ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (31cm)
Connection Output	UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm)	200x 70.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

75 Watt
Output Voltage

15 Volt
Rated Current

5 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.87 in
Width

2.78 in
Height

1.38 in
Weight

1.15 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-100-15 for 15V LED signage lighting?

Yes, this model is suitable for signage applications and provides a 15V output with up to 75W and 5A. It fits 15V lighting loads that stay within that output limit.

Is the PLN-100-15 a good fit for 15V LED strip lighting in a damp location?

It can be used for 15V LED strip lighting when the strip is rated for 15V and the total load does not exceed 75W or 5A. Its IP64 rating means the driver housing is intended for dust protection and splashing water conditions rather than full submersion.

Can this 15V driver power low-voltage architectural or accent lighting?

It is suitable for 15V low-voltage lighting applications that need up to 75W of output power. The operating range of -30°C to +50°C also makes it relevant for indoor or sheltered outdoor lighting environments within that temperature range.

How much 15V LED strip can the PLN-100-15 support?

The maximum available power is 75W, so the strip length estimate is 75W divided by your strip's rated power per meter. For example, the formula is length = 75W ÷ strip W/m; check your strip rated power per meter and make sure the total also stays within 5A.

Can the PLN-100-15 be used outdoors or in wet areas?

Its IP64 rating means the enclosure is protected against dust ingress and splashing water, so it is suited to outdoor or wet-area use where direct immersion is not expected. The specified operating temperature range is -30°C to +50°C.

How does the PLN-100-15 compare with other PLN series models?

Within the PLN-100 group, the sibling outputs are 12V 60W 5A, 20V 96W 4.8A, 24V 96W 4A, 27V 95.85W 3.55A, 36V 95.4W 2.65A, and 48V 96W 2A. The wider series also includes PLN-20 models from 19.2W to 20.2W, PLN-30 models from 29.7W to 30.24W, PLN-45 models from 45W to 46W, and PLN-60 models from 60W to 62.4W across 9V to 48V outputs.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLN-100-24 Power Supply 100W 24V - IP64	96W	24V	4A	IP64	$49.62	View
Mean Well PLN-100-48 Power Supply 100W 48V - IP64	96W	48V	2A	IP64	$49.62	View
Mean Well PLN-100-36 Power Supply 100W 36V - IP64	95.4W	36V	2.65A	IP64	$48.14	View
Mean Well PLN-100-27 Power Supply 100W 27V - IP64	95.85W	27V	3.55A	IP64	$49.62	View
Mean Well PLN-100-20 Power Supply 100W 20V - IP64	96W	20V	4.8A	IP64	$48.14	View
Mean Well PLN-100-12 Power Supply 60W 12V - IP64	60W	12V	5A	IP64	$48.14	View
