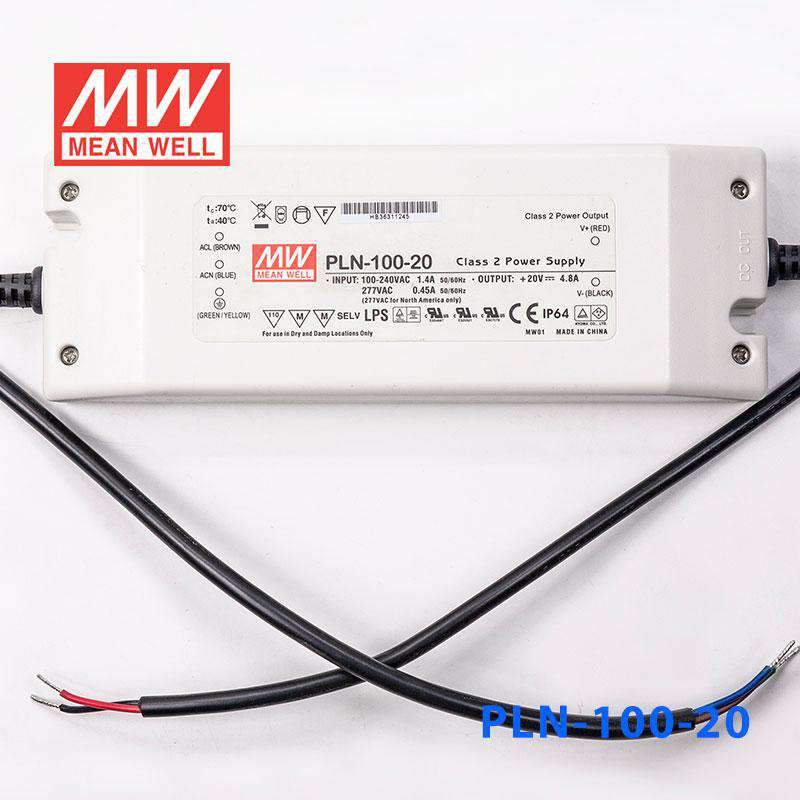

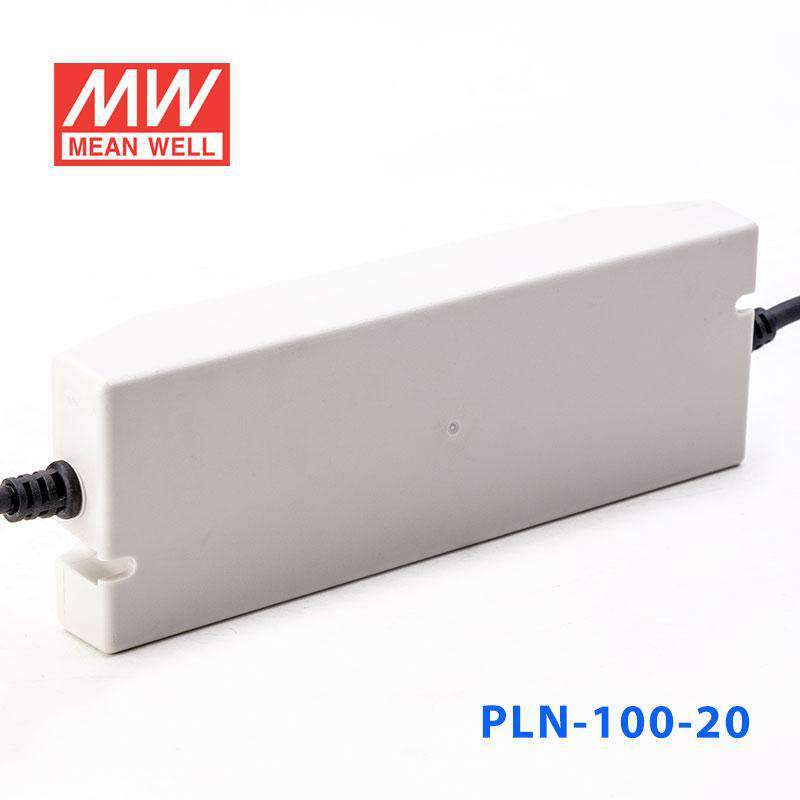

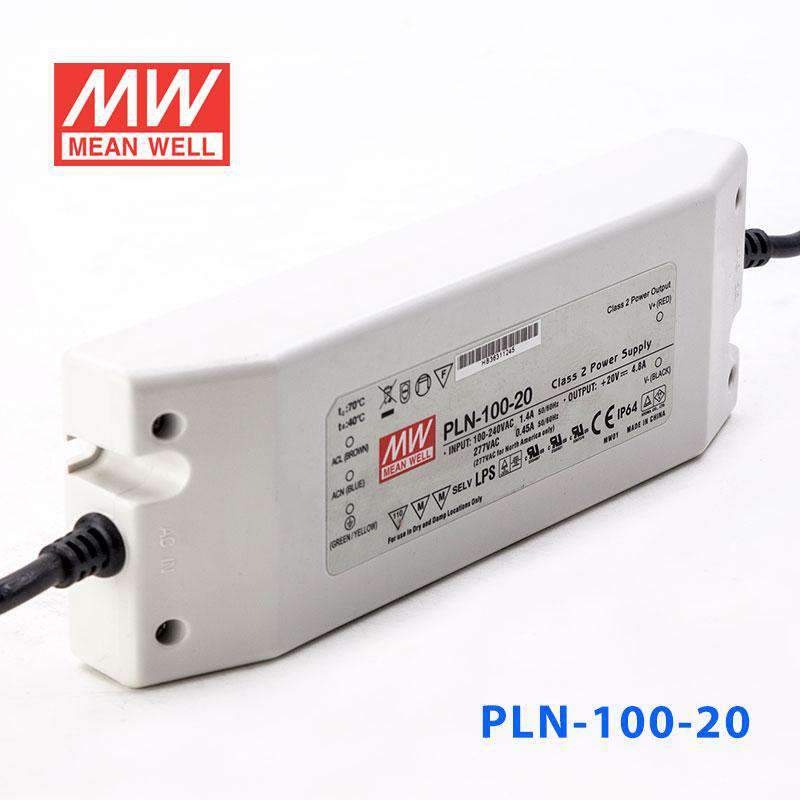

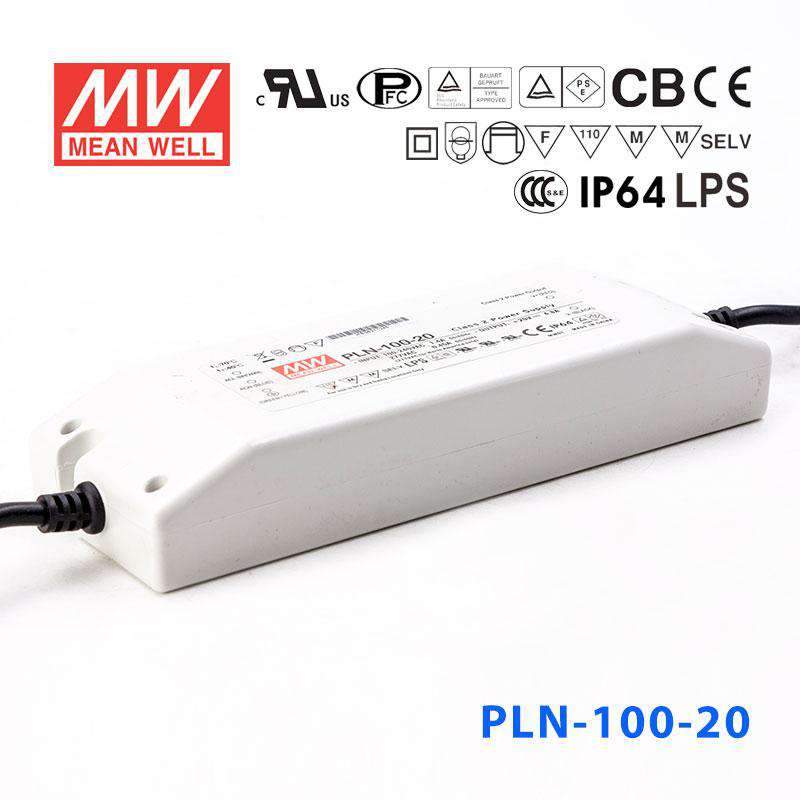

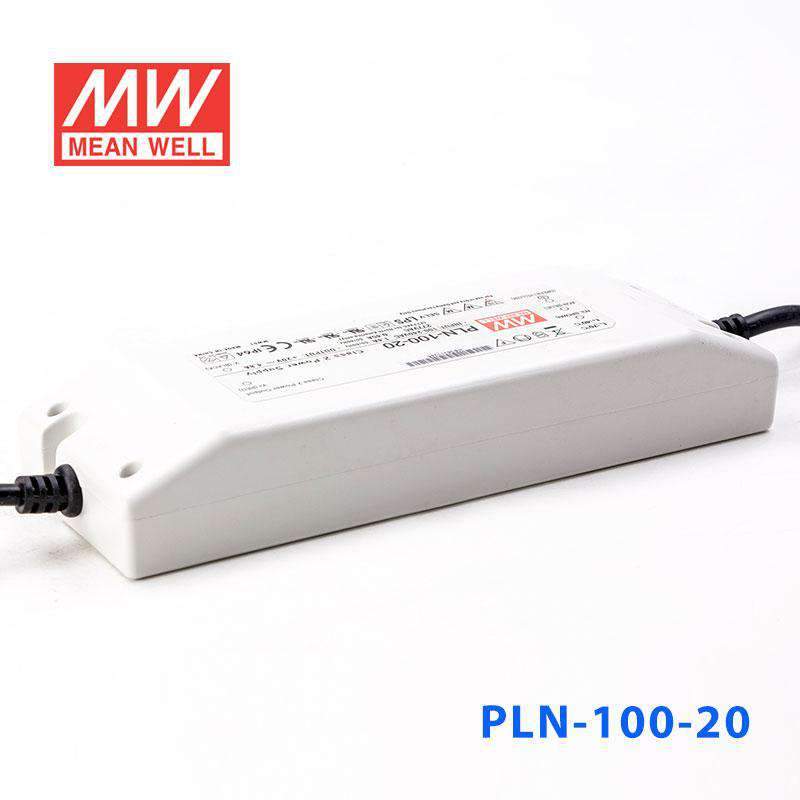

Mean Well PLN-100-20 Power Supply 100W 20V - IP64
The PLN-100 is a 100W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating96 Watt
-
Output Voltage20 Volt
-
Rated Current4.8 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.87 in
-
Width2.78 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
Can I use the PLN-100-20 for 20V LED signage applications?
Yes, this model is listed as suitable for signage applications and delivers a 20V output up to 96W and 4.8A. It should only be used with 20V lighting loads that stay inside those limits.
Is the PLN-100-20 suitable for 20V LED strip lighting?
It can be used with 20V LED strip lighting if the strip is rated for 20V and the total load does not exceed 96W or 4.8A. Its constant current operation and 15-20V CC range mean the load needs to match the driver's output characteristics.
Can this driver run 20V display or cabinet lighting in commercial environments?
It is appropriate for 20V low-voltage lighting where the load requires up to 96W and 4.8A. The input range of 90-295VAC also supports use across a broad AC supply range.
How do I estimate LED strip length for the PLN-100-20?
Use the available output power of 96W and divide it by your strip's rated power per meter. The math is length = 96W ÷ strip W/m; check your strip rated power per meter and confirm the total current stays within 4.8A.
Is the PLN-100-20 okay for outdoor or splash-prone installations?
The IP64 enclosure is intended for dust protection and resistance to splashing water, so it suits outdoor or damp locations where the driver is not submerged. Its operating temperature range is -30°C to +50°C.
What are the main differences between the PLN-100-20 and other PLN family options?
In the PLN-100 range, the related outputs are 12V 60W 5A, 15V 75W 5A, 24V 96W 4A, 27V 95.85W 3.55A, 36V 95.4W 2.65A, and 48V 96W 2A. Other PLN tiers include PLN-20 at 19.2W to 20.2W, PLN-30 at 29.7W to 30.24W, PLN-45 at 45W to 46W, and PLN-60 at 60W to 62.4W across multiple voltages.
