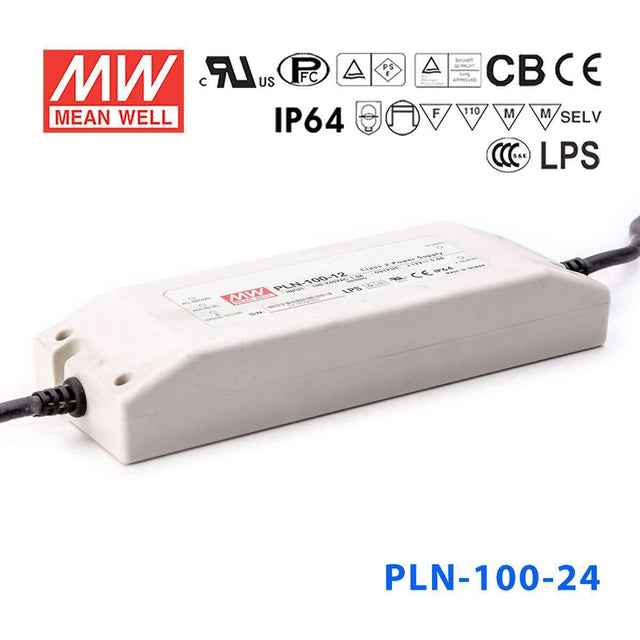

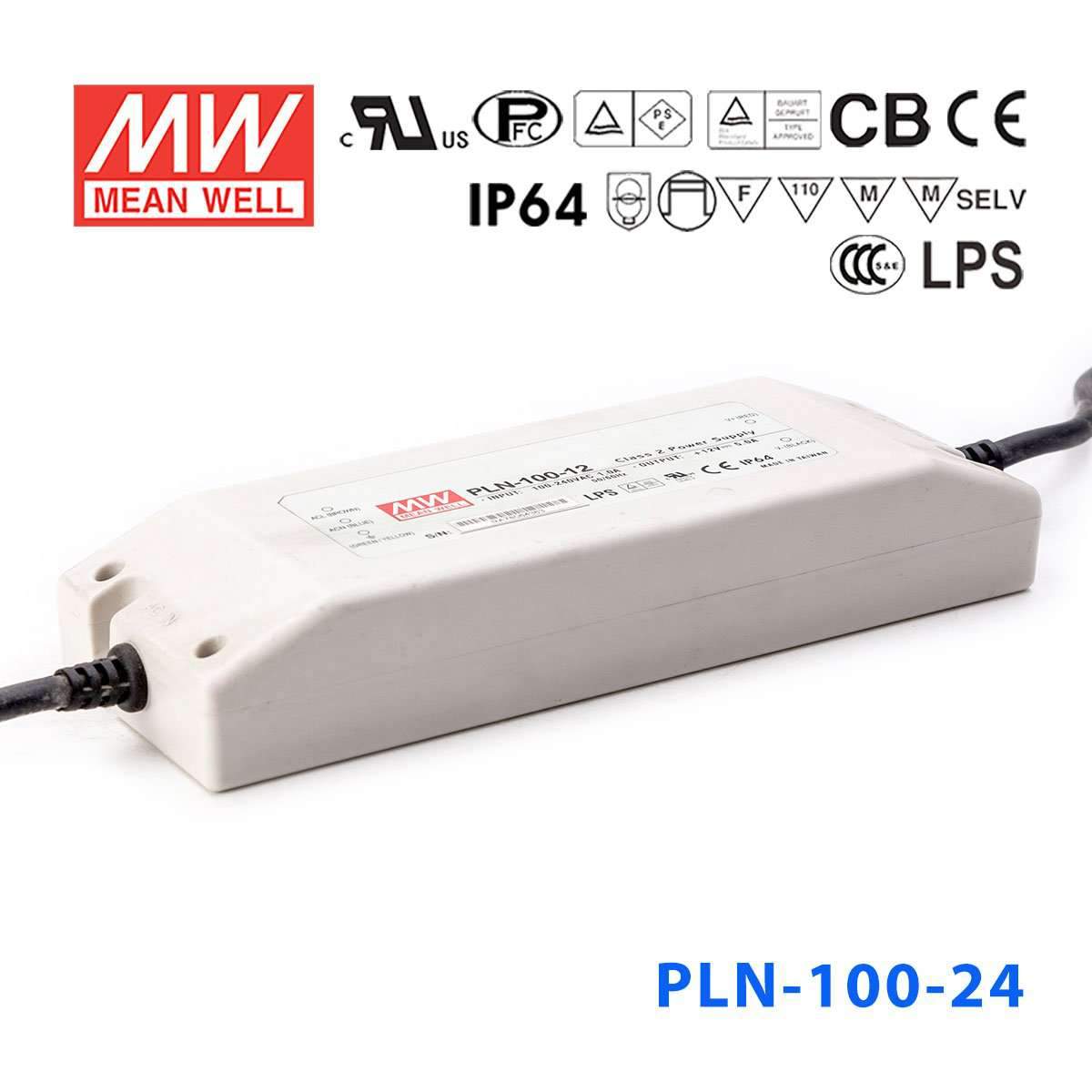

Mean Well PLN-100-24 Power Supply 100W 24V - IP64
The PLN-100 is a 100W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.87 in
-
Width2.78 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
Can I use the PLN-100-24 for 24V illuminated signage?
Yes, this unit is specified as suitable for signage applications and provides 24V output up to 96W and 4A. It fits 24V signage loads that stay within those output limits.
Is the PLN-100-24 suitable for 24V LED strip lighting runs?
It can be used for 24V LED strip lighting when the strip is rated for 24V and the total connected load does not exceed 96W or 4A. The driver's CC voltage range is 18-24V, so the lighting load needs to match that output behavior.
Can this driver power 24V accent or cove lighting in damp spaces?
It is suited to 24V lighting applications up to 96W, including installations where a splash-resistant driver enclosure is needed. The IP64 housing and -30°C to +50°C operating range support use in demanding indoor or sheltered outdoor conditions.
How much 24V LED strip can the PLN-100-24 handle?
The power budget is 96W, so the estimated strip length is 96W divided by your strip's rated watts per meter. Use the formula length = 96W ÷ strip W/m, and check your strip rated power per meter so the total load also stays within 4A.
Can the PLN-100-24 be used outside?
Its IP64 rating means protection against dust and splashing water, so it is suitable for outdoor or wet-area use where direct immersion is not part of the application. The specified operating temperature range is -30°C to +50°C.
How does the PLN-100-24 compare to the other PLN models?
The PLN-100 family around it includes 12V 60W 5A, 15V 75W 5A, 20V 96W 4.8A, 27V 95.85W 3.55A, 36V 95.4W 2.65A, and 48V 96W 2A versions. The broader PLN line also spans PLN-20, PLN-30, PLN-45, and PLN-60 models, covering outputs from 9V to 48V and powers from 19.2W to 62.4W.
