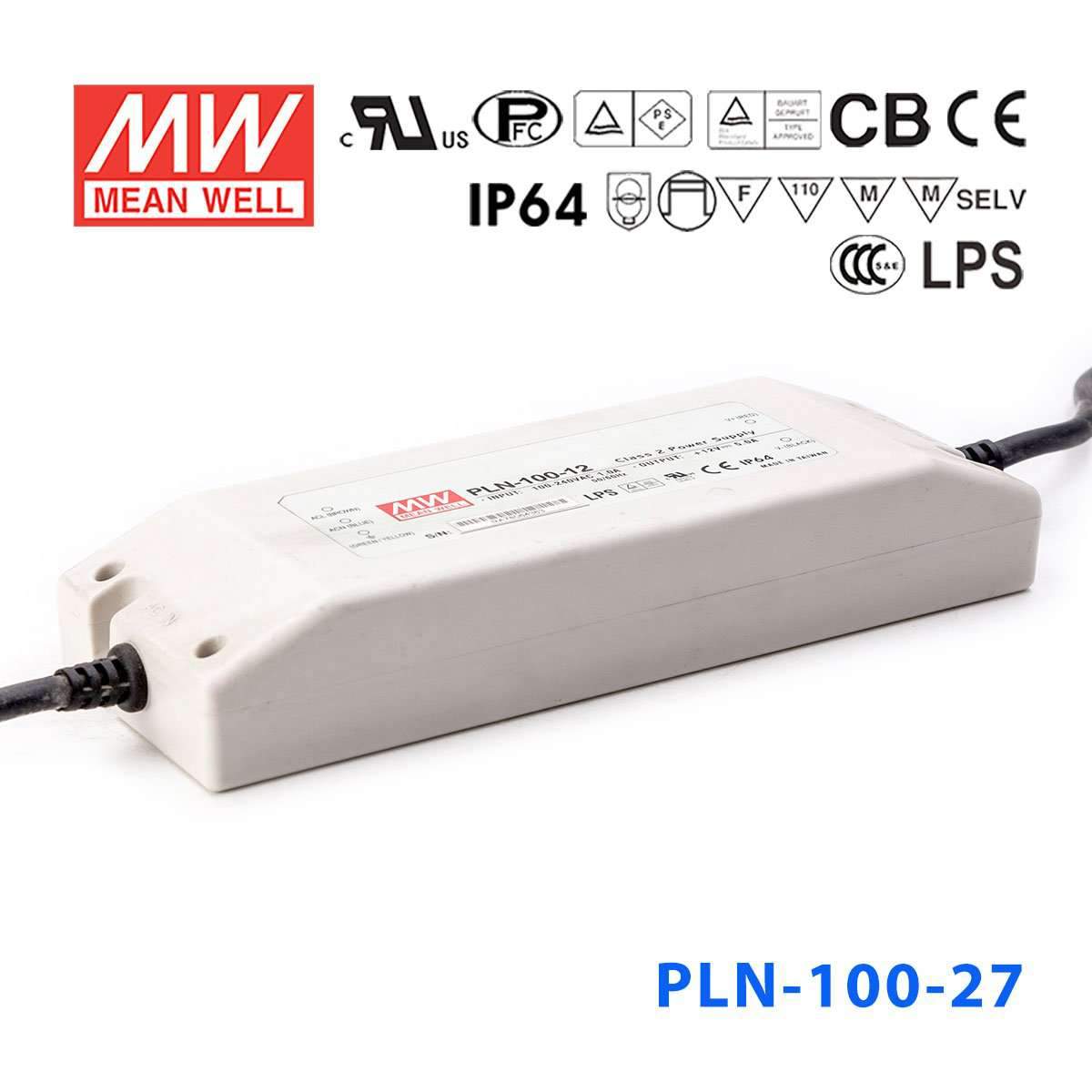

Mean Well PLN-100-27 Power Supply 100W 27V - IP64
The PLN-100 is a 100W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating95.85 Watt
-
Output Voltage27 Volt
-
Rated Current3.55 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.87 in
-
Width2.78 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
Can I use the PLN-100-27 for 27V LED signage or display lighting?
Yes, this model is identified as suitable for signage applications and delivers 27V output up to 95.85W and 3.55A. It should be matched only with 27V lighting loads within those limits.
Is the PLN-100-27 appropriate for 27V linear or accent LED lighting?
It is suitable for 27V low-voltage lighting loads that require up to 95.85W. The driver's CC voltage range is 20-27V, so the connected lighting needs to be compatible with that output range.
Can this driver be used for specialty 27V lighting in commercial signage cabinets?
It can be used where a 27V driver is needed for signage or similar lighting applications and the load stays under 95.85W and 3.55A. The fully isolated plastic case also provides an enclosed housing with IP64 protection.
How do I size LED strip length for the PLN-100-27?
Use the driver's maximum output power of 95.85W and divide it by the strip's rated watts per meter. The math is length = 95.85W ÷ strip W/m; check your strip rated power per meter and keep total current within 3.55A.
Is the PLN-100-27 suitable for outdoor or wet environments?
The IP64 rating means the housing is protected against dust and splashing water, so it can suit outdoor or damp locations where immersion is not required. Its operating temperature range is -30°C to +50°C.
What are the sibling options if I am comparing the PLN-100-27 to the rest of the PLN line?
The other PLN-100 outputs are 12V 60W 5A, 15V 75W 5A, 20V 96W 4.8A, 24V 96W 4A, 36V 95.4W 2.65A, and 48V 96W 2A. Across the wider PLN series, the smaller tiers run from 19.2W to 62.4W and cover 9V, 12V, 15V, 18V, 20V, 24V, 27V, 36V, and 48V outputs.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLN-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLN-100-24 Power Supply 100W 24V - IP64 | 96W | 24V | 4A | IP64 | $49.62 | View |
| Mean Well PLN-100-48 Power Supply 100W 48V - IP64 | 96W | 48V | 2A | IP64 | $49.62 | View |
| Mean Well PLN-100-36 Power Supply 100W 36V - IP64 | 95.4W | 36V | 2.65A | IP64 | $48.14 | View |
| Mean Well PLN-100-20 Power Supply 100W 20V - IP64 | 96W | 20V | 4.8A | IP64 | $48.14 | View |
| Mean Well PLN-100-15 Power Supply 75W 15V - IP64 | 75W | 15V | 5A | IP64 | $48.14 | View |
| Mean Well PLN-100-12 Power Supply 60W 12V - IP64 | 60W | 12V | 5A | IP64 | $48.14 | View |
