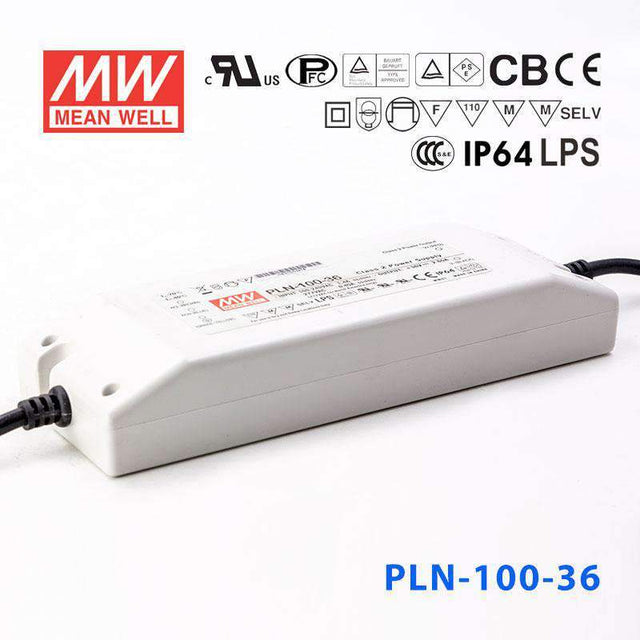

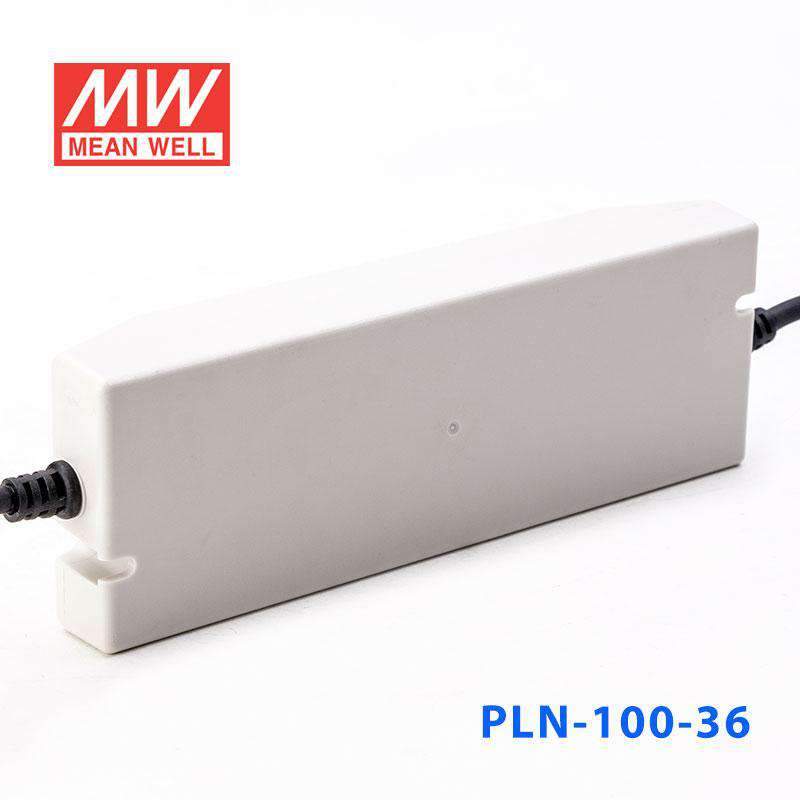

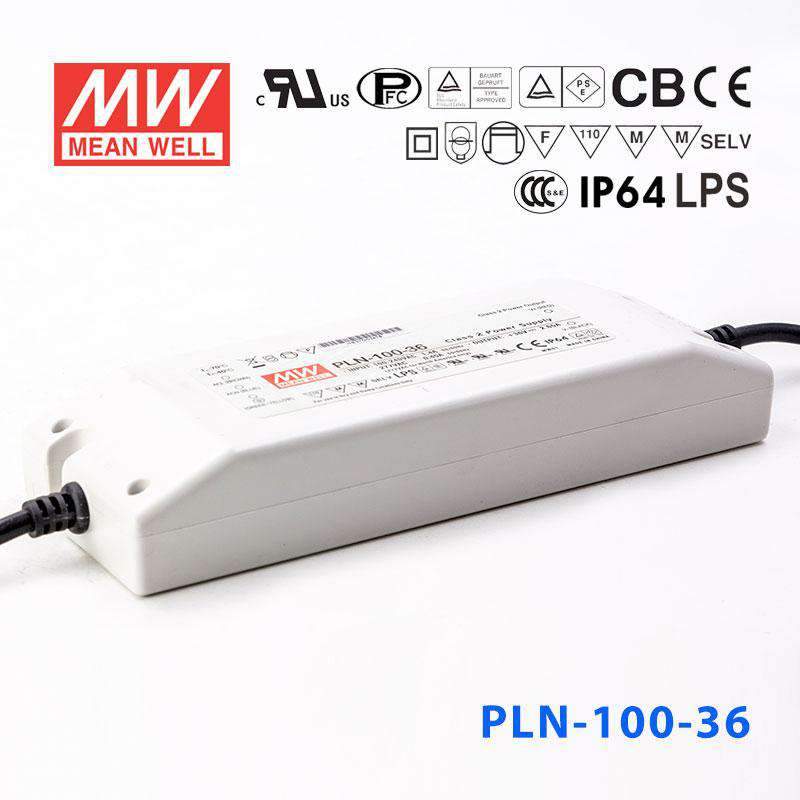

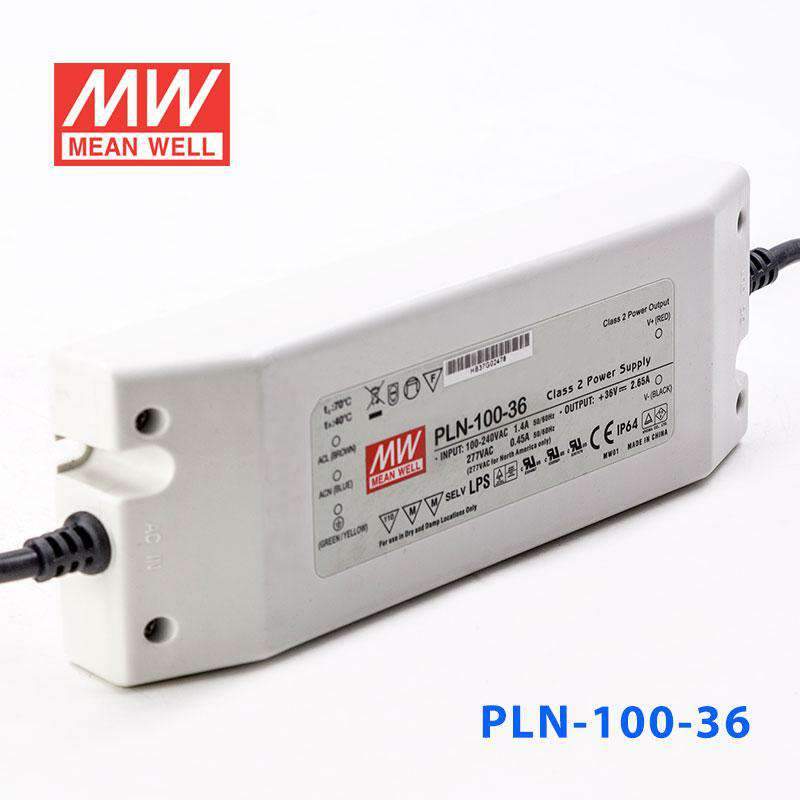

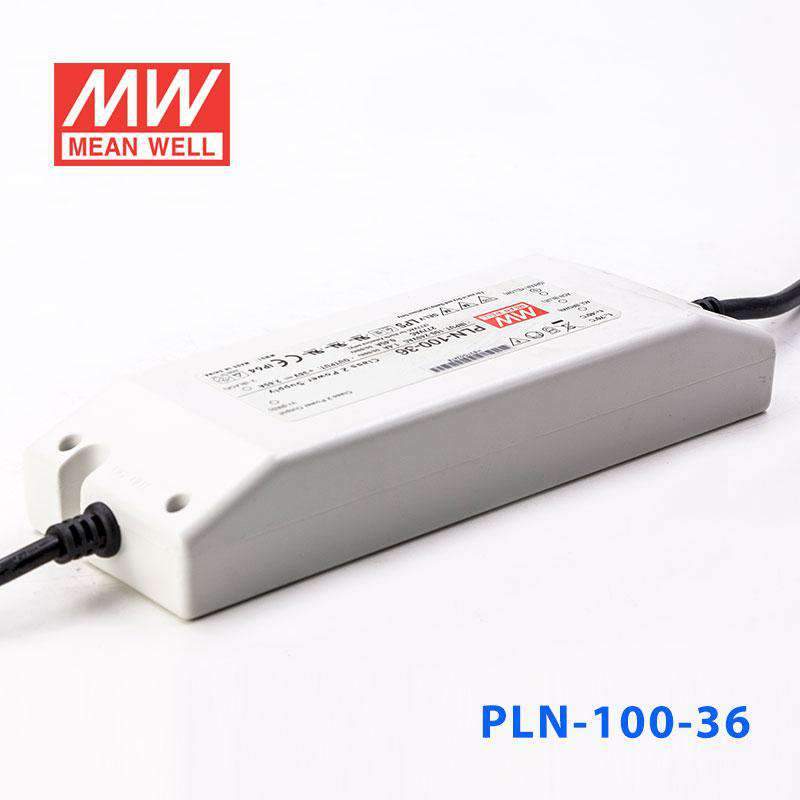

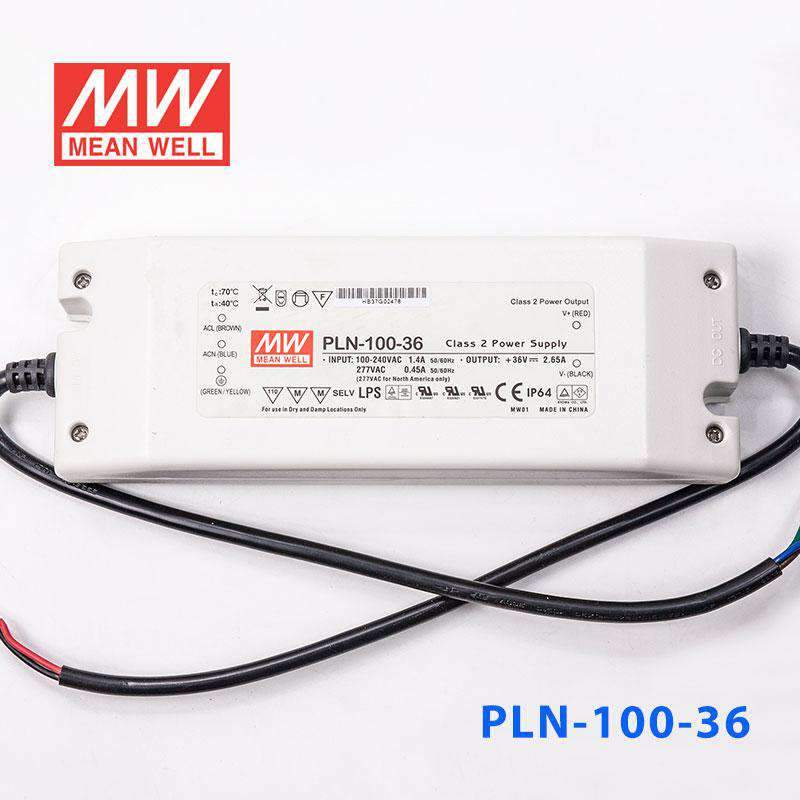

Mean Well PLN-100-36 Power Supply 100W 36V - IP64
The PLN-100 is a 100W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating95.4 Watt
-
Output Voltage36 Volt
-
Rated Current2.65 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.87 in
-
Width2.78 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
Can I use the PLN-100-36 for 36V LED signage lighting?
Yes, this driver is stated to be suitable for signage applications and provides 36V output up to 95.4W and 2.65A. It should be paired only with 36V lighting loads that stay within that output capacity.
Is the PLN-100-36 suitable for 36V LED strip or linear lighting?
It can be used for 36V LED strip or linear lighting if the load is rated for 36V and does not exceed 95.4W or 2.65A. The CC voltage range is 27-36V, so the lighting load needs to be compatible with that driver range.
Can this model power higher-voltage accent lighting where lower current is preferred?
It is a 36V option with a 2.65A output, so it suits lighting applications that are designed around a higher output voltage and lower current than the 12V, 15V, 20V, 24V, or 27V versions. The maximum output power is 95.4W.
How much 36V LED strip can the PLN-100-36 run?
The sizing formula is based on the 95.4W maximum output: length = 95.4W ÷ your strip's rated power per meter. Check your strip rated power per meter and confirm the total load stays within the 2.65A output limit.
Can the PLN-100-36 be used in outdoor or splash-exposed locations?
Its IP64 enclosure is designed for dust protection and splashing water resistance, so it is suitable for outdoor or wet-area use where the driver will not be submerged. The specified operating temperature range is -30°C to +50°C.
How does the PLN-100-36 compare with other PLN series drivers?
The matching PLN-100 siblings are 12V 60W 5A, 15V 75W 5A, 20V 96W 4.8A, 24V 96W 4A, 27V 95.85W 3.55A, and 48V 96W 2A. The broader PLN family also includes PLN-20, PLN-30, PLN-45, and PLN-60 variants covering 19.2W to 62.4W across multiple voltages.
