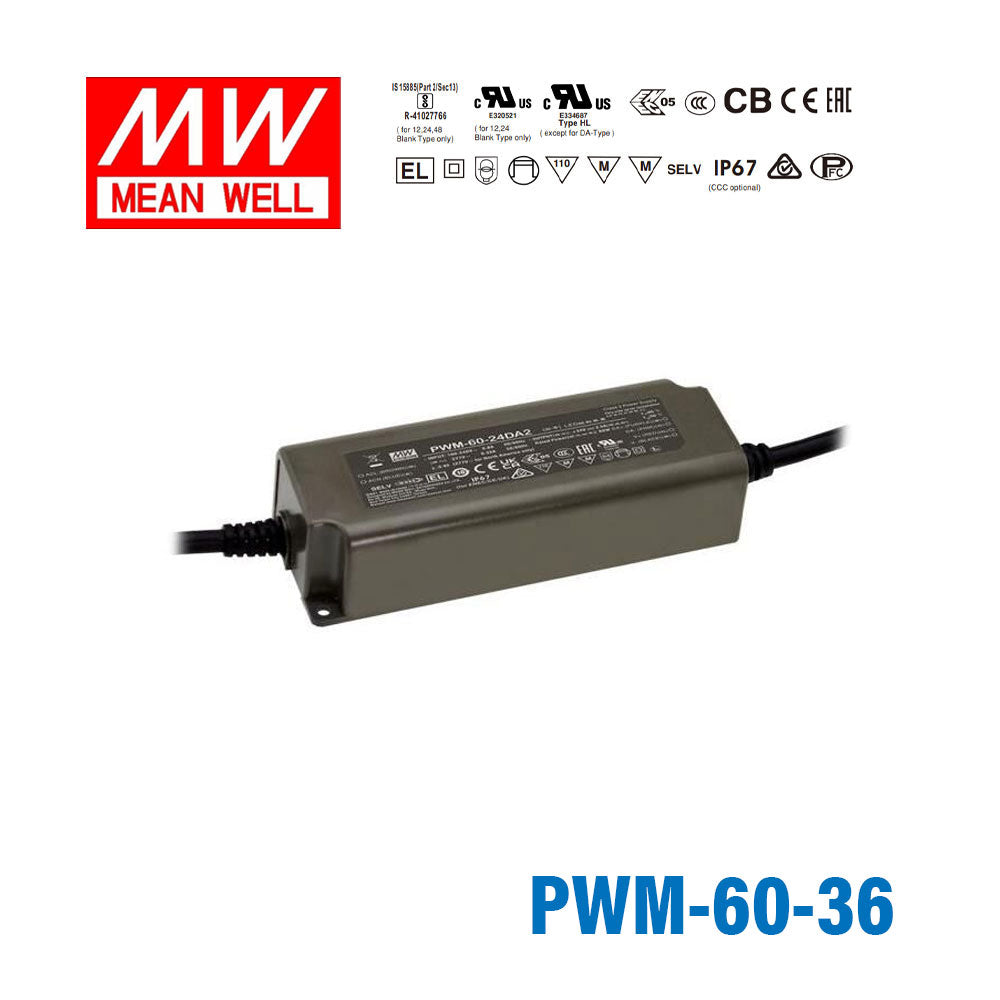

Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What LED strip systems typically use a 36V dimmable driver like the PWM-60-36?
36V LED strips are less common than 12V or 24V but are used in longer continuous runs where voltage drop would be a problem at lower voltages. The PWM-60-36 is suited to 36V architectural strip lighting, cove systems, and commercial display lighting where the strip manufacturer specifies 36V input.
Can the PWM-60-36 be installed outdoors or in a wet location?
Yes. The IP67 rating certifies the PWM-60-36 against dust and temporary immersion in water, making it suitable for outdoor enclosures, rain-exposed signage, or wet-location LED applications. It operates across -40°C to +85°C, covering most outdoor climate conditions.
How long a 36V LED strip can the PWM-60-36 power?
The PWM-60-36 outputs a maximum of 60W at 36V and 1.67A. For a 10 W/m strip, that is up to 6 meters; for a 20 W/m strip, up to 3 meters. Check your specific strip's rated wattage per meter and apply an 80% derating (48W) for continuous use.
Is the PWM-60-36 compatible with a wall-mounted 0–10V dimmer?
Yes. The built-in 3-in-1 dimming function supports 0–10V, PWM signal, and resistance dimming inputs, so a standard 0–10V wall dimmer will control brightness directly. This makes it straightforward to integrate into commercial or residential dimming systems.
Can I use the PWM-60-36 to drive 36V LED signage in a shopping centre?
Yes. The PWM-60-36's 60W output, IP67 protection, and 3-in-1 dimming make it appropriate for illuminated retail signage. Its Class II design without FG simplifies installation in plastic sign enclosures, and the 5-year warranty supports commercial deployment.
How does the 36V PWM-60-36 compare to the 24V and 48V options in the 60W PWM family?
All three share 60W output and IP67 protection in the same 150 × 53 × 35 mm housing. The PWM-60-24 outputs 2.5A at 24V; the PWM-60-36 outputs 1.67A at 36V; the PWM-60-48 outputs 1.25A at 48V. Select the voltage that matches your LED strip or load specification.
