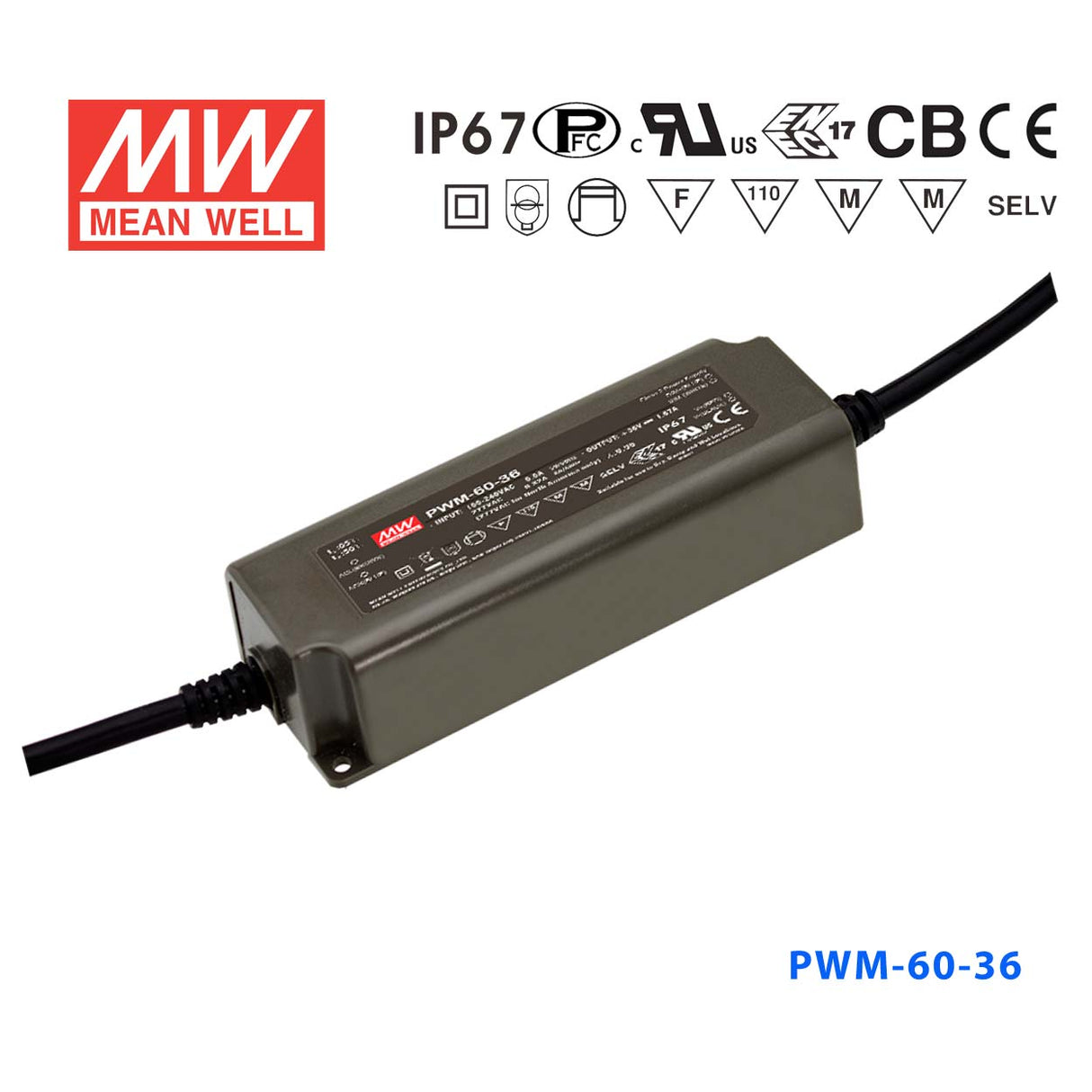

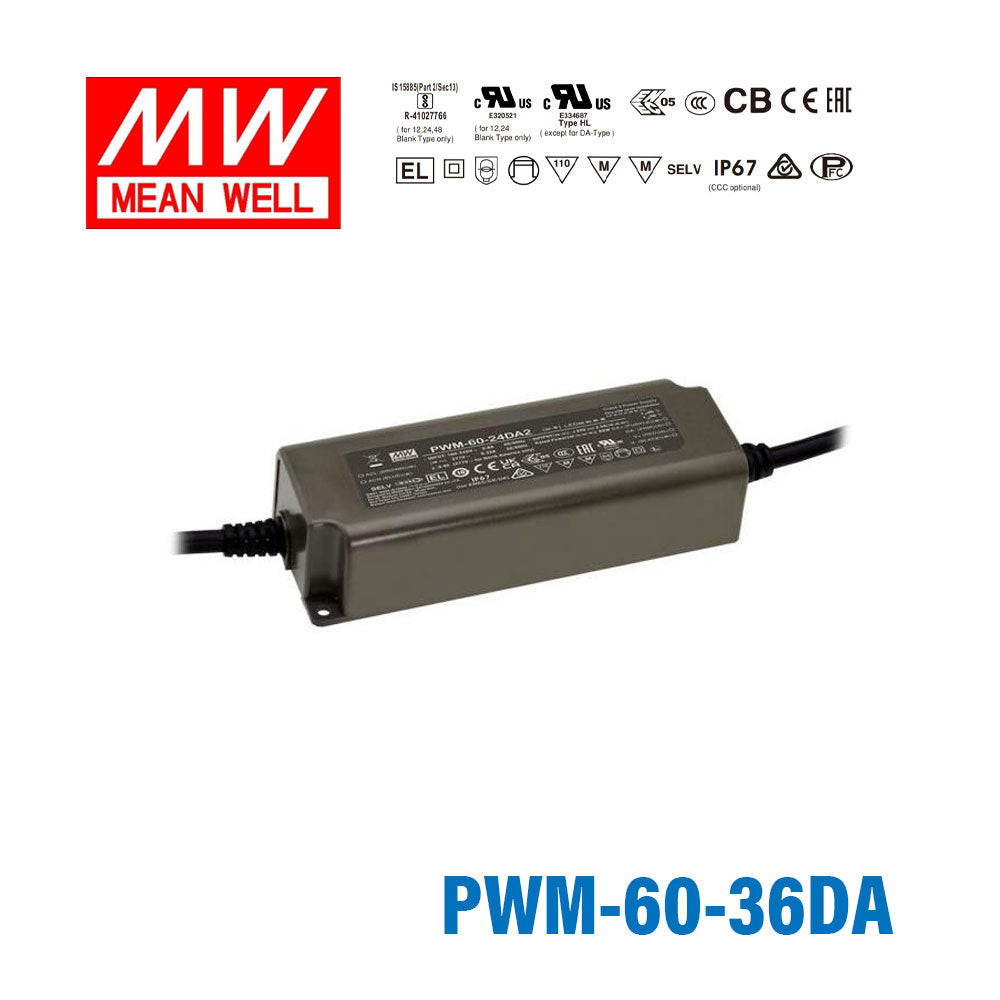

Mean Well PWM-60-36DA Power Supply 60W 36V - DALI
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-36DA Power Supply 60W 36V - DALI
Description
Description
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the PWM-60-36DA integrate into a DALI building management system for 36V lighting?
Yes. The PWM-60-36DA accepts DALI control signals, allowing individual addressing and dimming over a DALI bus at 36V output. This is useful in commercial buildings with centralised lighting control where 36V LED strips or luminaires are specified.
Is the PWM-60-36DA rated for outdoor or wet-area lighting projects?
Yes. The IP67 rating protects the driver against dust ingress and temporary water immersion, making it suitable for outdoor signage, facade lighting, or covered walkway installations. The -40°C to +85°C operating range covers most outdoor deployment conditions.
How much 36V LED strip can the PWM-60-36DA support?
Maximum output is 60W at 36V and 1.67A. A strip consuming 8 W/m allows up to 7.5 meters; a 15 W/m strip is limited to 4 meters. Always verify your strip's rated power per meter and derate to 80% load (48W) for continuous duty.
Can I use the PWM-60-36DA for DALI-controlled museum exhibit lighting at 36V?
Yes. DALI addressability combined with 36V constant voltage output suits precision-controlled display or exhibit lighting where scene programming and individual zone dimming are required. The Class II isolated plastic case simplifies mounting without an earth connection.
Does the PWM-60-36DA require a DALI power supply in addition to the mains input?
No. The PWM-60-36DA accepts standard mains input (90–305VAC) and the DALI signal comes from the DALI bus controller. The driver does not require a separate DALI power supply; only the DALI two-wire bus connection is needed alongside the AC mains.
Can the PWM-60-36DA be used for DALI-dimmed outdoor landscape lighting?
Yes. IP67 waterproofing and a wide operating temperature of -40°C to +85°C make this driver suitable for outdoor landscape applications with DALI-based scene control. Use it with a 36V outdoor-rated LED strip or fixture for a weatherproof, intelligently controlled installation.
