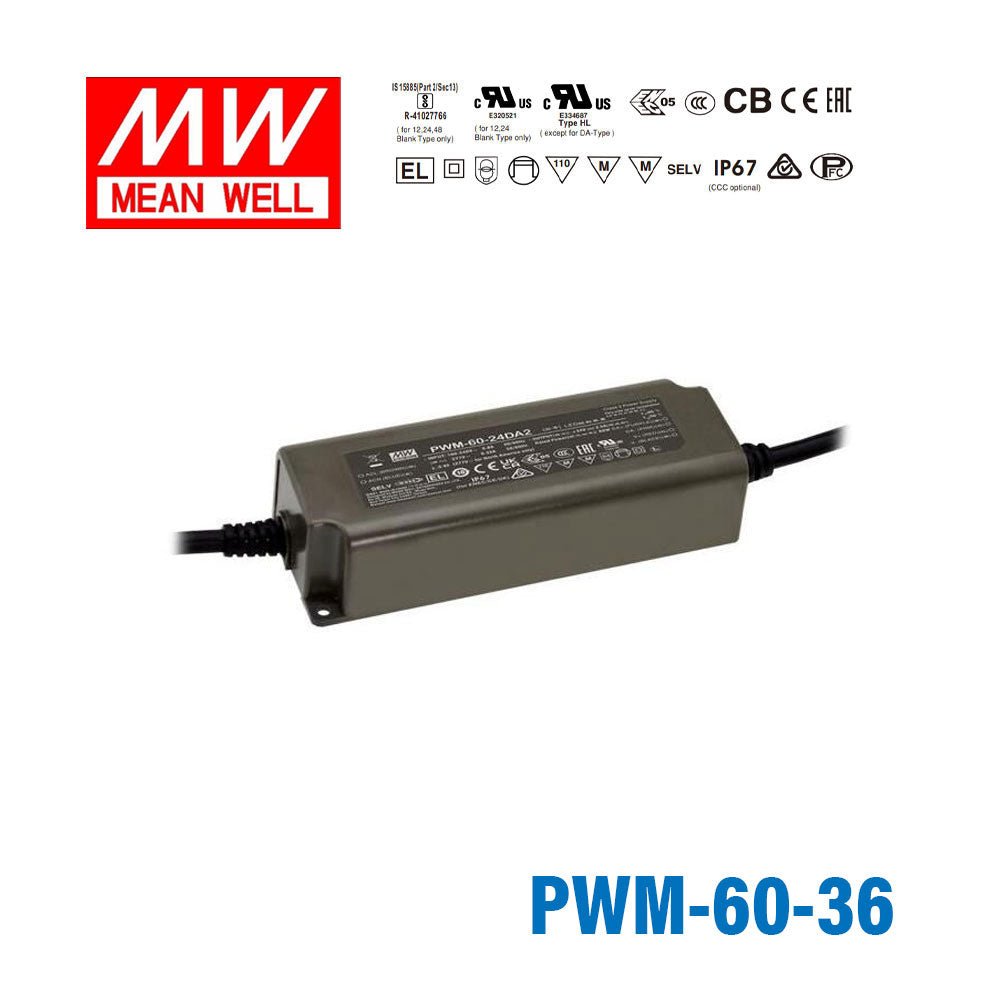

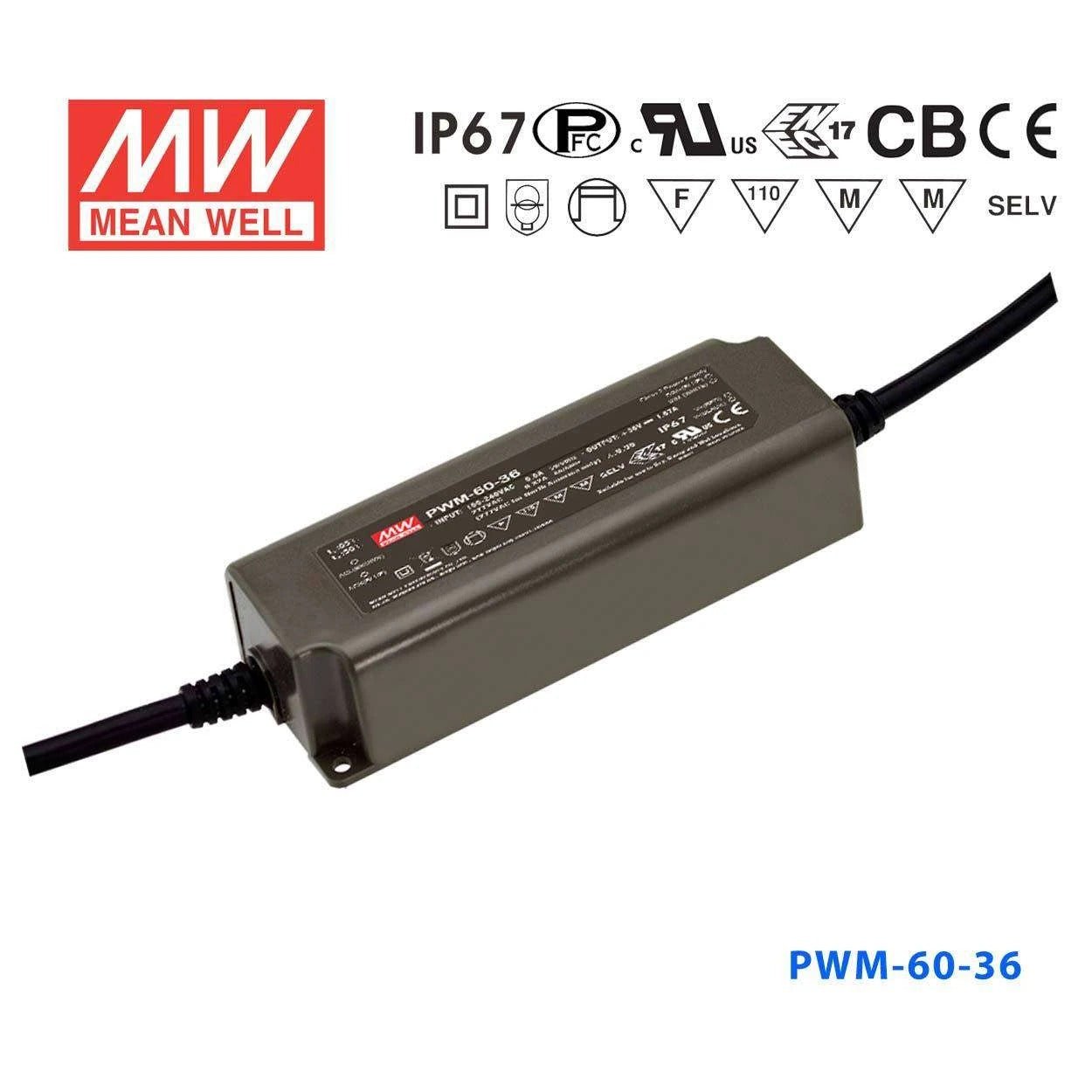

Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable
Description
Description
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What LED strip systems typically use a 36V dimmable driver like the PWM-60-36?
36V LED strips are less common than 12V or 24V but are used in longer continuous runs where voltage drop would be a problem at lower voltages. The PWM-60-36 is suited to 36V architectural strip lighting, cove systems, and commercial display lighting where the strip manufacturer specifies 36V input.
Can the PWM-60-36 be installed outdoors or in a wet location?
Yes. The IP67 rating certifies the PWM-60-36 against dust and temporary immersion in water, making it suitable for outdoor enclosures, rain-exposed signage, or wet-location LED applications. It operates across -40°C to +85°C, covering most outdoor climate conditions.
How long a 36V LED strip can the PWM-60-36 power?
The PWM-60-36 outputs a maximum of 60W at 36V and 1.67A. For a 10 W/m strip, that is up to 6 meters; for a 20 W/m strip, up to 3 meters. Check your specific strip's rated wattage per meter and apply an 80% derating (48W) for continuous use.
Is the PWM-60-36 compatible with a wall-mounted 0–10V dimmer?
Yes. The built-in 3-in-1 dimming function supports 0–10V, PWM signal, and resistance dimming inputs, so a standard 0–10V wall dimmer will control brightness directly. This makes it straightforward to integrate into commercial or residential dimming systems.
Can I use the PWM-60-36 to drive 36V LED signage in a shopping centre?
Yes. The PWM-60-36's 60W output, IP67 protection, and 3-in-1 dimming make it appropriate for illuminated retail signage. Its Class II design without FG simplifies installation in plastic sign enclosures, and the 5-year warranty supports commercial deployment.
How does the 36V PWM-60-36 compare to the 24V and 48V options in the 60W PWM family?
All three share 60W output and IP67 protection in the same 150 × 53 × 35 mm housing. The PWM-60-24 outputs 2.5A at 24V; the PWM-60-36 outputs 1.67A at 36V; the PWM-60-48 outputs 1.25A at 48V. Select the voltage that matches your LED strip or load specification.
