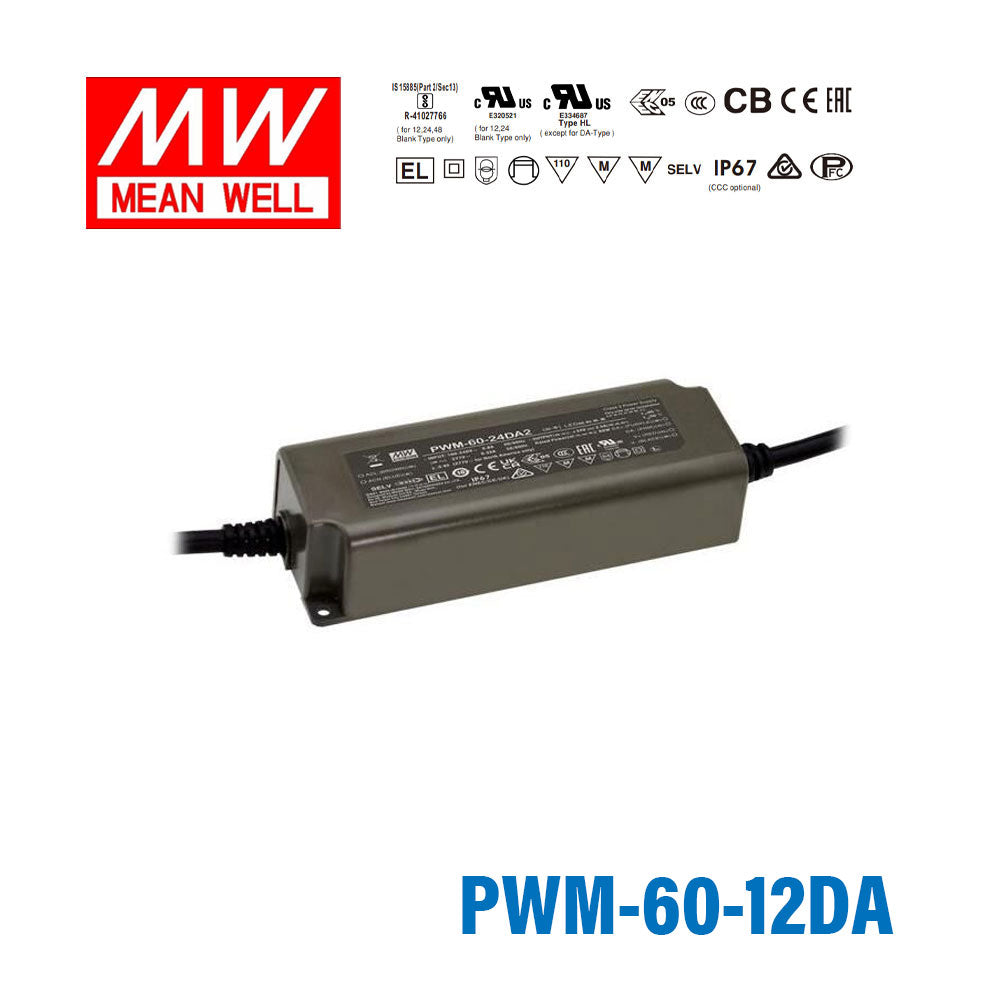

Mean Well PWM-60-12DA Power Supply 60W 12V - DALI 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-12DA Power Supply 60W 12V - DALI 5A
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Can the PWM-60-12DA be installed in outdoor or wet-area lighting applications?
Yes. The PWM-60-12DA carries an IP67 rating, protecting it from dust and temporary water immersion. Its -40°C to +85°C operating temperature range makes it suitable for outdoor enclosures, exterior signage, and covered wet-location fixtures.
How much 12V LED strip can the PWM-60-12DA drive?
The PWM-60-12DA provides up to 60W at 12V and 5A. To estimate maximum run length, divide 60W by your strip's rated watts per meter — for example, an 8W/m strip supports approximately 7.5 meters. Always verify your strip's actual rated power per meter.
Is the PWM-60-12DA suitable for DALI-controlled 12V LED strip in a commercial lighting system?
Yes. The PWM-60-12DA implements DALI protocol, allowing it to be addressed and dimmed from a DALI lighting control system. This makes it appropriate for commercial office, retail, or hospitality 12V LED installations where centralized DALI control is specified.
Can the PWM-60-12DA power 12V LED strips in an architectural facade or exterior signage application?
Yes. The IP67-rated housing and outdoor-rated operating temperature allow the PWM-60-12DA to be mounted in exterior signage enclosures or behind facade cladding for dimmable 12V LED strip lighting. DALI control allows the lighting level to be adjusted from a building management system.
Is the PWM-60-12DA appropriate for use in museum or gallery accent lighting requiring precise dimming?
Yes. DALI-controlled LED drivers like the PWM-60-12DA allow individual or group addressing and smooth dimming curves, which are valuable in museum and gallery settings where precise, flicker-free light level control is needed for exhibit accent lighting.
What is the difference between the PWM-60-12DA and the PWM-60-12DA2?
The PWM-60-12DA supports DALI (first generation), while the PWM-60-12DA2 supports DALI-2, which adds enhanced device discovery, query commands, and backward compatibility improvements. The DA2 also accepts a wider input voltage range starting at 12VAC, compared to 90VAC minimum for the DA. Both output 60W at 12V and 5A.
