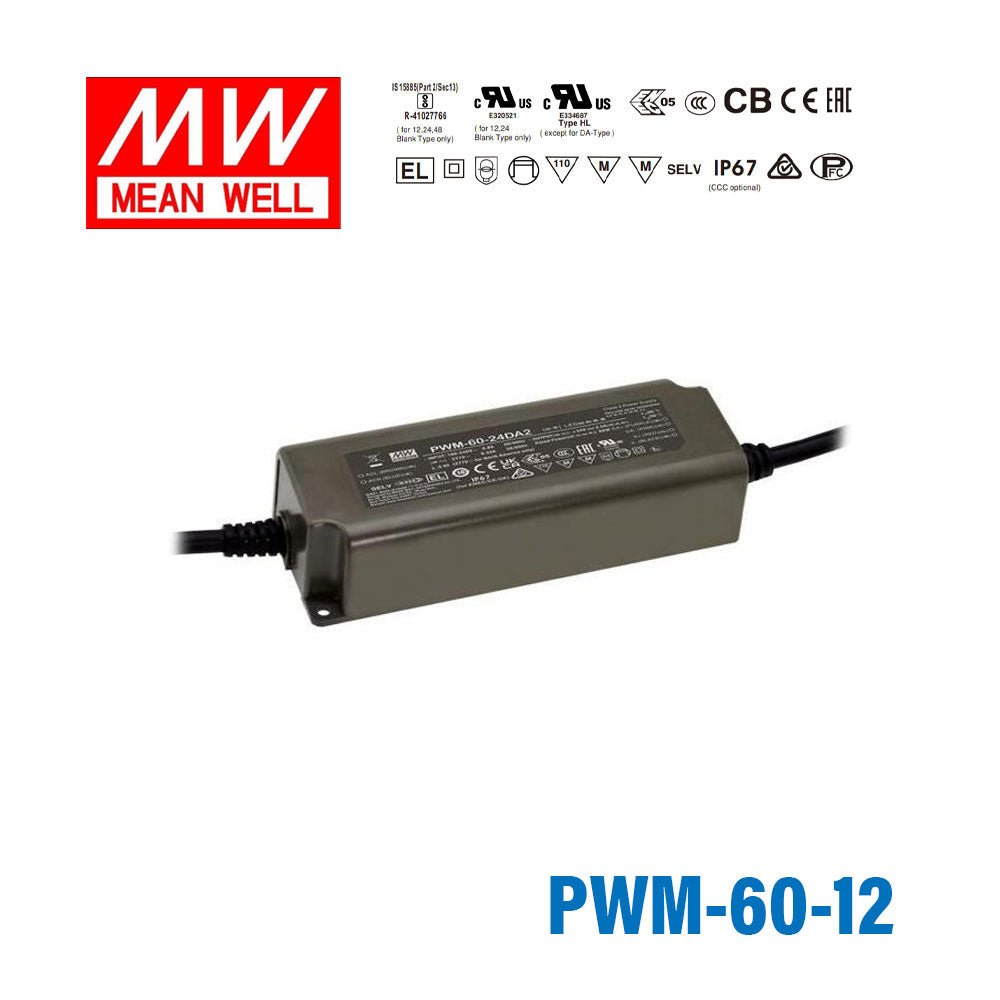

Mean Well PWM-60-12 Power Supply 60W 12V - Dimmable 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-12 Power Supply 60W 12V - Dimmable 5A
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Can the PWM-60-12 be used to power 12V LED strips in outdoor or wet locations?
Yes. The PWM-60-12 is rated IP67, providing full dust protection and resistance to temporary water immersion. Combined with an operating range of -40°C to +85°C, it is suitable for outdoor enclosures, covered walkway lighting, and wet-rated fixture installations.
How long a 12V LED strip run can the PWM-60-12 support?
The PWM-60-12 delivers up to 60W at 12V. Divide 60W by your strip's rated watts per meter to estimate maximum run length — for example, a 10W/m strip supports up to 6 meters. Check your specific strip's rated power per meter to confirm the right run length.
Is the PWM-60-12 suitable for powering dimmable 12V LED strip in retail display cases?
Yes. The built-in 3-in-1 dimming supports 0–10V, PWM signal, and resistance dimming, allowing smooth brightness control for retail display case lighting. At 60W and 5A, it can drive moderate-length 12V strip runs in showcase and cabinet applications.
Can I use the PWM-60-12 for 12V LED lighting in a food service or commercial kitchen environment?
Yes. The IP67 waterproof housing makes the PWM-60-12 resistant to cleaning spray and steam splatter typical in food service environments. Its fully isolated plastic case with no FG requirement also simplifies installation in non-metallic fixture housings.
Is the PWM-60-12 a good fit for powering 12V LED strip in a pergola or outdoor entertainment area?
Yes. The IP67 rating and -40°C to +85°C operating temperature make the PWM-60-12 appropriate for pergola and outdoor entertainment lighting exposed to rain and temperature swings. Its 60W output is sufficient for several meters of decorative or task-oriented 12V strip.
How does the PWM-60-12 differ from the PWM-60-12DA, PWM-60-12DA2, and PWM-60-12KN?
All four share 60W output at 12V and 5A (except the KN at 2.5A). The PWM-60-12 uses 3-in-1 dimming (0–10V, PWM, resistance). The PWM-60-12DA adds DALI protocol support. The PWM-60-12DA2 adds DALI-2 protocol support with a wider input range starting at 12VAC. The PWM-60-12KN integrates KNX dimming without requiring a separate KNX-DALI gateway.
