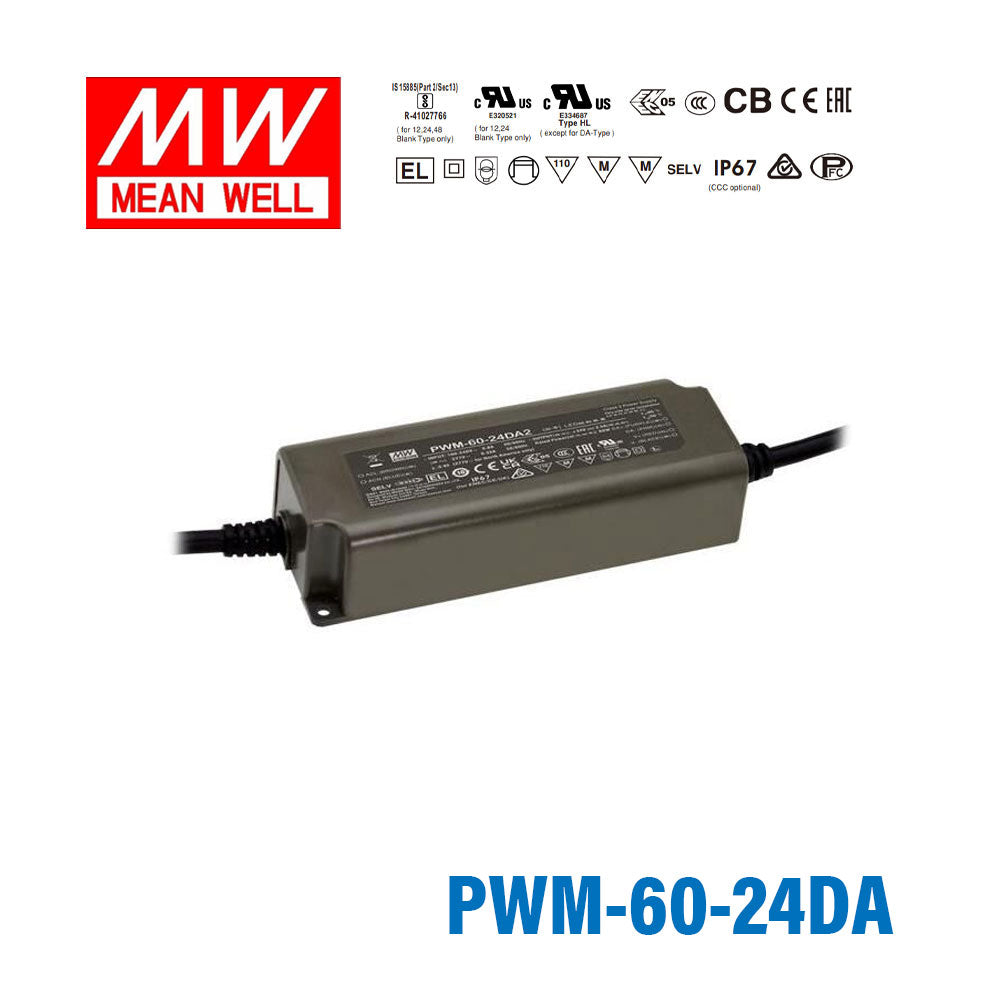

Mean Well PWM-60-24DA Power Supply 60W 24V - DALI 2.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-24DA Power Supply 60W 24V - DALI 2.5A
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Can I use the PWM-60-24DA in a DALI smart lighting system?
Yes. The PWM-60-24DA includes a DALI (Digital Addressable Lighting Interface) input, allowing it to be addressed and dimmed individually over a DALI bus. This makes it suitable for intelligent building lighting systems and zone-controlled commercial LED installations at 24V.
Is the PWM-60-24DA suitable for outdoor LED display panels?
Yes. With an IP67 waterproof rating, the PWM-60-24DA can be installed in outdoor environments exposed to rain and moisture. Its -40°C to +85°C operating range and DALI dimming support make it a strong choice for remotely controlled outdoor LED signage.
Can the PWM-60-24DA power a dimmable 24V LED strip in a retail display?
Yes. Retail display lighting at 24V with DALI-based dimming control is a well-suited application. The driver outputs up to 60W at 2.5A, which is enough to run moderate-length 24V LED strips. DALI allows the strip brightness to be adjusted from a central controller without additional dimmer hardware at the fixture.
How much 24V LED strip can the PWM-60-24DA support?
The PWM-60-24DA has a maximum output of 60W. Divide that by your strip's power draw per meter to calculate maximum length — a 10 W/m strip could run up to 6 meters, while a 20 W/m strip is limited to about 3 meters. Apply an 80% derating rule for continuous use, reducing usable capacity to 48W.
Does the PWM-60-24DA need an earth ground in the enclosure?
No. Like all PWM series drivers, the PWM-60-24DA features a Class II design without a functional ground (FG), so no earth connection is needed. This is particularly useful when mounting inside plastic weatherproof enclosures.
What is the difference between the PWM-60-24DA and PWM-60-24DA2?
Both are 60W, 24V, 2.5A IP67 drivers in the same physical housing. The PWM-60-24DA uses the original DALI protocol, while the PWM-60-24DA2 supports the newer DALI2 standard, which offers improved interoperability and device query capabilities. Choose DA2 if your DALI controller or luminaires require DALI2 compliance.
