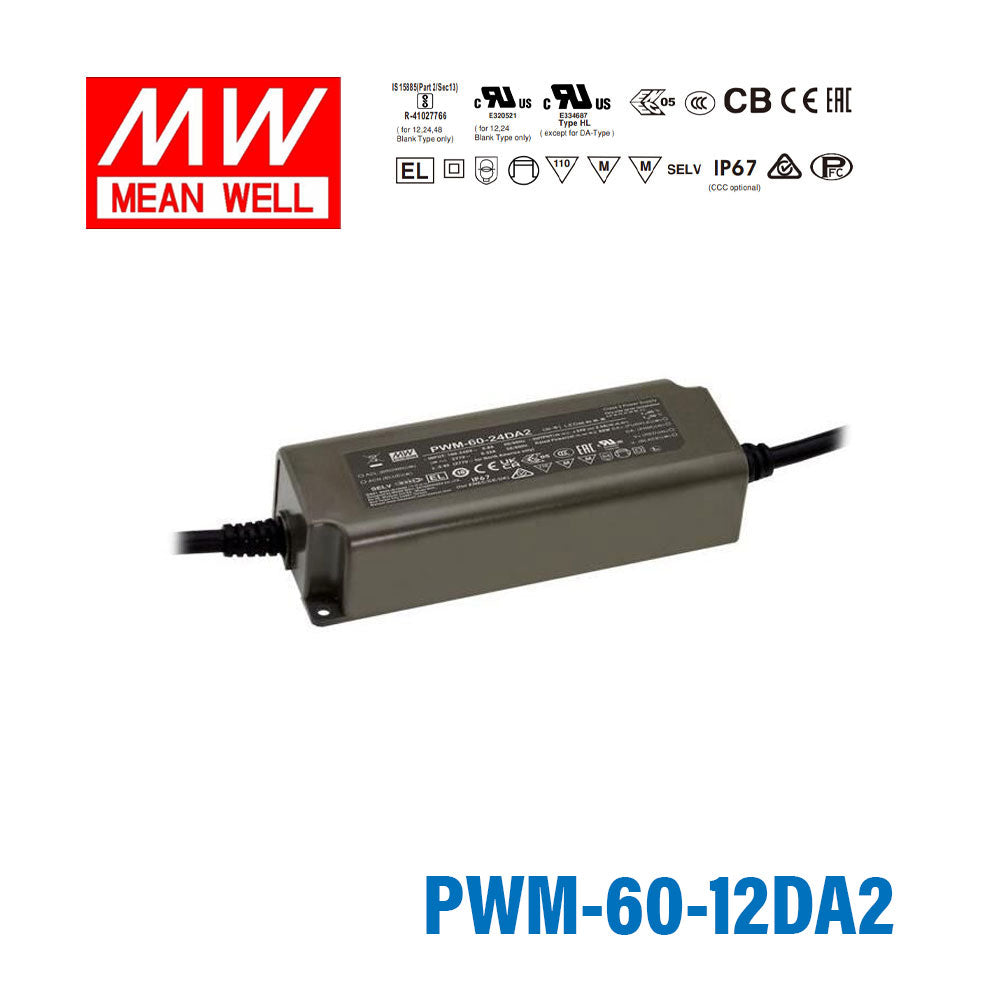

Mean Well PWM-60-12DA2 Power Supply 60W 12V DALI2 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-12DA2 Power Supply 60W 12V DALI2 5A
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage12V~305V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Can the PWM-60-12DA2 be used in outdoor or moisture-exposed lighting installations?
Yes. The PWM-60-12DA2 is rated IP67 for complete dust protection and resistance to temporary water immersion. Its -40°C to +85°C operating temperature allows outdoor installation in a wide range of climates.
How long a 12V LED strip run can the PWM-60-12DA2 power?
The PWM-60-12DA2 provides 60W at 12V and 5A. Divide 60W by your strip's power per meter to estimate maximum length — for instance, a 12W/m strip supports up to 5 meters. Always confirm the actual rated watts per meter for your specific strip.
Is the PWM-60-12DA2 suitable for a DALI-2 building automation system controlling 12V LED strip?
Yes. The PWM-60-12DA2 is DALI-2 compliant, supporting enhanced device discovery, bidirectional communication, and standardized query commands required by modern DALI-2 controllers. It integrates into building automation systems that specify DALI-2 for lighting control.
Can the PWM-60-12DA2 operate on low AC input voltages, such as those found in some generator or UPS systems?
Yes. Unlike most units in the series, the PWM-60-12DA2 accepts input as low as 12VAC (range 12–305VAC), making it compatible with low-voltage AC sources, certain UPS outputs, and step-down transformer systems that do not reach standard 90VAC minimums.
Is the PWM-60-12DA2 appropriate for 12V LED strip in a smart commercial office with centralized lighting control?
Yes. DALI-2 support allows the PWM-60-12DA2 to be grouped, addressed, and dimmed individually by a DALI-2 lighting controller, making it suitable for open-plan offices, conference rooms, and retail spaces requiring scene-based or occupancy-responsive 12V LED lighting.
How does the PWM-60-12DA2 differ from the standard PWM-60-12 and the PWM-60-12DA?
The PWM-60-12 uses 3-in-1 dimming (0–10V, PWM, resistance) and accepts 90–305VAC input. The PWM-60-12DA adds first-generation DALI control with the same 90VAC minimum input. The PWM-60-12DA2 upgrades to DALI-2 and widens the input range to 12–305VAC. All three output 60W at 12V and 5A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PWM-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PWM-60-24 Power Supply 60W 24V - Dimmable 2.5A | 60W | 24V | 2.5A | IP67 | $30.83 | View |
| Mean Well PWM-60-12 Power Supply 60W 12V - Dimmable 5A | 60W | 12V | 5A | IP67 | $30.83 | View |
| Mean Well PWM-60-48 Power Supply 60W 48V - Dimmable 1.25A | 60W | 48V | 1.25A | IP67 | $32.32 | View |
| Mean Well PWM-60-24DA2 Power Supply 60W 24V DALI2 2.5A | 60W | 24V | 2.5A | IP67 | $45.57 | View |
| Mean Well PWM-60-36DA Power Supply 60W 36V - DALI 1.67A | 60W | 36V | 1.67A | IP67 | $39.44 | View |
| Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable 1.67A | 60W | 36V | 1.67A | IP67 | $32.74 | View |
| Mean Well PWM-60-24DA Power Supply 60W 24V - DALI 2.5A | 60W | 24V | 2.5A | IP67 | $39.06 | View |
| Mean Well PWM-60-12DA Power Supply 60W 12V - DALI 5A | 60W | 12V | 5A | IP67 | $39.06 | View |
