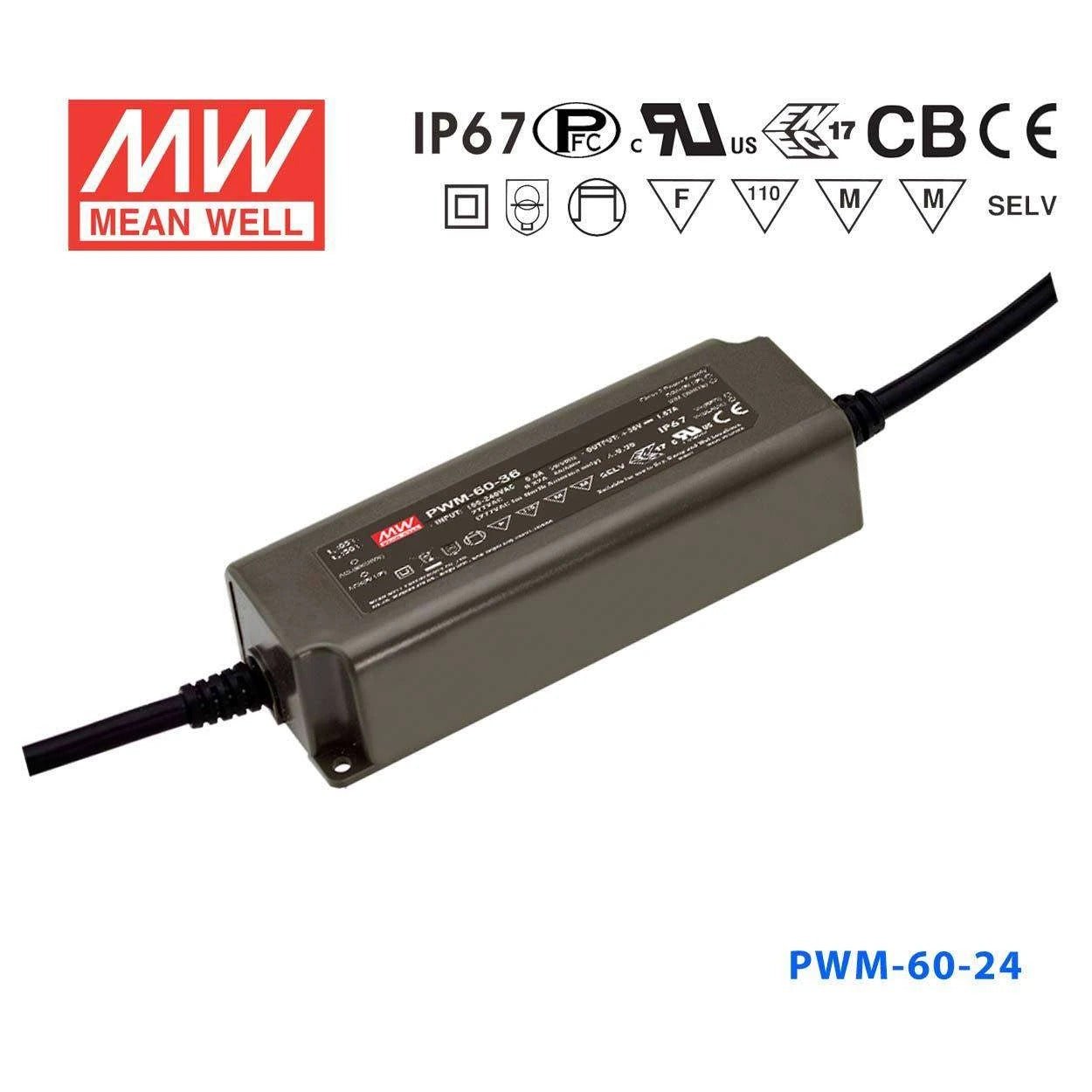

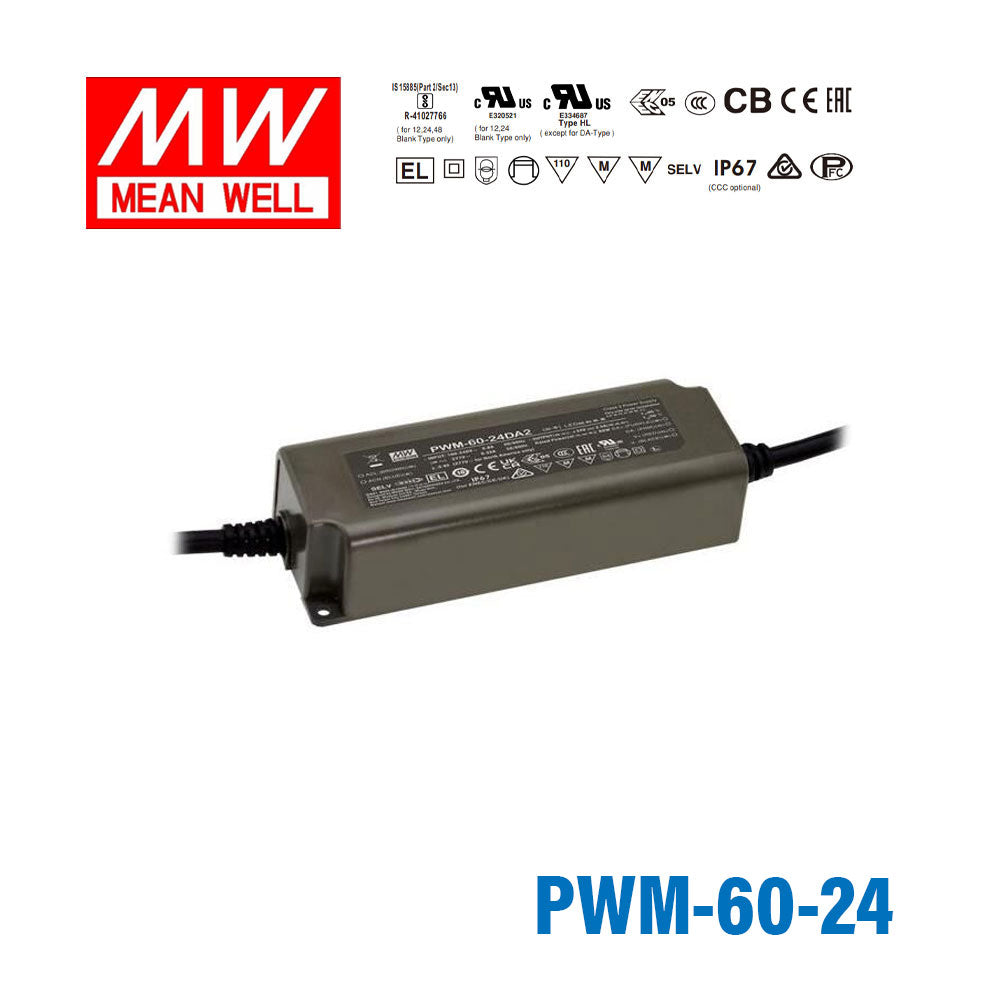

Mean Well PWM-60-24 Power Supply 60W 24V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-60-24 Power Supply 60W 24V - Dimmable
Description
Description
The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PWM-60-24 to power outdoor LED strip lighting?
Yes. The PWM-60-24 carries an IP67 waterproof rating, meaning it is protected against temporary immersion and can handle rain, splashing, and outdoor moisture exposure. Pair it with a 24V LED strip rated for outdoor use for a fully weatherproof installation.
Is the PWM-60-24 suitable for dimmable LED signage?
Yes. This driver features a built-in 3-in-1 dimming interface supporting 0–10V, PWM signal, and resistance dimming methods. Its PWM-style output makes it well-suited for dimmable LED sign cabinets and backlit displays running on 24V.
Can I use the PWM-60-24 for architectural cove lighting with a wall dimmer?
Yes. The built-in 3-in-1 dimming allows integration with standard 0–10V or PWM-compatible wall dimmers, making it a practical choice for architectural cove or accent lighting at 24V. Ensure your dimmer outputs a compatible signal for smooth dimming performance.
How much 24V LED strip can the PWM-60-24 power?
The PWM-60-24 delivers a maximum of 60W at 24V. To find the maximum strip length, divide 60W by your strip's rated wattage per meter — for example, a 14.4 W/m strip supports up to approximately 4.1 meters. Always derate to 80% load (48W effective) for continuous operation, which gives around 3.3 meters for the same strip.
Can the PWM-60-24 operate in very cold environments like outdoor signage cabinets in winter?
Yes. The PWM-60-24 is rated for an operating temperature range of -40°C to +85°C, making it suitable for harsh cold-weather installations. Its fully isolated plastic case and IP67 rating also provide protection against moisture ingress in outdoor enclosures.
Does the PWM-60-24 require an earth ground connection?
No. The PWM-60-24 uses a Class II design without a functional ground (FG) connection, so no earth grounding is required. This simplifies installation in plastic enclosures or situations where a grounding path is unavailable.
How does the PWM-60-24 compare to other wattages in the PWM series?
The PWM series ranges from 40W to 200W across 12V, 24V, 36V, and 48V variants. The PWM-60-24 sits at 60W / 24V / 2.5A; nearby 24V options include the PWM-40-24 (40W, 1.67A), PWM-90-24 (90W, 3.75A), PWM-120-24 (120W, 5A), and PWM-200-24 (200W, 8.3A). Choose based on total load wattage.
Other PWM-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PWM-60-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $30.83 | View |
| Mean Well PWM-60-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | $30.93 | View |
| Mean Well PWM-60-24DA2 Power Supply 60W 24V DALI2 | 60W | 24V | 2.5A | IP67 | $45.57 | View |
| Mean Well PWM-60-36DA Power Supply 60W 36V - DALI | 60W | 36V | 1.67A | IP67 | $39.44 | View |
| Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable | 60W | 36V | 1.67A | IP67 | $32.74 | View |
| Mean Well PWM-60-24DA Power Supply 60W 24V - DALI | 60W | 24V | 2.5A | IP67 | $39.06 | View |
| Mean Well PWM-60-12DA2 Power Supply 60W 12V DALI2 | 60W | 12V | 5A | IP67 | $39.06 | View |
| Mean Well PWM-60-12DA Power Supply 60W 12V - DALI | 60W | 12V | 5A | IP67 | $39.06 | View |
