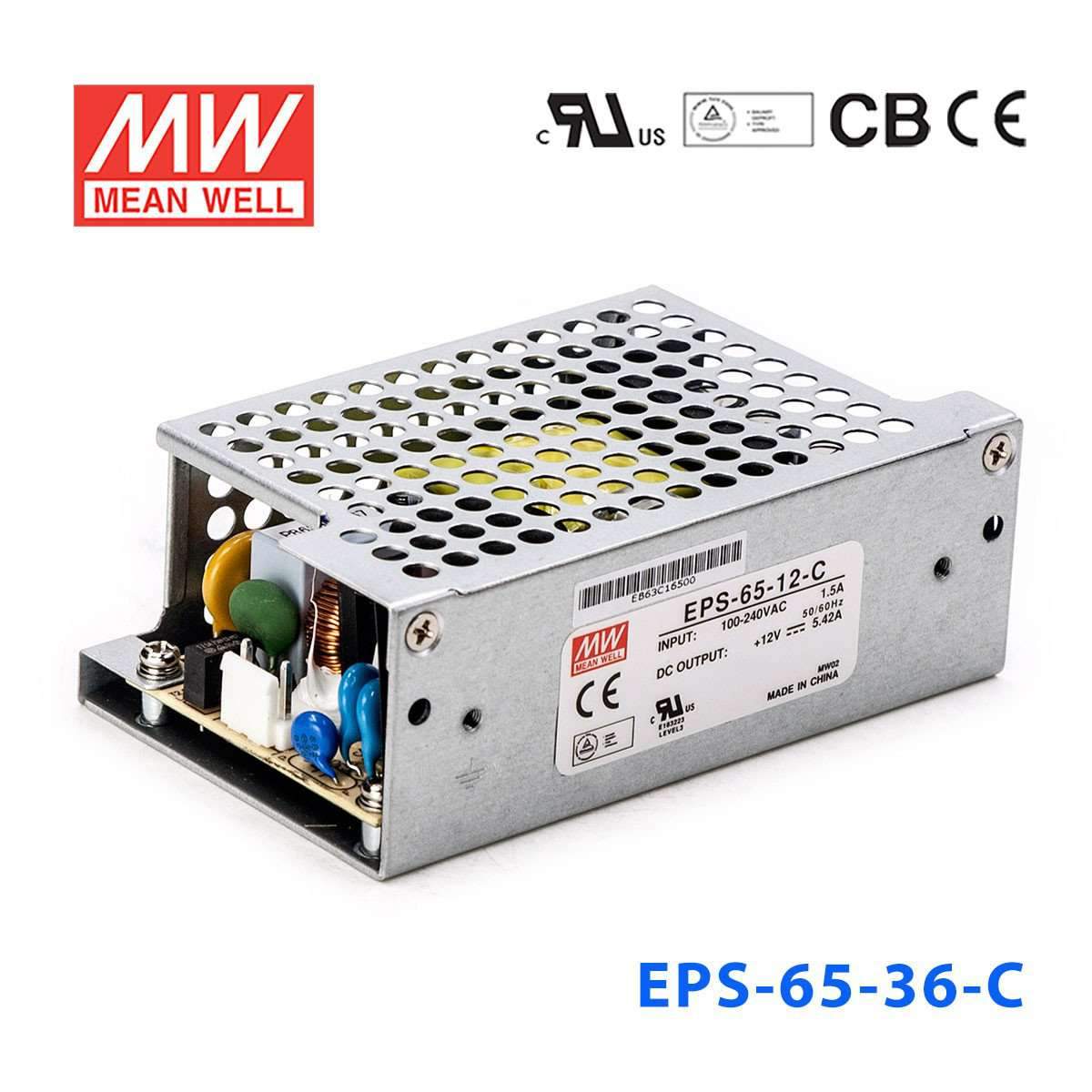

Mean Well EPS-65-36-C Power Supply 65W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-65-36-C Power Supply 65W 36V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
| Case available |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~160% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~135% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+4P/3.96mm pitch, JST B3P/B4P-VH |
| Dimension (LxWxH) | PCB: 101.6x50.8x29 ; Case: 103.4x62x37 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.16 Watt
-
Output Voltage36 Volt
-
Rated Current1.81 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the EPS-65-36-C be used for 36V automation equipment in OEM builds?
Yes, for equipment that requires a constant 36V DC source and does not exceed 1.81A or 65.16W. It fits fixed-voltage 36V industrial electronics better than products that need a different output voltage.
Is this a good choice for 36V control panels or machine electronics?
It can be, as long as the electronics are rated for 36V constant-voltage input and the combined load remains within 65.16W. The wide 90-264VAC input is also useful where the AC source may vary by region or installation.
Can I use the EPS-65-36-C for 36V industrial instrumentation or monitoring hardware?
Yes, if the hardware is designed for a regulated 36V supply and draws no more than 1.81A. This model is intended for powering compatible 36V devices, not for stepping down to lower-voltage loads directly.
Is the EPS-65-36-C suitable for harsh environments?
Its operating temperature is specified at -30°C to +70°C, which supports use in demanding indoor environments. No IP rating is listed, so the specs do not support treating it as an exposed outdoor power supply.
What are the main differences between EPS-65-36-C and the other EPS 36V versions?
The listed 36V family options are EPS-15-36 at 15.12W and 0.42A, EPS-25-36 at 25.2W and 0.7A, EPS-35-36 at 36W and 1A, EPS-45-36 and EPS-45-36-C at 45W and 1.25A, and EPS-65-36 / EPS-65-36-C at 65.16W and 1.81A. EPS-65-36-C is also listed at 103.4 × 62.0 × 37.0 mm and 0.3 kg, while EPS-65-36 is 101.6 × 50.8 × 29.0 mm and 0.15 kg.
