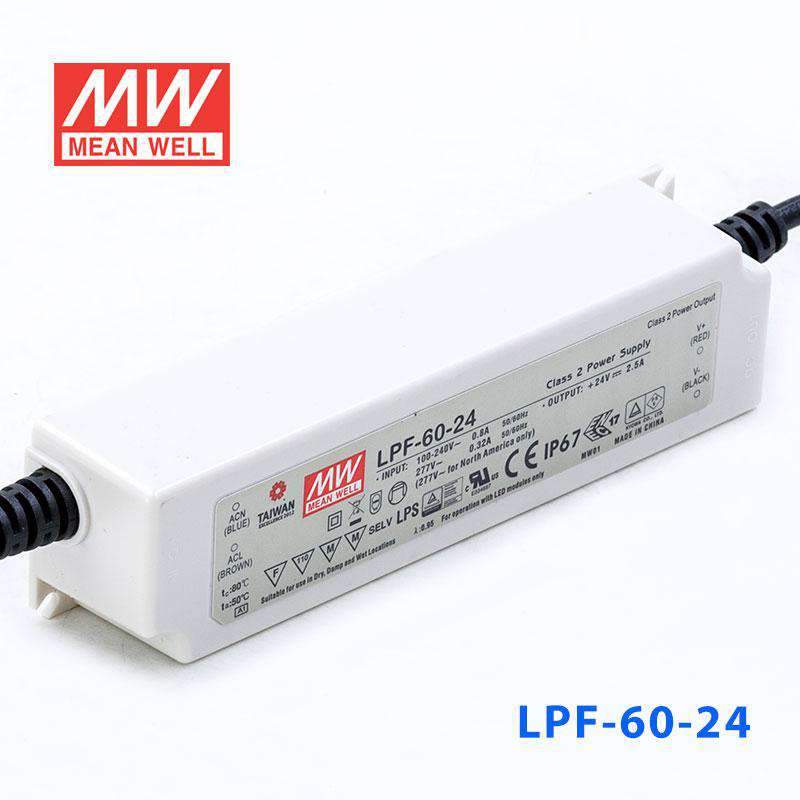

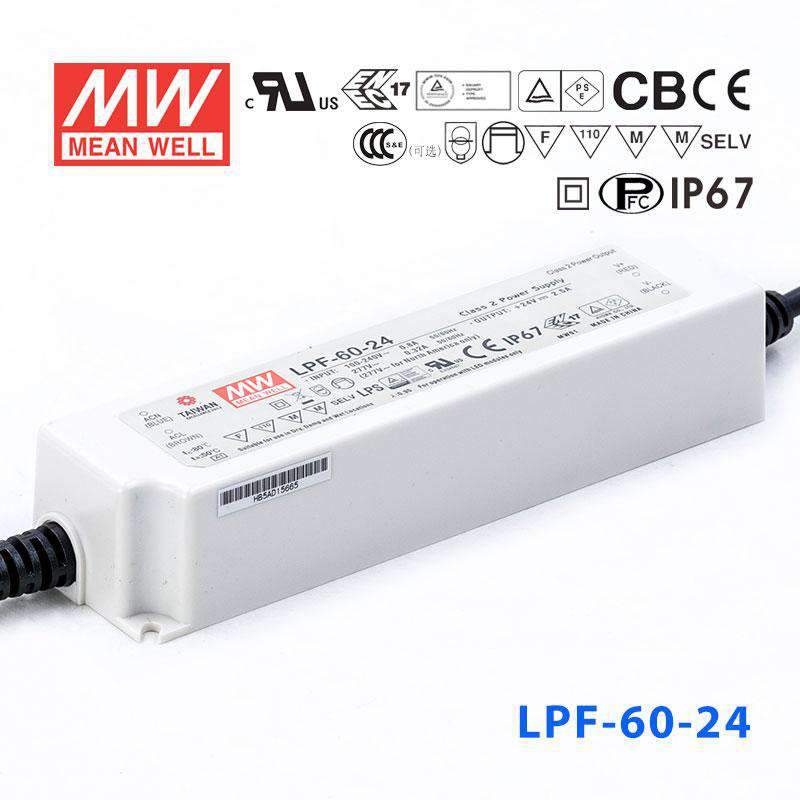

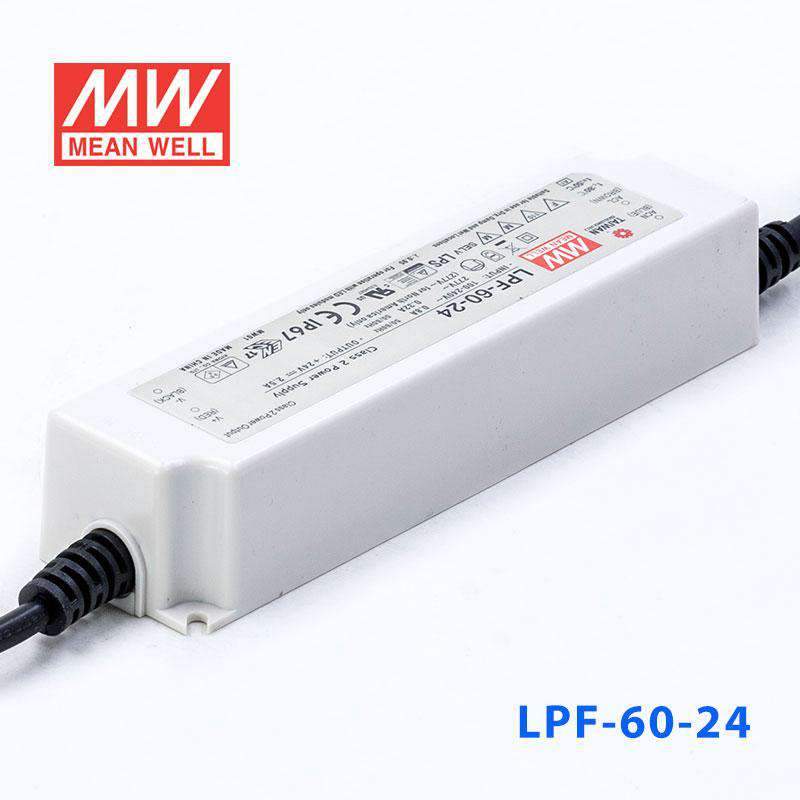

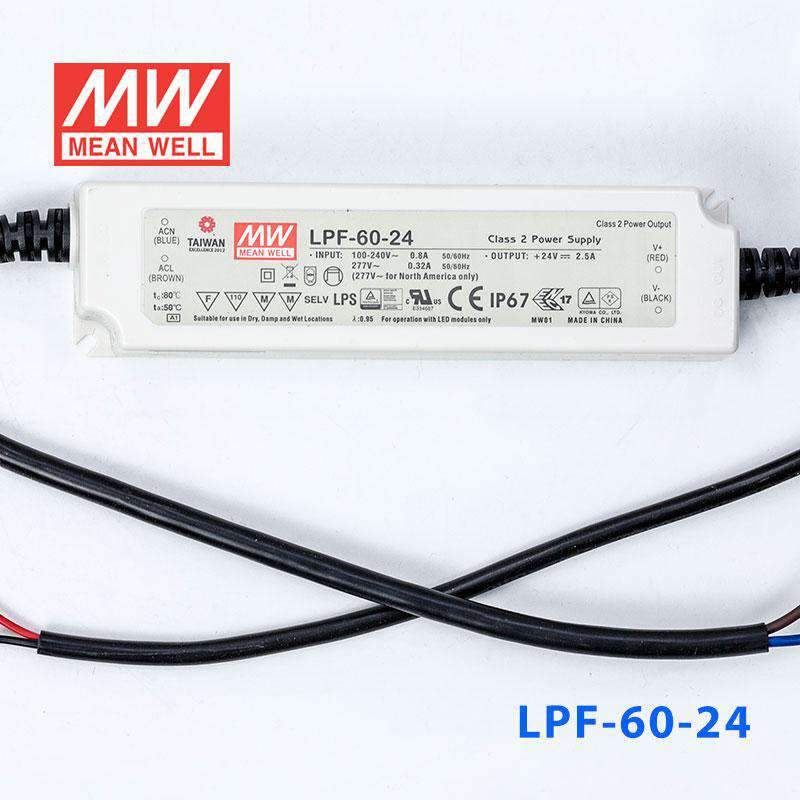

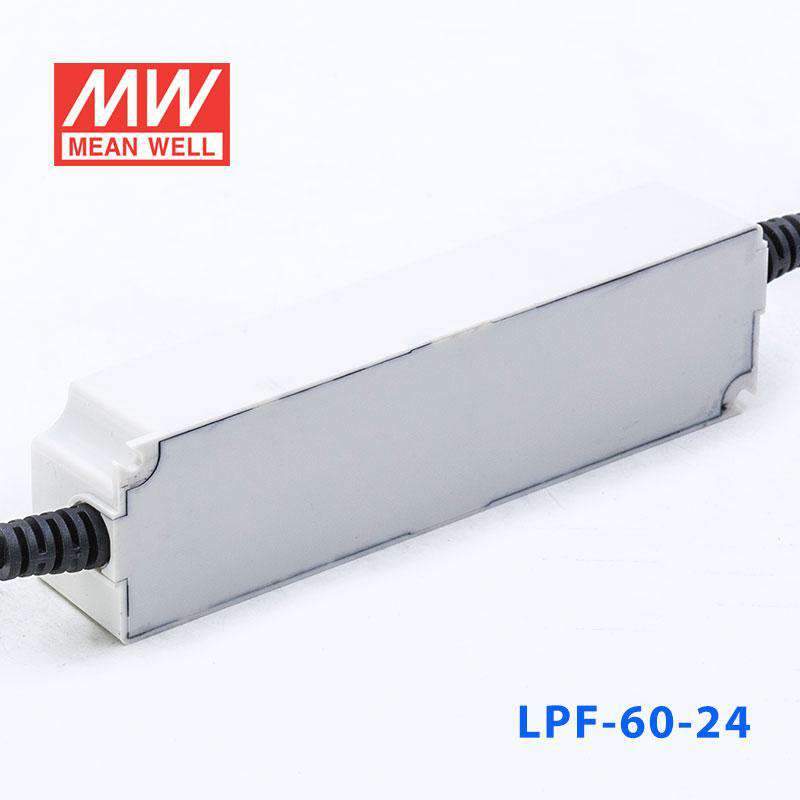

Mean Well LPF-60-24 Power Supply 60W 24V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 162.5x 43x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-24 with a 24V LED strip lighting product?
Yes, if the 24V lighting product is designed for constant current operation and stays within 60W and 2.5A. This driver has a 14-24V constant current range, so the load needs to be compatible with that operating mode.
Is the LPF-60-24 a fit for 24V sign lighting exposed to weather?
It can be a fit for 24V sign lighting when the connected modules are constant current and the total load does not exceed 60W or 2.5A. The IP67 rating is appropriate for outdoor and wet-location use where the driver may see rain or splashing water.
Can this driver be used for 24V architectural or facade lighting?
Yes, it can be used for 24V architectural lighting if the fixture or light engine is specified for constant current input within the 14-24V range. The -40°C to +80°C operating temperature range also supports demanding indoor or outdoor site conditions.
Would this work for a sealed lighting enclosure in a damp area?
This model is designed for damp and wet environments because it carries an IP67 waterproof rating. Its fully isolated plastic case can also be useful where a sealed driver body is preferred inside a protected enclosure.
How do I estimate the maximum 24V LED strip length for this driver?
The driver can supply up to 60W total at 24V, with a maximum output current of 2.5A. For strip length, use 60W / strip watts per meter; for example, if a strip is rated in W/m, divide 60W by that number, and check your strip rated power per meter before sizing.
How does the LPF-60-24 compare with the other LPF-60 voltage options?
The LPF-60 family steps through 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. LPF-60D models mirror those same output ratings in the D-series.
