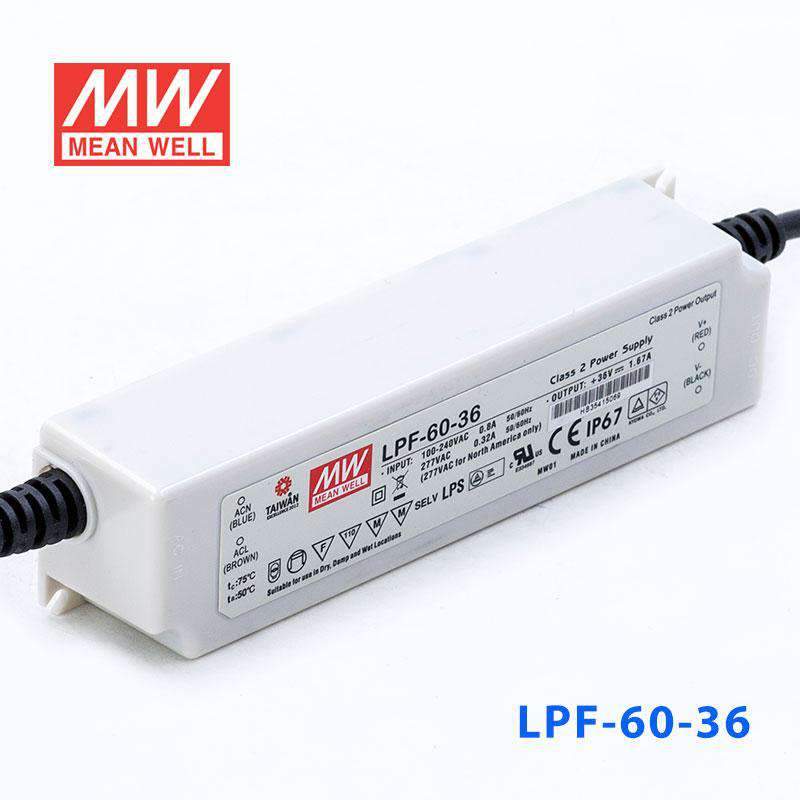

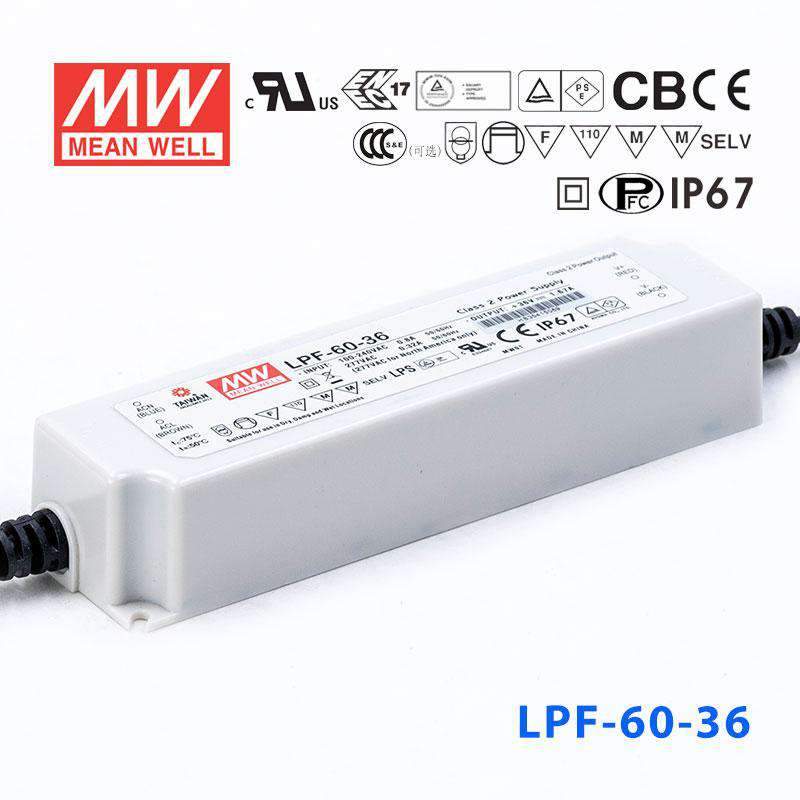

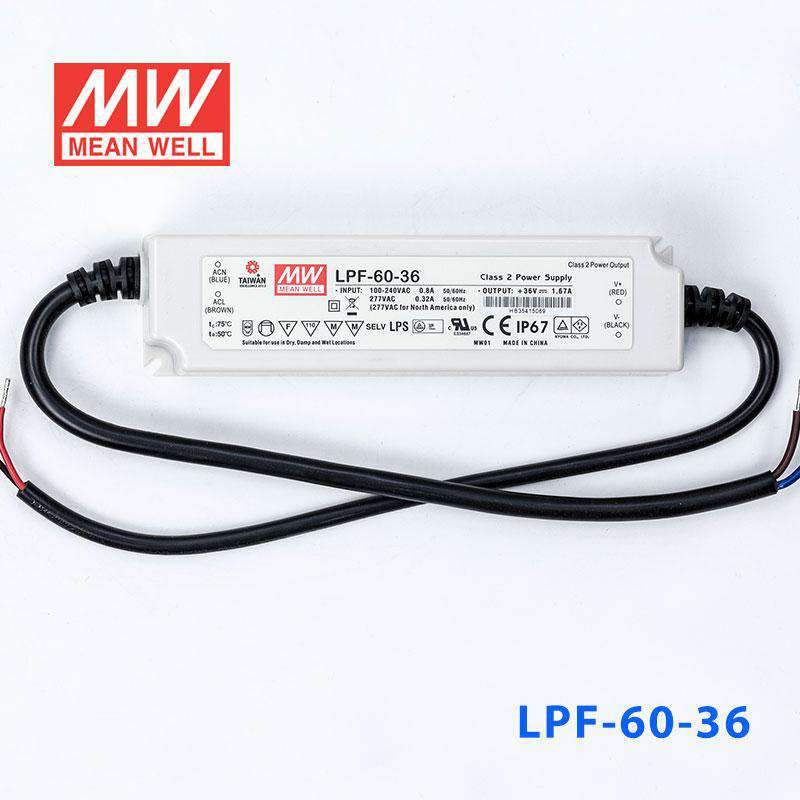

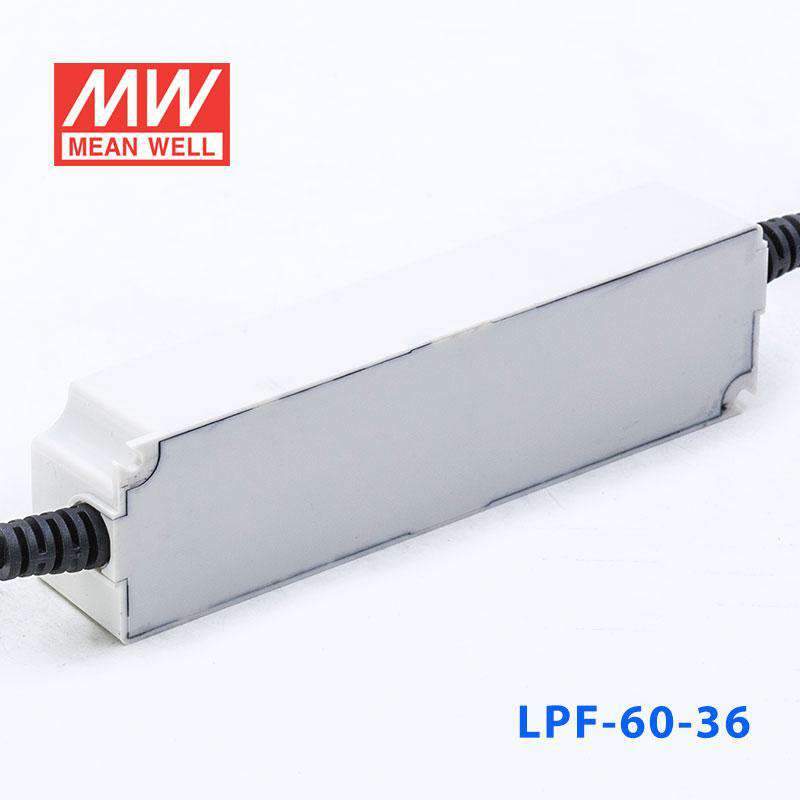

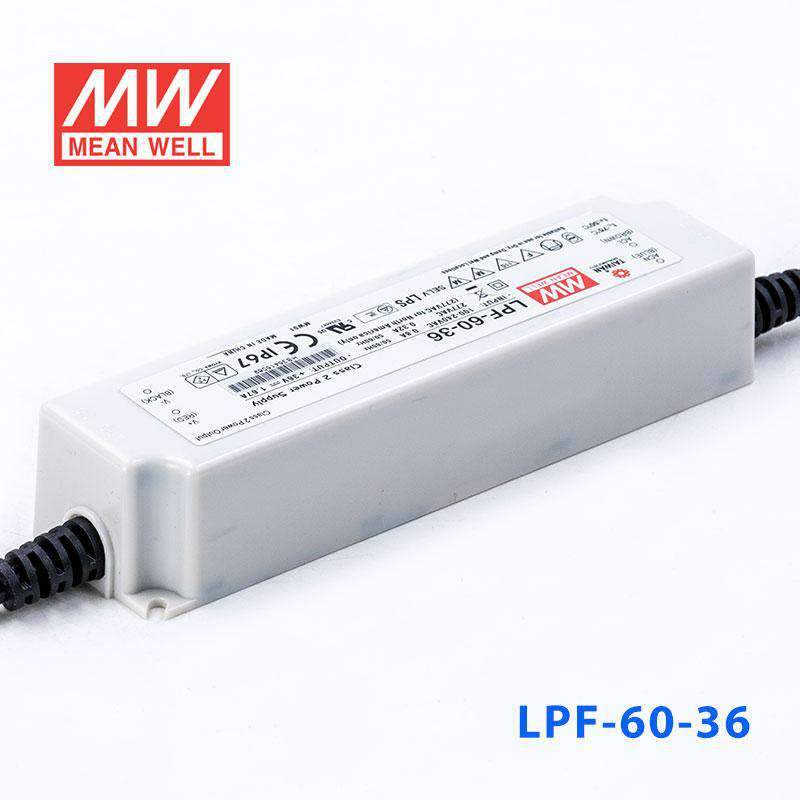

Mean Well LPF-60-36 Power Supply 60W 36V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 162.5x 43x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.12 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-36 for a 36V constant-current LED strip or light engine?
Yes, if the 36V product is specified for constant current operation and the total load stays within 60.12W and 1.67A. This driver's CC range is 21-36V, so the lighting product needs to operate inside that range.
Is the LPF-60-36 suitable for 36V signage lighting in wet locations?
It is suitable when the signage modules are constant current and do not exceed 60.12W or 1.67A. The IP67 waterproof rating supports wet and outdoor environments where the driver needs a sealed housing.
Can this driver be used for outdoor linear lighting or facade details?
Yes, for outdoor linear lighting products that are designed for constant current input between 21V and 36V. The -40°C to +80°C operating temperature range also supports demanding climate conditions.
Would this work in a cold-weather or high-heat lighting project?
Yes, its operating temperature range is -40°C to +80°C. That makes it suitable for projects where the driver may experience very low or very high ambient temperatures within those published limits.
How do I calculate the maximum 36V LED strip length on this driver?
The available output power is 60.12W, with a maximum current of 1.67A. To estimate strip length, use 60.12W / strip watts per meter, and check your strip rated power per meter before final sizing.
How does the LPF-60-36 differ from the other 60W LPF outputs?
The LPF-60 group includes 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. D-series LPF-60D models follow the same voltage and current pattern.
