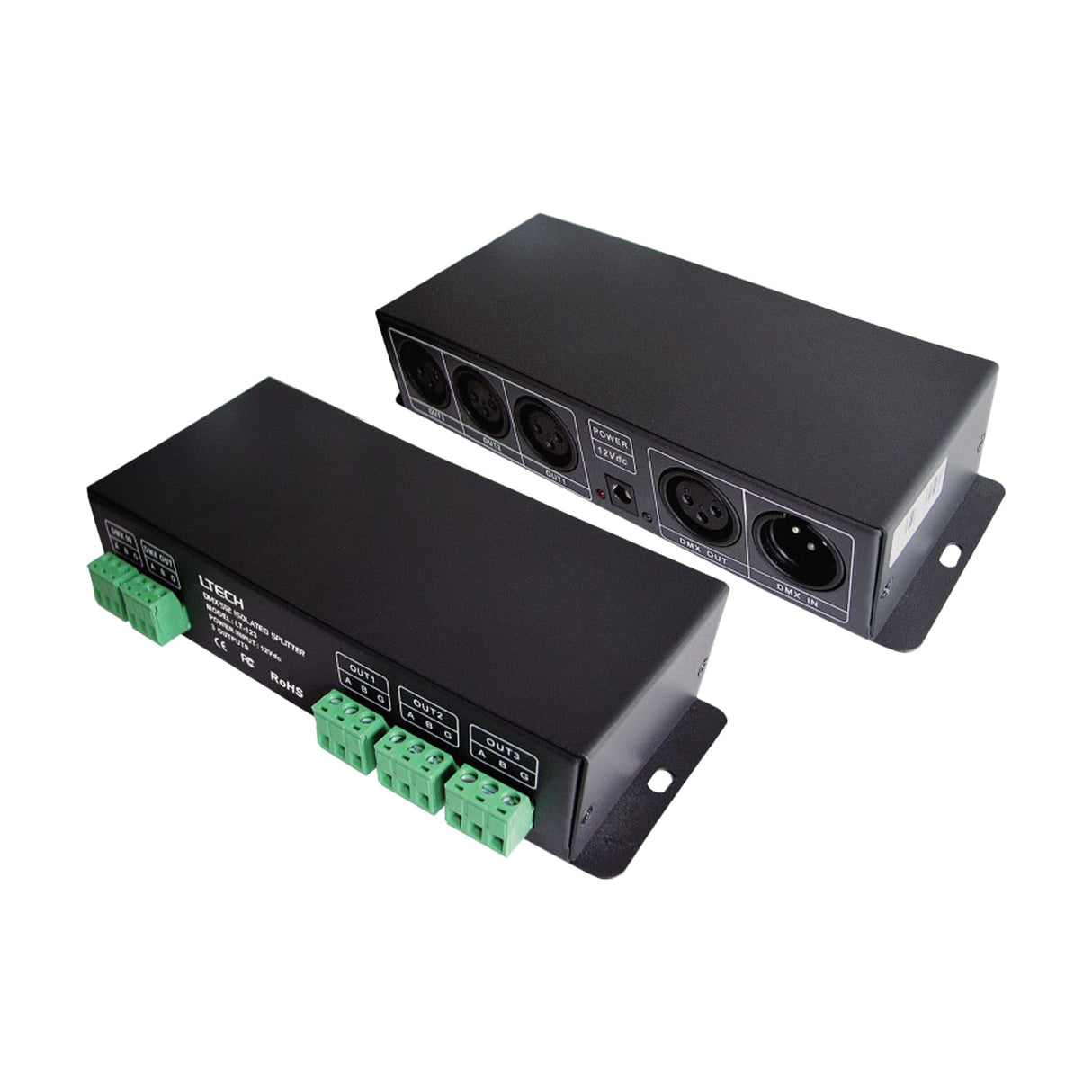

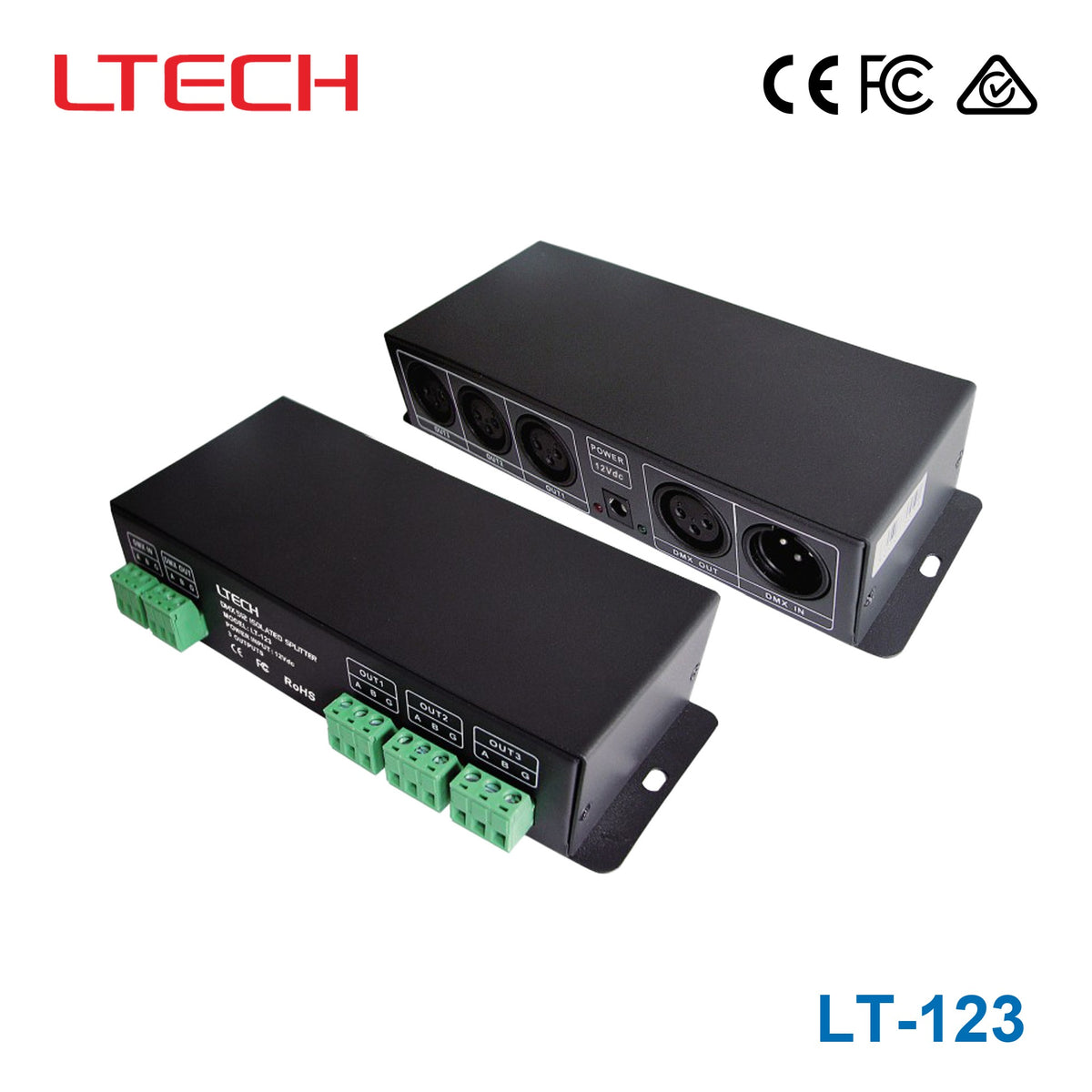

Ltech LT-123 DMX(485) Signal Amplifier

$173.35 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

LT-123 is dedicated to amplify, distribute, and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512 (or RS-485). 3. 2. Need to use the multiple signals expansion output control, increase DMX (485) signal amplifier to distribute multi-channel control. 1. It's specially designed for signal shaping amplification for DMX512 (485) signal which attenuated after a long-distance transmission, realize extending the signal transmission distance; 1 channel input, 3 channels distributed output, there is a independently photoelectricity insulation of >3KV between input and output terminals, and output terminals among 3 channels, so as to avoid the expensive equipment such as light, 485 communications equipment, DMX driver, precise digital lighting controller, being burnt by the possible high voltage which caused from the wrong wire connection and a broken equipment, also can avoid the signal interference between each DMX equipment, to assure it works safely

Specifications

  • Brand
    Ltech
  • Output Voltage
    12 Volt
  • Input Voltage
    0V~12V
  • No of Output
    3
  • Dimming Control
    None
  • Standards Met
    CE,FCC,RCM
  • Operating Temperature
    -30°C~65°C
  • Warranty
    5 Year
  • Length
    7.56 in
  • Width
    3.15 in
  • Height
    1.61 in
  • Weight
    1.37 lb

File Downloads
