Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

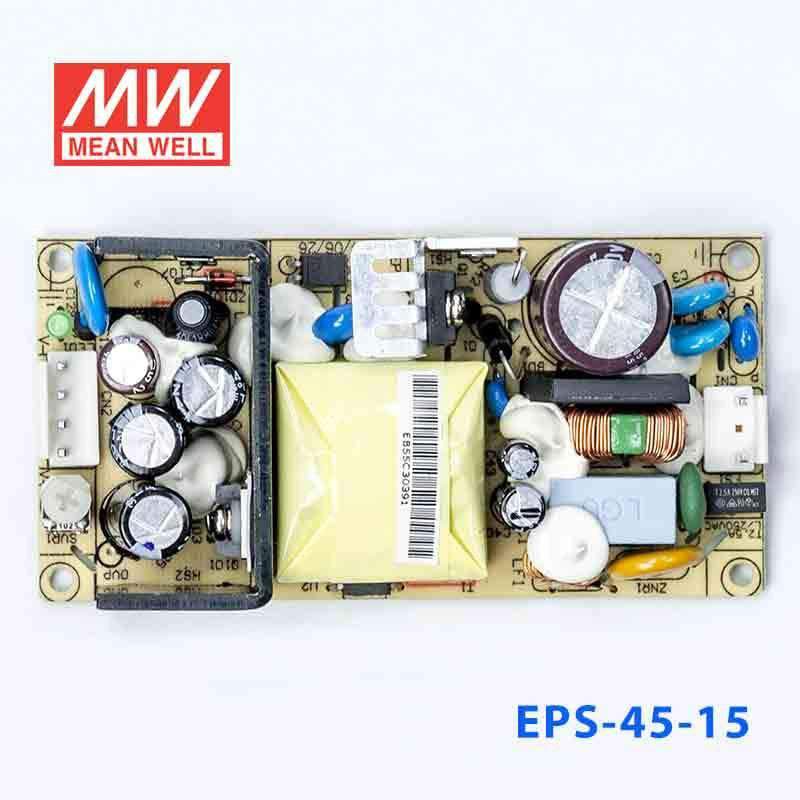

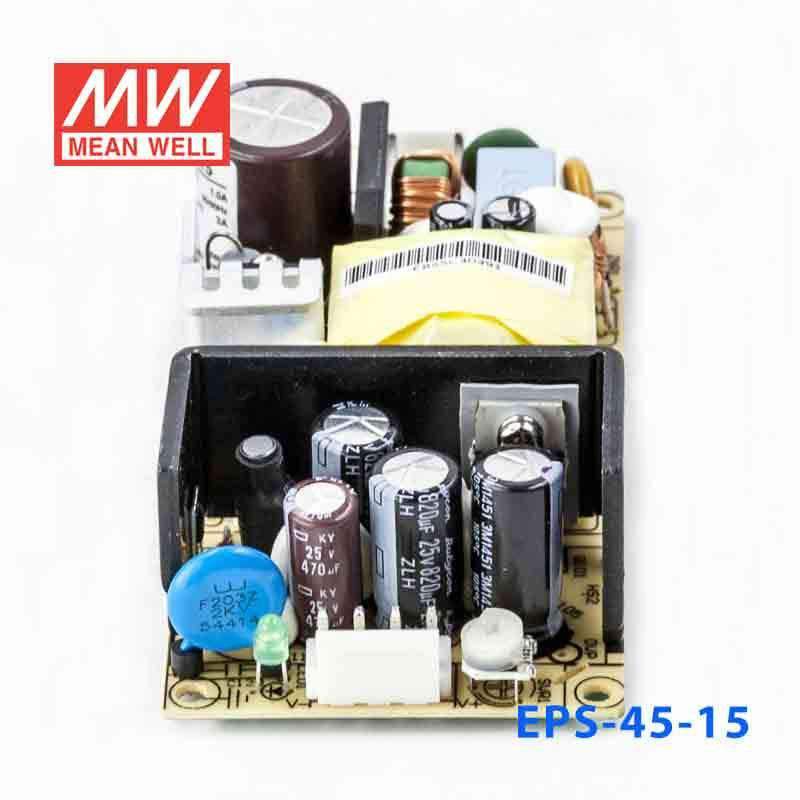

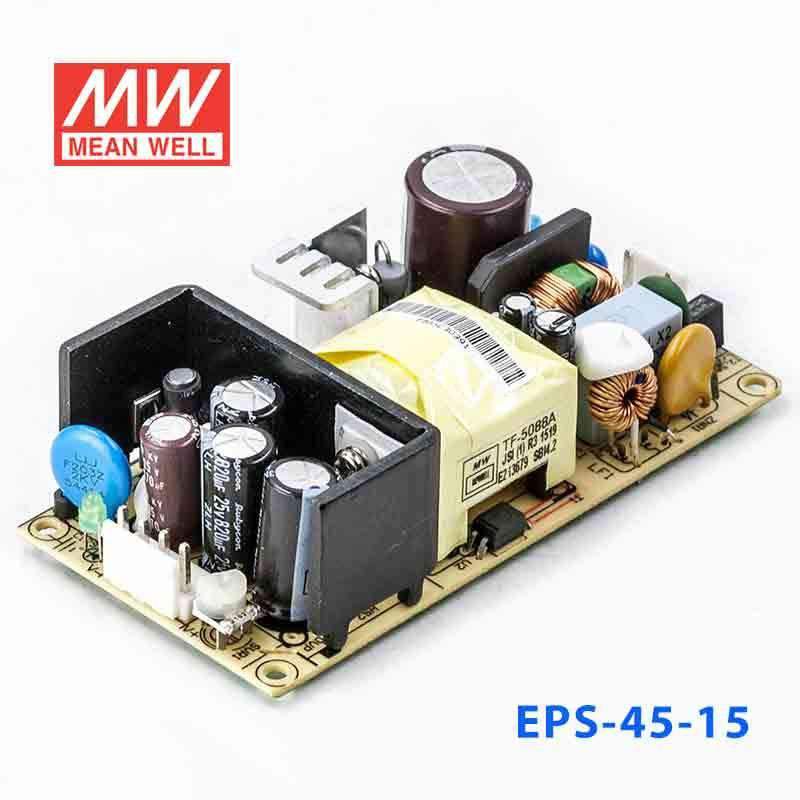

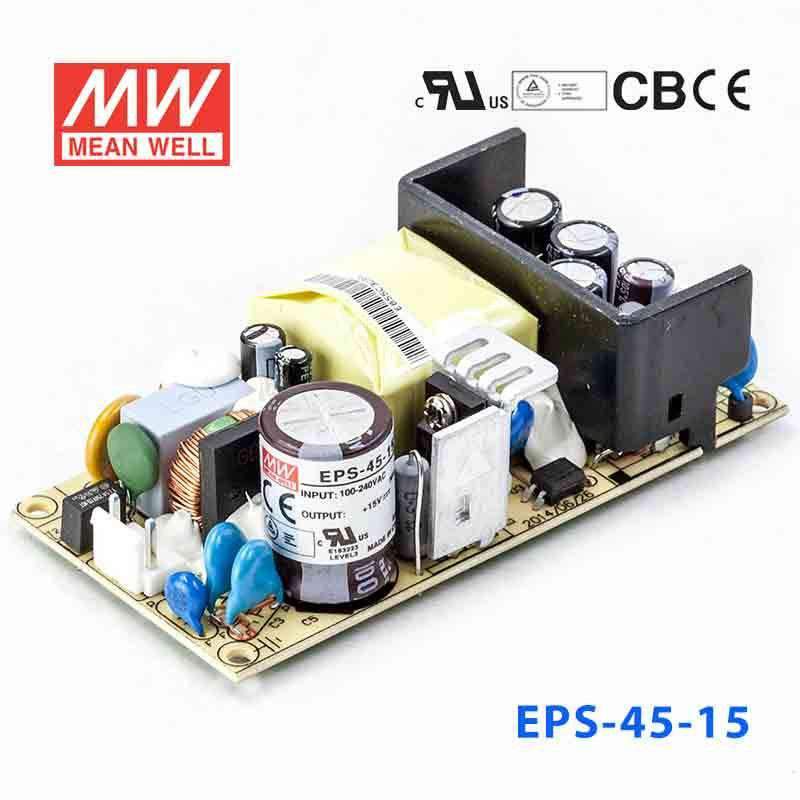

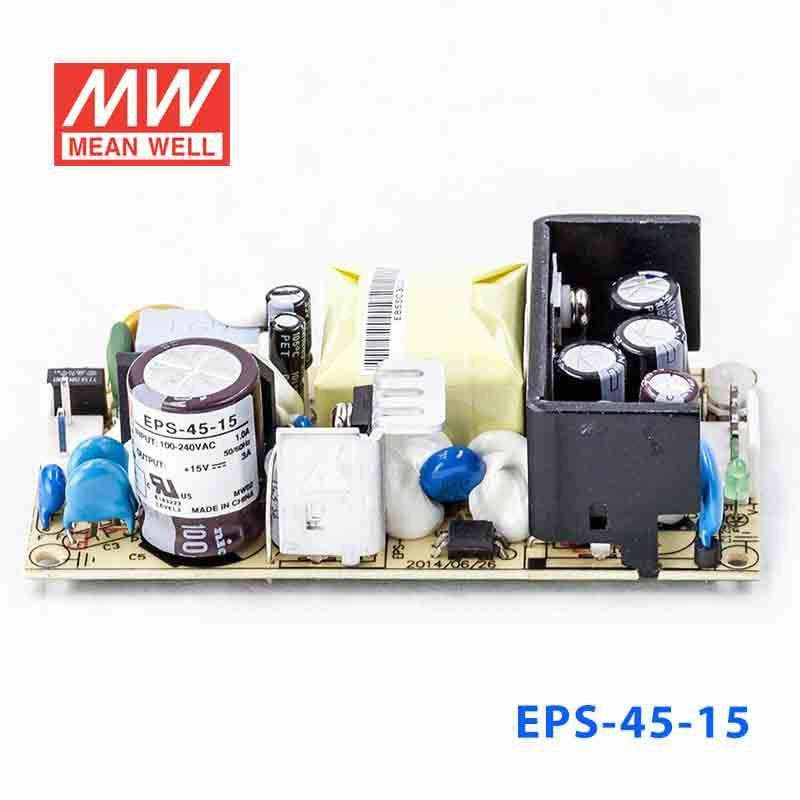

Mean Well EPS-45-15 Power Supply 45W 15V 3A

5.0 (1 review)
4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W
SKU EPS-45-15
$15.19 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

EPS-45-15 is the 15V output model of this series: rated current 3A, rated power 45W, typical efficiency 88%. Type Blank: Blank=PCB only.

Features

  • Universal AC input / Full range
  • Optional L-Bracket and cover
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 4"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • Operating altitude up to 4000 meters
  • 3 years warranty

Specifications

EPS-45-15Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3.3A
RATED POWER
45W
PEAK LOAD(10sec.)Note.6
49.5W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.)
COLD START 60A/230VAC
LEAKAGE CURRENT
<2mA/240VAC

PROTECTION

OVER LOAD
115 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.7
4000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2981.8K hrs min. Telcordia SR-332 (Bellcore) ; 652.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING
PCB: 0.14Kg; 96pcs/ 14.5Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank (this model)
Blank=PCB only
C
Enclosed type
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-45-15 Mechanical Specification
Mechanical Specification
EPS-45-15 Block Diagram
Block Diagram
EPS-45-15 Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-45-15 for a 15V industrial control or instrumentation circuit?

Yes, if the equipment is designed for constant-voltage 15V DC and its total draw stays within 3A and 45W. That makes it suitable for many low-power control, measurement, and instrumentation loads that require a fixed 15V rail.

Is the EPS-45-15 a fit for embedded test equipment or a 15V electronics bench assembly?

It can be, when the load requires 15V DC and does not exceed 45W. The 3A rated output current must cover the total draw of the assembly.

Can this model power 15V analog modules or signal-conditioning electronics?

Yes, if the total 15V load remains at or below 3A and 45W. The main match is a constant-voltage 15V requirement rather than a current-regulated output.

Would the EPS-45-15 work for IT or communications equipment that uses a 15V rail?

It can work for IT or communications hardware when the device is specified for 15V DC and stays within 45W. Its 90-264VAC input also supports use across a broad AC input range.

Is the EPS-45-15 suitable for indoor equipment in cold or warm operating conditions?

The stated operating range is -30°C to +70°C, with output load derating at higher temperatures per the derating curve. No IP rating is listed in the provided specs, so those specs do not confirm exposed outdoor or wet-area suitability.

How does the EPS-45-15 compare with other 15V EPS models?

Among the 15V models on this spec sheet, EPS-45-15 and EPS-45-15-C share the same 45W, 3A rating. EPS-45-15 is the PCB version at 101.6 × 50.8 × 29 mm and 0.14 kg, while EPS-45-15-C is the cased version at 103.4 × 62 × 37 mm and 0.3 kg.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Satispay
  • Shop Pay
  • USDC
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer reviews

5.0 Reviews verified for authenticity
5 ★ (1)
4 ★ (0)
3 ★ (0)
2 ★ (0)
1 ★ (0)

Reviewed by 1 customer across the EPS series

  1. Replacement PS

    By Gary Z.|2026-07-09✓ Verified Buyer
    Model: EPS-15-15 ×1, EPS-15-5 ×1, EPS-15-7.5 ×1Quantity: 1

    Power Supplies were used to replace the one that was removed on a Phillips PM6680 counter, a +5V, +15V and -7V. They seem to work well so far. I have to put in a boost converter on the +15V for space and not use the +15V EPS.
