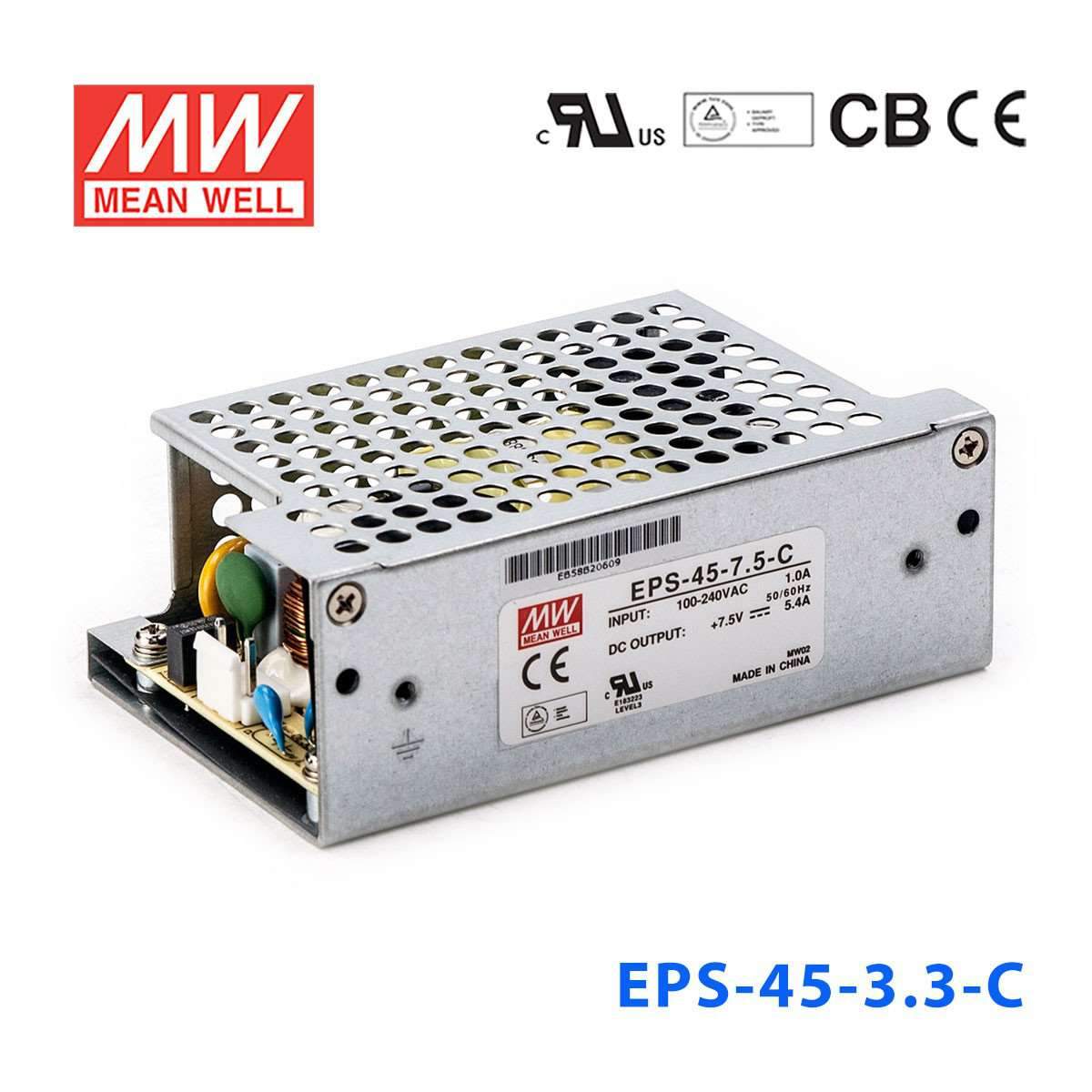

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well EPS-45-3.3-C Power Supply 26W 3.3V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-45-3.3-C Power Supply 26W 3.3V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
| Case available |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~160% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~135% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+4P/3.96mm pitch, JST B3P/B4P-VH |
| Dimension (LxWxH) | PCB: 101.6x50.8x29 ; Case: 103.4x62x37 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating26.4 Watt
-
Output Voltage3.3 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the EPS-45-3.3-C be used for 3.3V industrial I/O or communications electronics?
Yes, it is a constant voltage 3.3V supply rated for up to 8A and 26.4W, which suits many low-voltage industrial electronics that require 3.3VDC. The input side accepts 90-264VAC, so it is intended for AC-fed equipment.
Is this model appropriate for embedded processor boards and digital control hardware?
It is appropriate when the hardware is designed for 3.3V constant voltage input and the total load remains within 26.4W and 8A. This makes it relevant for embedded control assemblies where 3.3V is the required rail.
Can I use the EPS-45-3.3-C for several 3.3V modules in the same enclosure?
It can support multiple 3.3V modules as long as their combined demand stays at or below 8A and 26.4W. Buyers should size the total 3.3V load against both the current and power limits, not voltage alone.
Will the EPS-45-3.3-C handle cold or warm indoor equipment conditions?
The specified operating range is -30°C to +70°C, so it is built for a broad span of indoor equipment temperatures. Since no IP rating is listed, it should not be assumed suitable for direct outdoor exposure or wet environments.
What 3.3V choices are available around the EPS-45-3.3-C in the EPS family?
The listed 3.3V siblings are EPS-15-3.3 at 9.9W and 3A, EPS-25-3.3 at 16.5W and 5A, EPS-35-3.3 at 19.8W and 6A, EPS-45-3.3 at 26.4W and 8A, EPS-45S-3.3 at 26.4W and 8A, EPS-65-3.3 and EPS-65-3.3-C at 36.3W and 11A, and EPS-65S-3.3 at 33W and 10A. This unit shares the same 26.4W, 3.3V, 8A rating as EPS-45-3.3 and EPS-45S-3.3.
