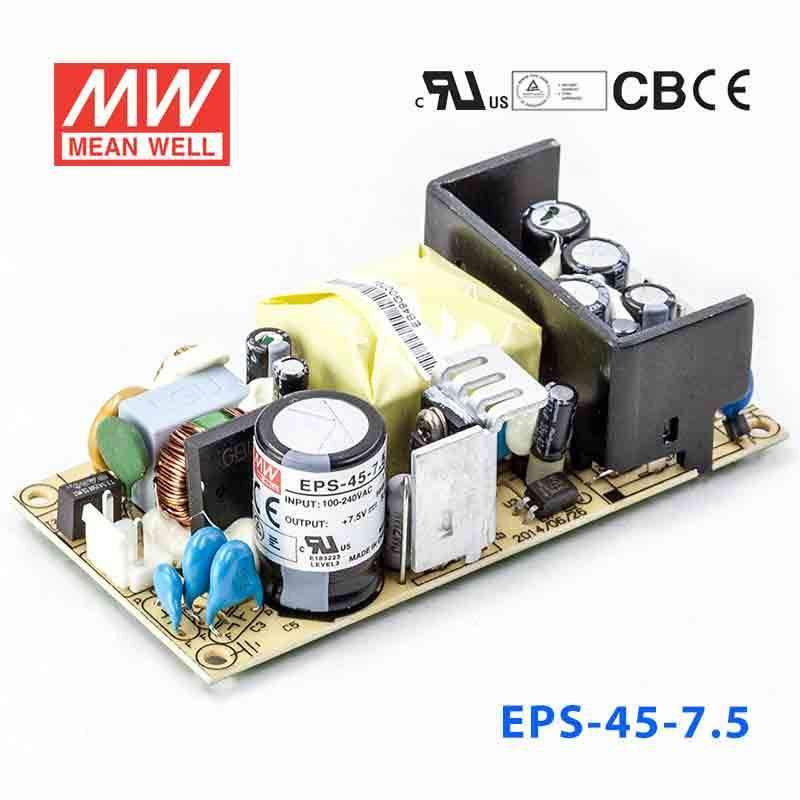

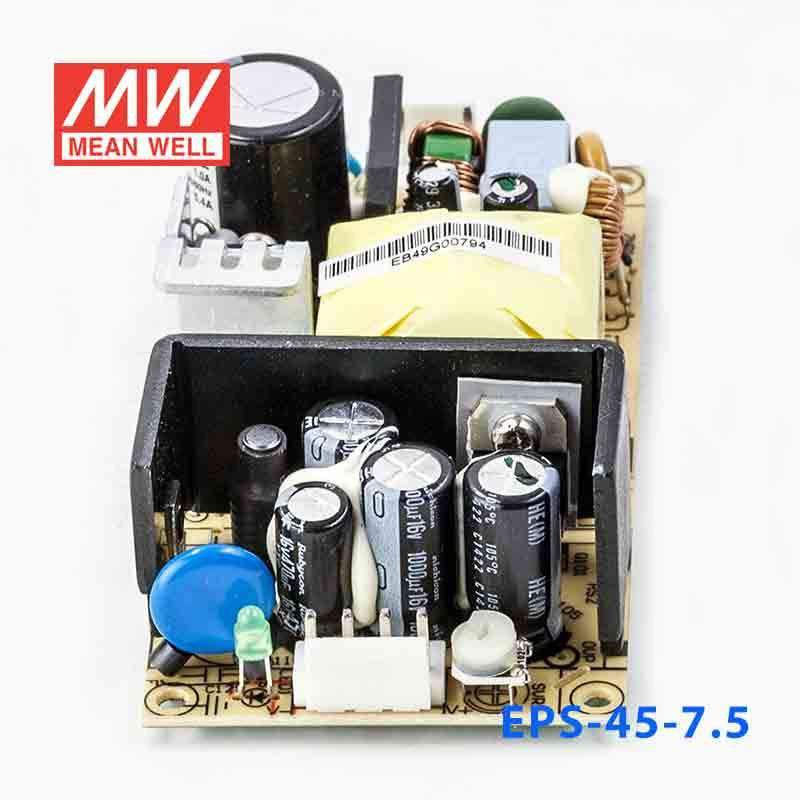

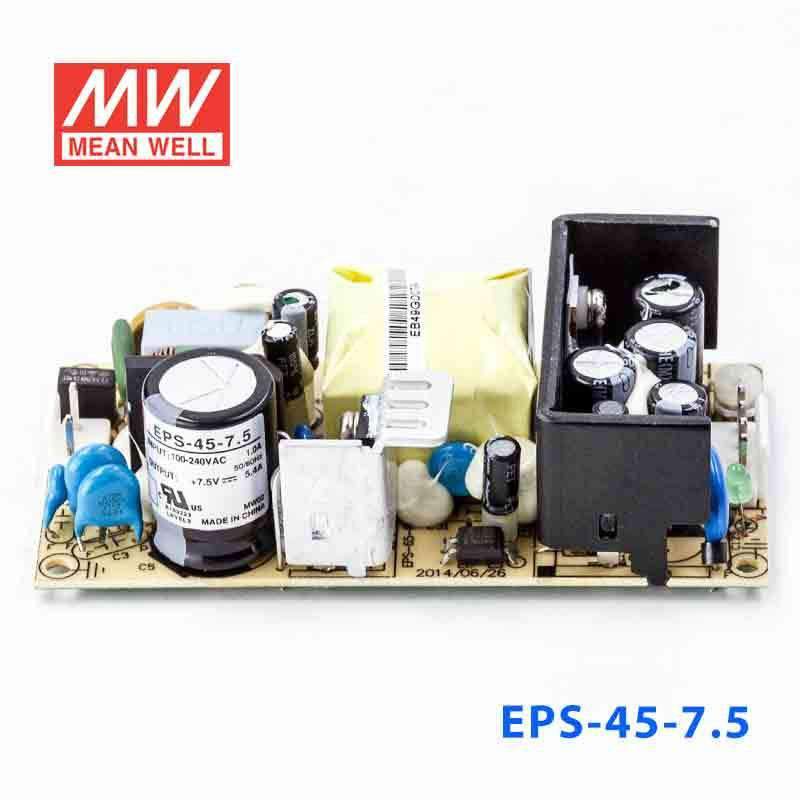

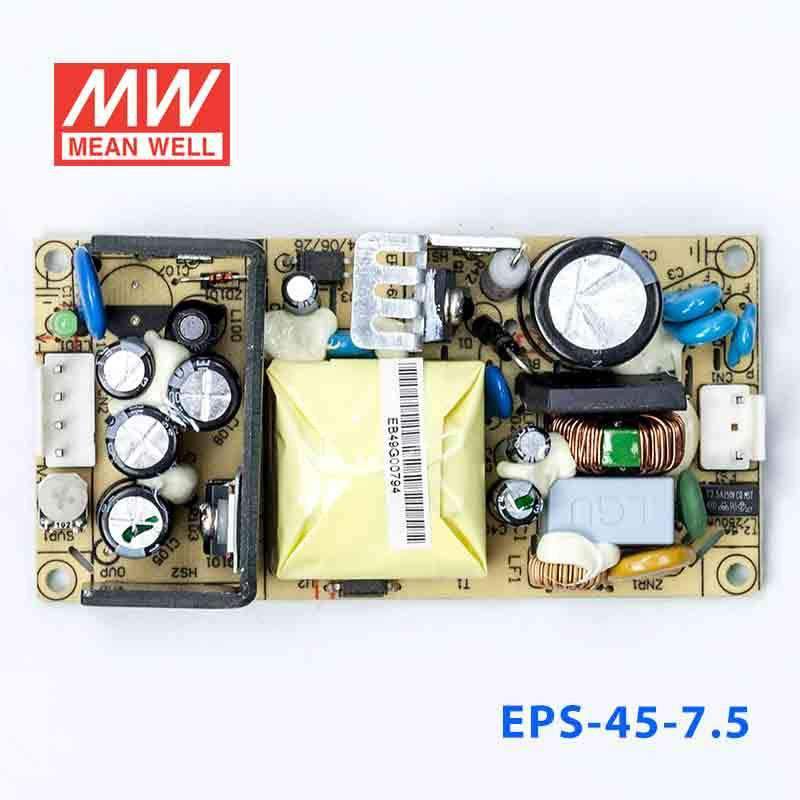

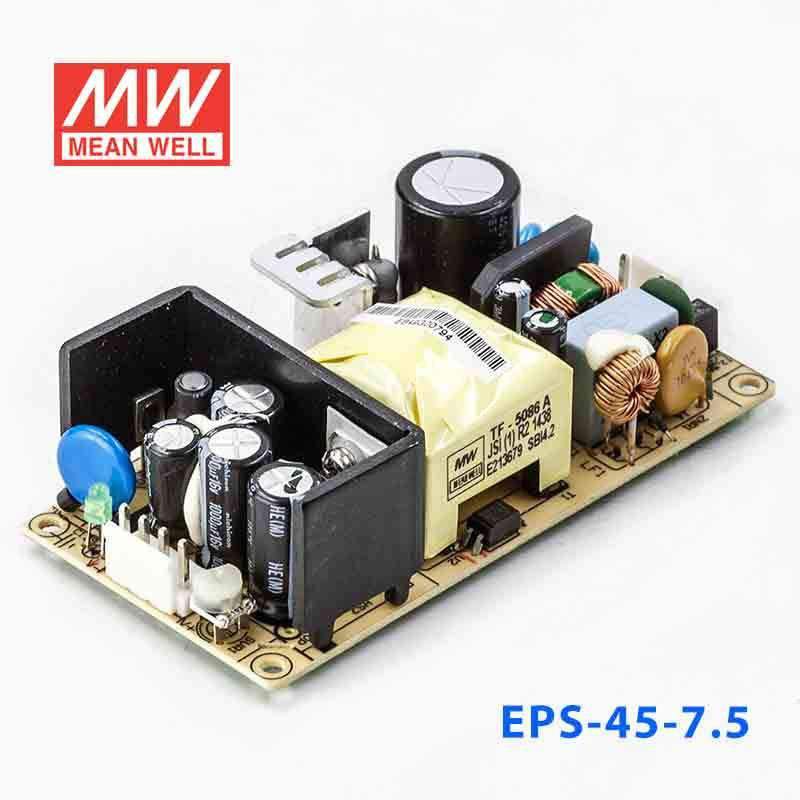

Mean Well EPS-45-7.5 Power Supply 40W 7.5V 5.4A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-45-7.5 Power Supply 40W 7.5V 5.4A
Overview
EPS-45-7.5 is the 7.5V output model of this series: rated current 5.4A, rated power 40.5W, typical efficiency 84%. Type Blank: Blank=PCB only.
Features
- Universal AC input / Full range
- Optional L-Bracket and cover
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 4"×2" compact size
- LED indicator for power on
- No load power consumption<0.3W
- Operating altitude up to 4000 meters
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 7.5V
- RATED CURRENT
- 5.4A
- CURRENT RANGE
- 0 ~ 6A
- RATED POWER
- 40.5W
- PEAK LOAD(10sec.)Note.6
- 42W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 7.13 ~ 8.25V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT (Typ.)
- 1.8A/115VAC 1 A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A/230VAC
- LEAKAGE CURRENT
- <2mA/240VAC
PROTECTION
- OVER LOAD
- 115 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 8.63 ~ 10.1V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to output load derating curve)
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- OPERATING ALTITUDENote.7
- 4000 meters
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2981.8K hrs min. Telcordia SR-332 (Bellcore) ; 652.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
- PACKING
- PCB: 0.14Kg; 96pcs/ 14.5Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT
MODEL ENCODING
- Blank (this model)
- Blank=PCB only
- C
- Enclosed type
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the EPS-45-7.5 for a 7.5V industrial controller or HMI that needs a regulated DC supply?
Yes, this model is a constant voltage power supply with a 7.5V output rated for up to 5.4A and 40.5W. That makes it suitable for 7.5V industrial control, automation, or embedded equipment that must stay within those electrical limits.
Is the EPS-45-7.5 a good fit for embedded electronics or test fixtures that run on 7.5V?
It can be a fit for embedded assemblies, bench fixtures, or control boards that require a constant 7.5V source and draw no more than 5.4A. Its compact 101.6 x 50.8 x 29.0 mm size also helps where internal space is limited.
Can this 7.5V power supply be used in low-voltage automation equipment inside a machine cabinet?
Yes, if the automation load is designed for 7.5V constant voltage and stays within the 40.5W and 5.4A rating. The wide 90-264VAC input also supports use in equipment built for varied AC input conditions.
Would the EPS-45-7.5 work for a 7.5V embedded device that stays powered continuously?
It is intended for regulated 7.5V DC output up to 5.4A, which suits continuously powered embedded or industrial electronics operating within that load range. The average load should stay at or below the 40.5W rated power.
Is the EPS-45-7.5 suitable for outdoor or washdown environments?
No IP rating is listed for this model, so the product information does not establish protection for outdoor or washdown exposure. The operating temperature range is -30°C to +70°C with output load derating per the derating curve, but environmental sealing is not specified.
How does the EPS-45-7.5 compare with other 7.5V models in the EPS series?
Among the 7.5V models on this spec sheet, EPS-45-7.5 and EPS-45-7.5-C share the same 40.5W, 5.4A rating. EPS-45-7.5 is the PCB version at 101.6 × 50.8 × 29 mm and 0.14 kg, while EPS-45-7.5-C is the cased version at 103.4 × 62 × 37 mm and 0.3 kg.
