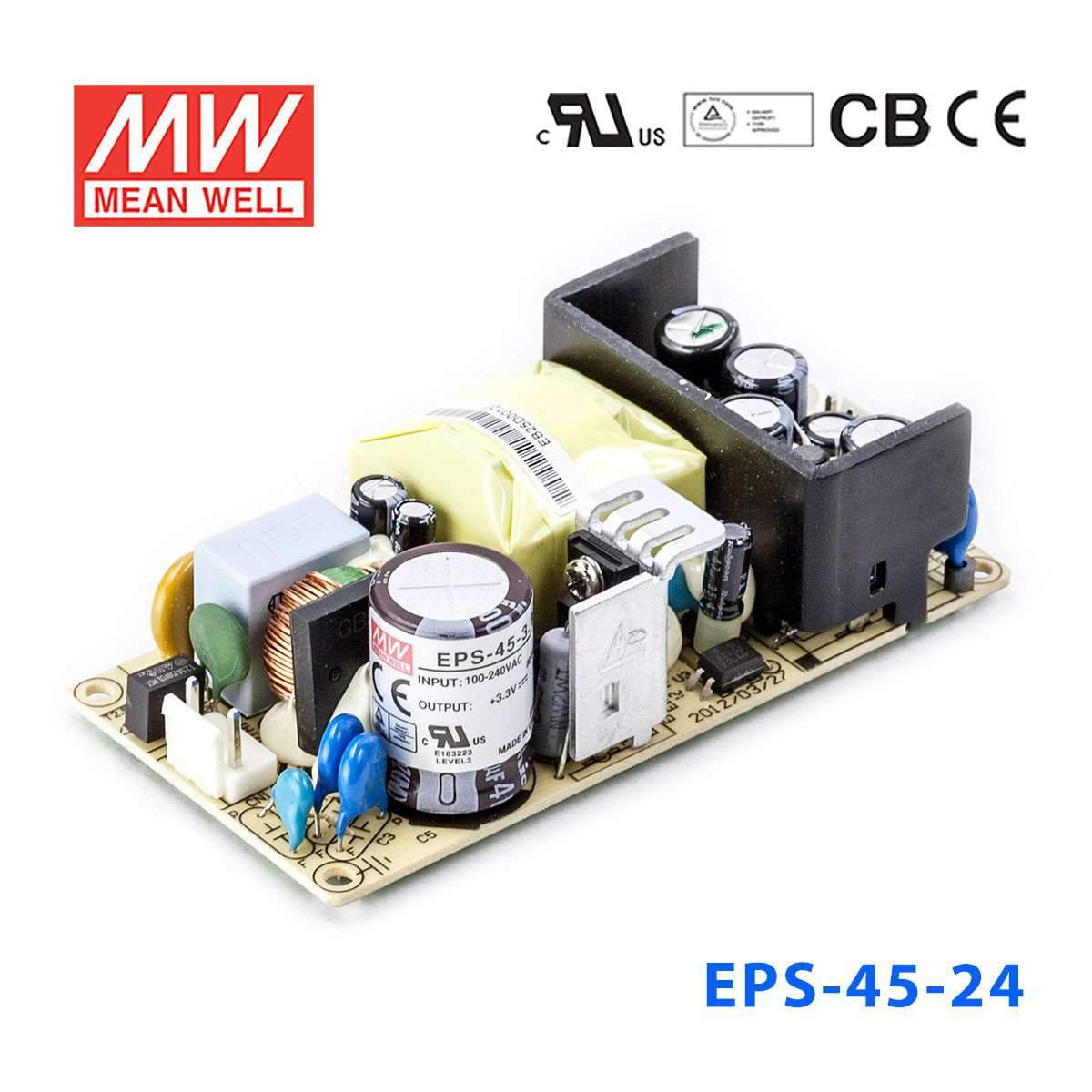

Mean Well EPS-45-24 Power Supply 45W 24V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
| Case available |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~160% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~135% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+4P/3.96mm pitch, JST B3P/B4P-VH |
| Dimension (LxWxH) | PCB: 101.6x50.8x29 ; Case: 103.4x62x37 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating45.6 Watt
-
Output Voltage24 Volt
-
Rated Current1.9 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.31 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-45-24 to power a 24V PLC or industrial control circuit?
Yes, this model is a constant voltage 24V supply rated for 45.6W and 1.9A, which fits many small PLC, relay, and control-panel loads that require 24VDC. It is intended for AC-fed equipment because the input range is 90-264VAC.
Is the EPS-45-24 suitable for 24V sensors, relays, and automation accessories in one enclosure?
It can be a fit when the connected 24V devices stay within the unit's 1.9A and 45.6W output limits. The constant voltage output is intended for 24V equipment rather than loads that require another DC voltage.
Can this power supply run a small 24V embedded or industrial PC setup?
It is appropriate for 24V embedded and industrial electronics when the total load does not exceed 45.6W or 1.9A. Buyers should match the equipment to a constant voltage 24V source and verify the power draw stays inside the published limits.
Can the EPS-45-24 be used in an indoor machine cabinet or control box?
For indoor equipment spaces, the operating temperature range of -30°C to +70°C supports a wide range of industrial conditions. No IP rating is listed in the provided specs, so it should not be treated as a weather-exposed or washdown power supply.
How does the EPS-45-24 compare with other 24V models in the EPS series?
Within the sibling list, the 24V options are EPS-15-24 at 15W and 0.62A, EPS-25-24 at 25.2W and 1.05A, EPS-35-24 at 36W and 1.5A, EPS-45-24-C at 45.6W and 1.9A, EPS-45S-24 at 45.6W and 1.9A, EPS-65-24 and EPS-65-24-C at 65.04W and 2.71A, EPS-65S-24 at 65W and 2.71A, and EPS-120-24 at 84W and 3.5A. The EPS-45-24 sits in the middle of that 24V range at 45.6W and 1.9A.
