Mean Well

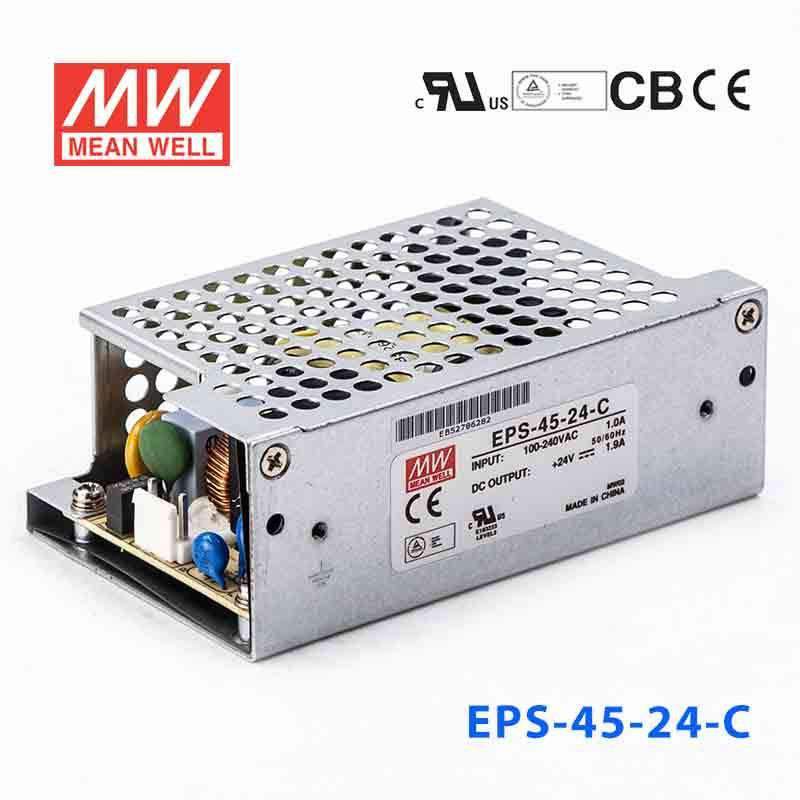

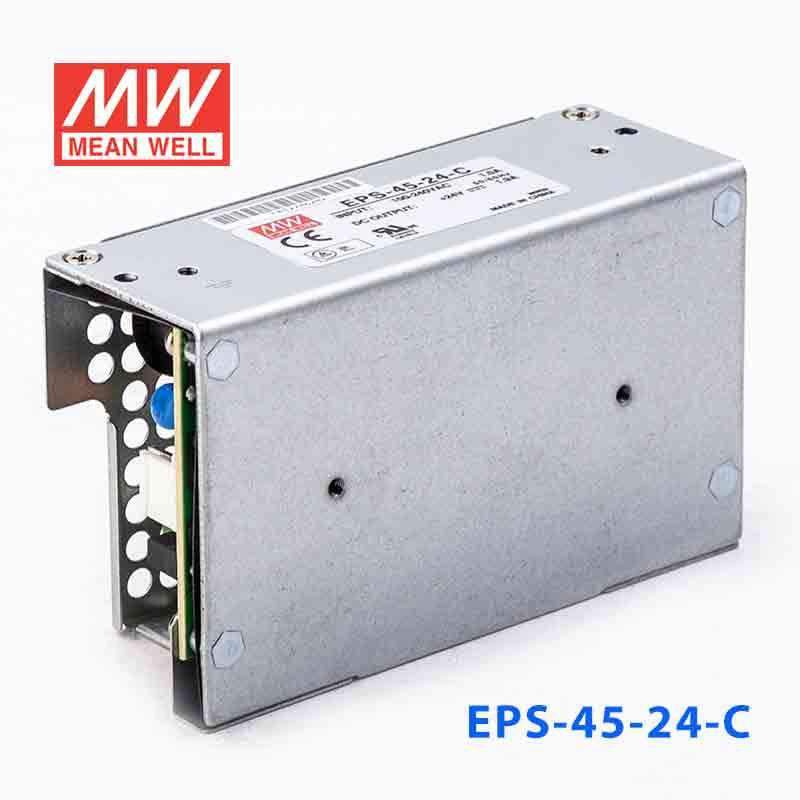

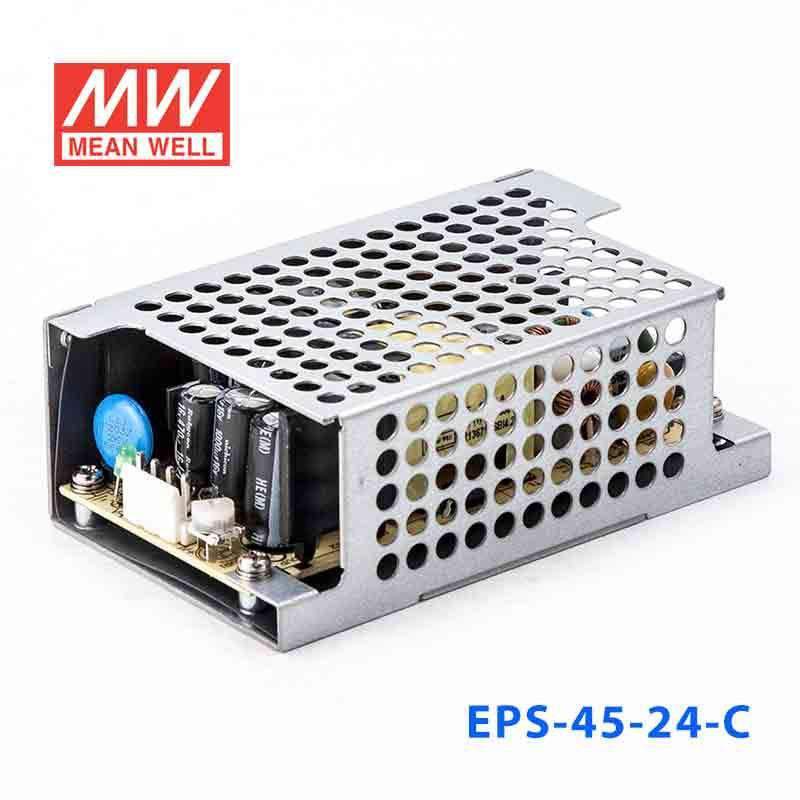

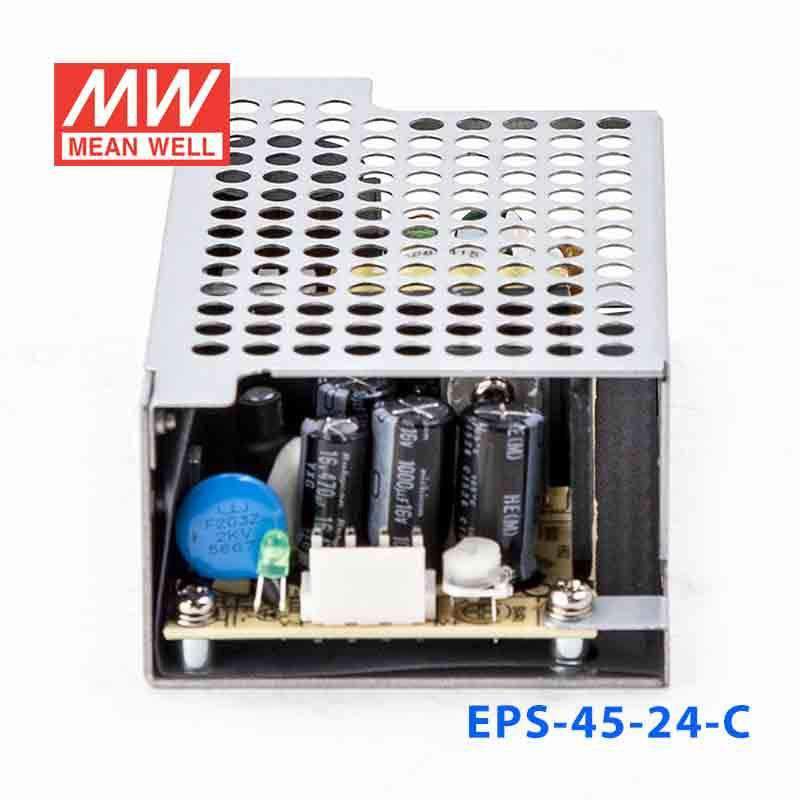

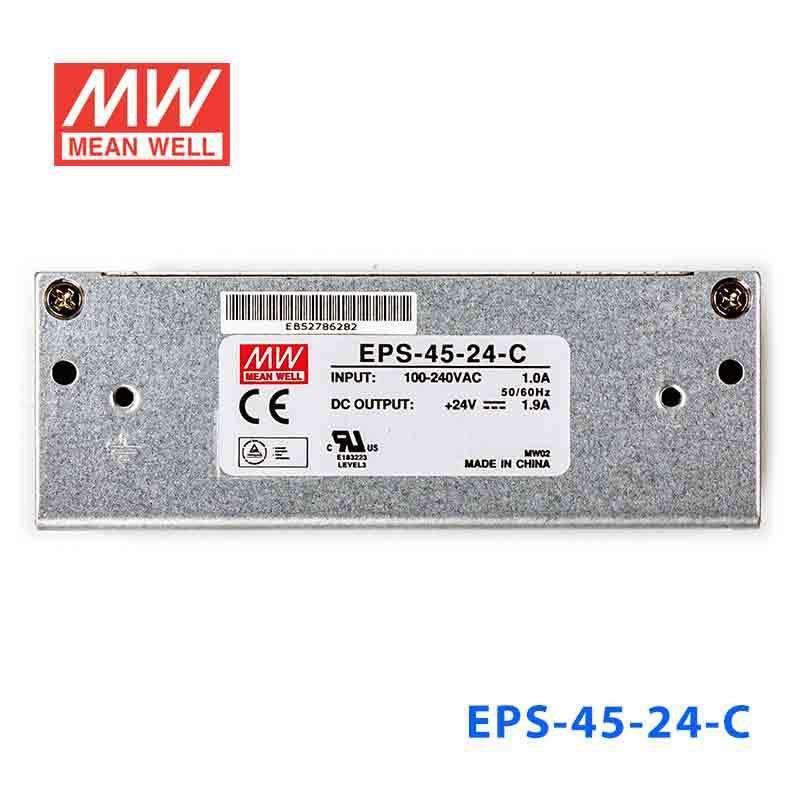

Mean Well EPS-45-24-C Power Supply 45W 24V 1.9A

5.0 (1 review)
4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W
SKU EPS-45-24-C
$19.13 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

EPS-45-24-C is the 24V output model of this series: rated current 1.9A, rated power 45.6W, typical efficiency 89%. Type C: Enclosed type.

Features

  • Universal AC input / Full range
  • Optional L-Bracket and cover
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 4"×2" compact size
  • LED indicator for power on
  • No load power consumption<0.3W
  • Operating altitude up to 4000 meters
  • 3 years warranty

Specifications

EPS-45-24-CSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
1.9A
CURRENT RANGE
0 ~ 2.1A
RATED POWER
45.6W
PEAK LOAD(10sec.)Note.6
50.4W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE ADJ. RANGE
21.6 ~ 27V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.)
COLD START 60A/230VAC
LEAKAGE CURRENT
<2mA/240VAC

PROTECTION

OVER LOAD
115 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDENote.7
4000 meters
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2981.8K hrs min. Telcordia SR-332 (Bellcore) ; 652.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING
PCB: 0.14Kg; 96pcs/ 14.5Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank
Blank=PCB only
C (this model)
Enclosed type
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-45-24-C Mechanical Specification
Mechanical Specification
EPS-45-24-C Block Diagram
Block Diagram
EPS-45-24-C Output Derating
Output Derating

Downloads

FAQ

Can I use the EPS-45-24-C for a 24V access control or security power application indoors?

It can fit indoor 24V control equipment that needs a constant voltage output and stays within 45.6W and 1.9A. The wide 90-264VAC input range also suits sites where the AC source may vary within that published range.

Is the EPS-45-24-C a good choice for 24V industrial indicators, relays, or panel devices?

Yes, for 24V panel devices and automation accessories, this unit provides a constant voltage 24V output with up to 1.9A available. The total connected load should remain at or below 45.6W.

Can this model power a compact 24V HMI or controller assembly?

It is intended for 24VDC equipment and can support compact controller or HMI assemblies when the combined demand does not exceed 1.9A and 45.6W. As with any constant voltage supply, the connected equipment should be specified for 24V operation.

Is the EPS-45-24-C suitable for outdoor or harsh exposed environments?

The operating temperature range is -30°C to +70°C, with output load derating per the derating curve, which supports broad temperature conditions inside equipment. However, no IP rating is provided in the specs, so it should not be assumed suitable for exposed outdoor, wet, or dust-heavy locations without additional protection.

What are the main 24V alternatives around the EPS-45-24-C in the same series?

On this spec sheet, the other 24V option is the EPS-45-24, which shares the same 45.6W, 24V, 1.9A rating. The EPS-45-24-C is the cased version at 103.4 × 62 × 37 mm and 0.3 kg, versus 101.6 × 50.8 × 29 mm and 0.14 kg for the PCB-type EPS-45-24.
