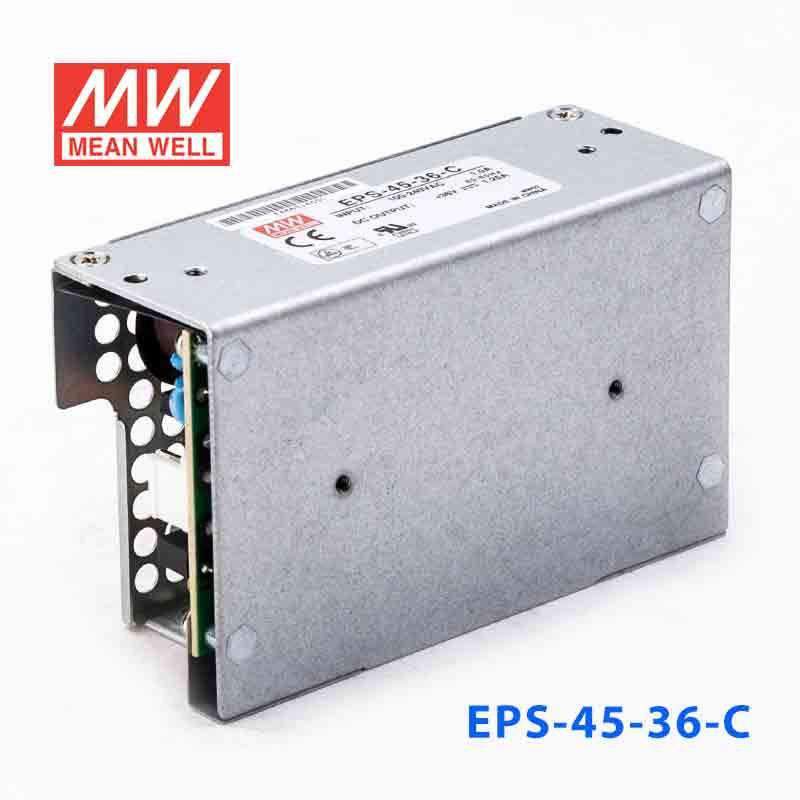

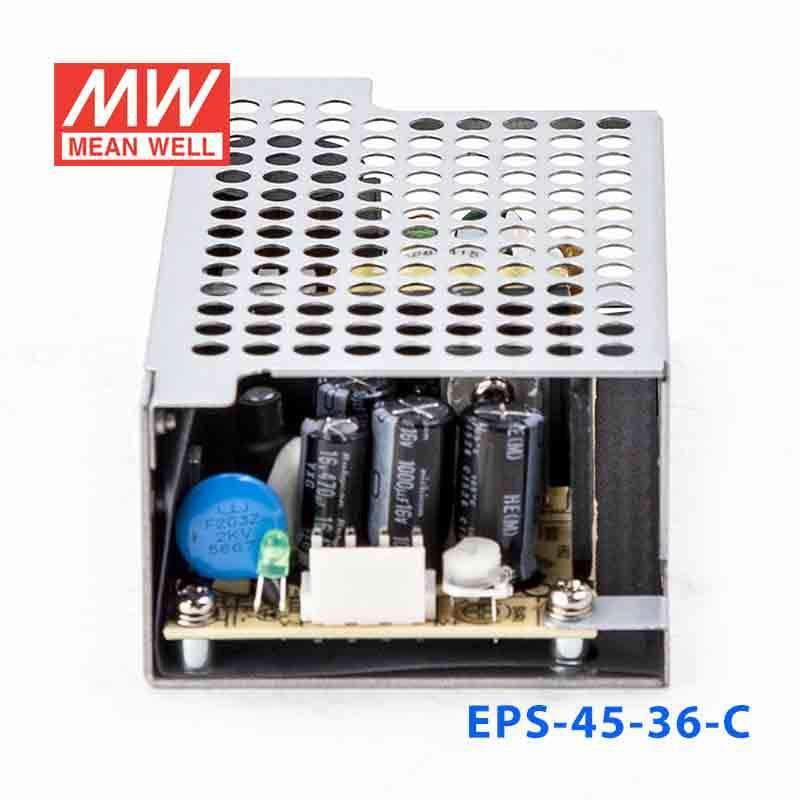

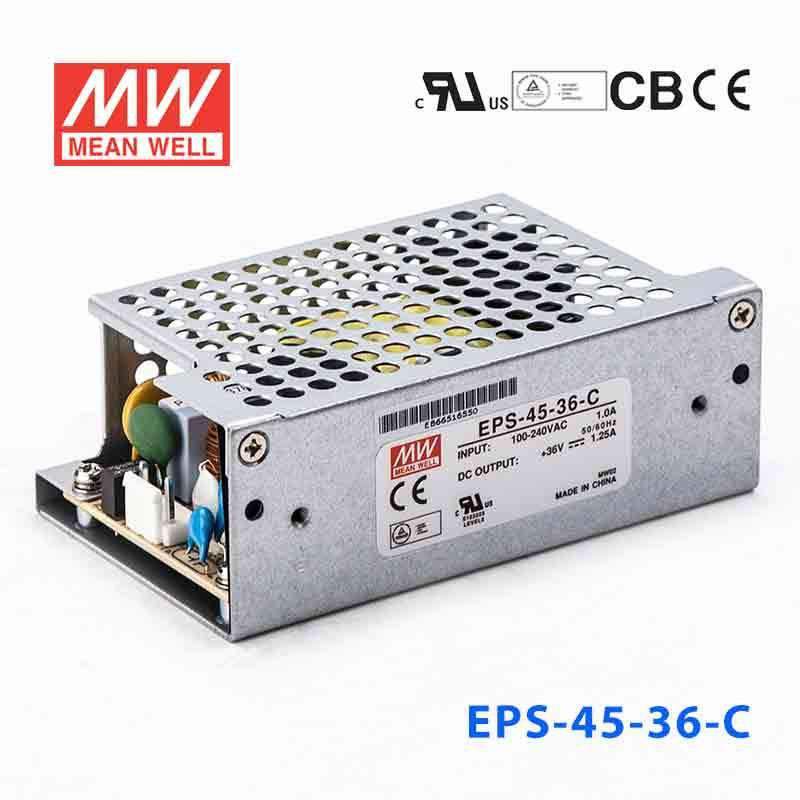

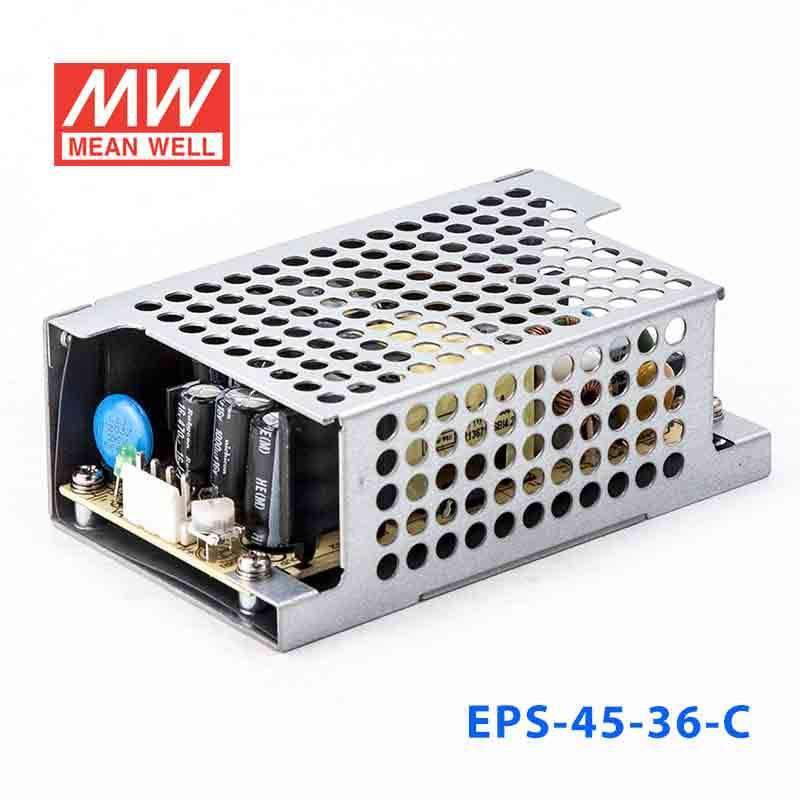

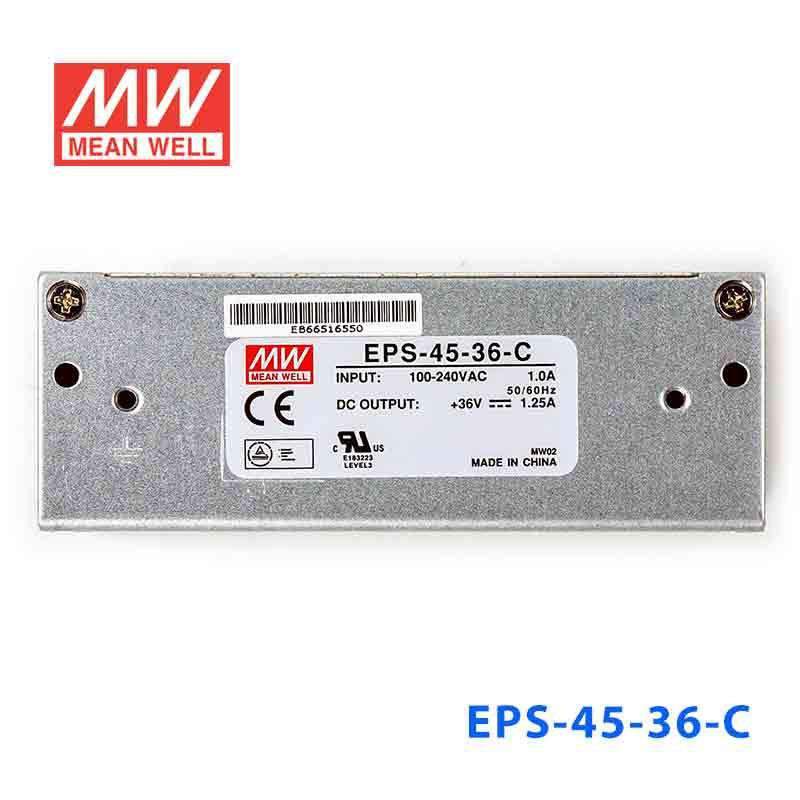

Mean Well EPS-45-36-C Power Supply 45W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-45-36-C Power Supply 45W 36V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
| Case available |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~160% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~135% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+4P/3.96mm pitch, JST B3P/B4P-VH |
| Dimension (LxWxH) | PCB: 101.6x50.8x29 ; Case: 103.4x62x37 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating45 Watt
-
Output Voltage36 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-45-36-C for a 36V industrial sensor or actuator circuit?
Yes, if the load is designed for 36V constant-voltage input and stays within 1.25A. This model provides 45W total at 36V, so it fits lower-power industrial sensor, relay, or actuator circuits that match those limits.
Is the EPS-45-36-C a good fit for a 36V embedded controller or electronics test fixture?
It can be, as long as the controller or fixture needs a regulated 36V constant-voltage source and does not exceed 45W. The wide 90-264VAC input also makes it suitable for equipment used across different AC mains environments.
Can this power a small 36V automation subsystem inside a control cabinet?
Yes, for small automation loads that require 36V DC and draw no more than 1.25A. Its compact 103.4 × 62.0 × 37.0 mm size also helps where panel space is limited.
Would the EPS-45-36-C work for low-power 36V lab or bench equipment?
Yes, if the equipment calls for 36V constant voltage and stays within the 45W, 1.25A output limit. This makes it suitable for low-power test, measurement, or evaluation setups built around 36V DC rails.
Is the EPS-45-36-C suitable for outdoor or harsh-environment use?
The listed operating temperature range is -30°C to +70°C, but no IP rating is provided in the product specs. That supports use across a wide temperature range, but the specs do not support direct exposure to outdoor moisture or washdown conditions.
