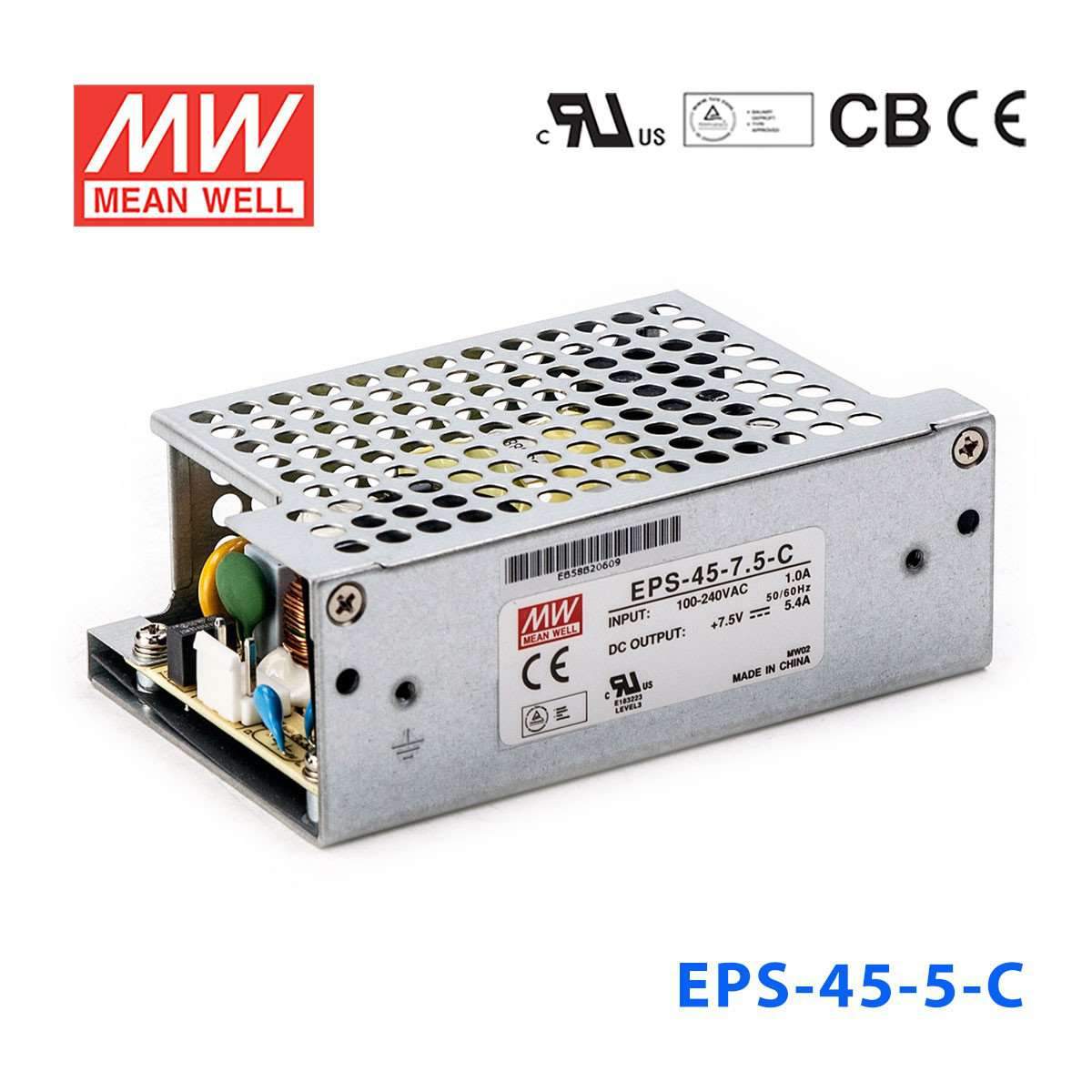

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well EPS-45-5-C Power Supply 40W 5V 8A

Name: Mean Well EPS-45-5-C Power Supply 40W 5V 8A
Brand: Mean Well
SKU: EPS-45-5-C
Price: 19.13 USD
Availability: InStock
Rating: 5.0 (1 reviews)

5.0 (1 review)

4" x 2"high efficiencyoptional L-bracket and coverno load power consumption<0.3W

SKU EPS-45-5-C

$19.13 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

EPS-45-5-C is the 5V output model of this series: rated current 8A, rated power 40W, typical efficiency 82%. Type C: Enclosed type.

Features

Universal AC input / Full range
Optional L-Bracket and cover
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
4"×2" compact size
LED indicator for power on
No load power consumption<0.3W
Operating altitude up to 4000 meters
3 years warranty

Specifications

EPS-45-5-CSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 8A
CURRENT RANGE: 0 ~ 9A
RATED POWER: 40W
PEAK LOAD(10sec.)^Note.6: 45W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 4.75 ~ 5.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC
LEAKAGE CURRENT: <2mA/240VAC

PROTECTION

OVER LOAD: 115 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.6 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
OPERATING ALTITUDE^Note.7: 4000 meters
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2981.8K hrs min. Telcordia SR-332 (Bellcore) ; 652.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING: PCB: 0.14Kg; 96pcs/ 14.5Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

MODEL ENCODING

Blank: Blank=PCB only
C (this model): Enclosed type

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EPS-45-5-C Mechanical Specification — Mechanical Specification

EPS-45-5-C Block Diagram — Block Diagram

EPS-45-5-C Output Derating — Output Derating

Downloads

Datasheet1

EPS-45-5-C datasheetEPS-45-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (EPS-45)(EN) PDF Download

TUV Certificate (EPS-45)(EN) PDF Download

EMC Certificate (EPS-45)(EN) PDF Download

Test reports1

Test Report (EPS-45-5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the EPS-45-5-C for a 5V industrial controller or processing board?

Yes, if the controller requires 5V constant voltage and draws no more than 8A. With 40W available output, it suits higher-current 5V electronics used in industrial control and embedded processing systems.

Is the EPS-45-5-C a fit for 5V automation electronics with several low-voltage loads?

It can be, provided the combined load remains within 40W and 8A at 5V. That makes it useful for grouped 5V logic, sensor, and interface electronics in automation assemblies.

Would this power supply work for 5V lab, QA, or production test fixtures?

Yes, for fixtures that need a stable 5V constant-voltage rail with relatively high current available. The 90-264VAC input also helps when the same equipment may be used in different mains regions.

Can the EPS-45-5-C support a 5V communications or display subsystem?

Yes, if the subsystem is designed for 5V DC and stays within the 8A output ceiling. Its 103.4 × 62.0 × 37.0 mm housing gives the same electrical rating as the EPS-45-5 in a larger package.

Is the EPS-45-5-C suitable for outdoor cabinets or damp locations?

The specs define operation from -30°C to +70°C, with output load derating per the derating curve, but no IP rating is listed. That means the temperature range is specified, while protection against water or dust ingress is not stated in the product data.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well EPS-45-7.5-C Power Supply 40W 7.5V 5.4A	40.5W	7.5V	5.4A	IP20	$19.10	View
Mean Well EPS-45-7.5 Power Supply 40W 7.5V 5.4A	40.5W	7.5V	5.4A	IP20	$15.19	View
Mean Well EPS-45-5 Power Supply 40W 5V 8A	40W	5V	8A	IP20	$15.19	View
Mean Well EPS-45-48-C Power Supply 48W 48V 1A	48W	48V	1A	IP20	$19.13	View
Mean Well EPS-45-48 Power Supply 48W 48V 1A	48W	48V	1A	IP20	$15.19	View
Mean Well EPS-45-36-C Power Supply 45W 36V 1.25A	45W	36V	1.25A	IP20	$19.13	View
Mean Well EPS-45-36 Power Supply 45W 36V 1.25A	45W	36V	1.25A	IP20	$15.19	View
Mean Well EPS-45-3.3-C Power Supply 26W 3.3V 8A	26.4W	3.3V	8A	IP20	$19.13	View
Mean Well EPS-45-3.3 Power Supply 26W 3.3V 8A	26.4W	3.3V	8A	IP20	$15.19	View
Mean Well EPS-45-24-C Power Supply 45W 24V 1.9A	45.6W	24V	1.9A	IP20	$19.13	View
Mean Well EPS-45-24 Power Supply 45W 24V 1.9A	45.6W	24V	1.9A	IP20	$15.19	View
Mean Well EPS-45-15-C Power Supply 45W 15V 3A	45W	15V	3A	IP20	$19.13	View
Mean Well EPS-45-15 Power Supply 45W 15V 3A	45W	15V	3A	IP20	$15.19	View

Customer reviews

5.0 Reviews verified for authenticity

5 ★ (1)

4 ★ (0)

3 ★ (0)

2 ★ (0)

1 ★ (0)

Reviewed by 1 customer across the EPS series

Replacement PS
By Gary Z.|2026-07-09✓ Verified Buyer
Model: EPS-15-15 ×1, EPS-15-5 ×1, EPS-15-7.5 ×1Quantity: 1
Power Supplies were used to replace the one that was removed on a Phillips PM6680 counter, a +5V, +15V and -7V. They seem to work well so far. I have to put in a boost converter on the +15V for space and not use the +15V EPS.
