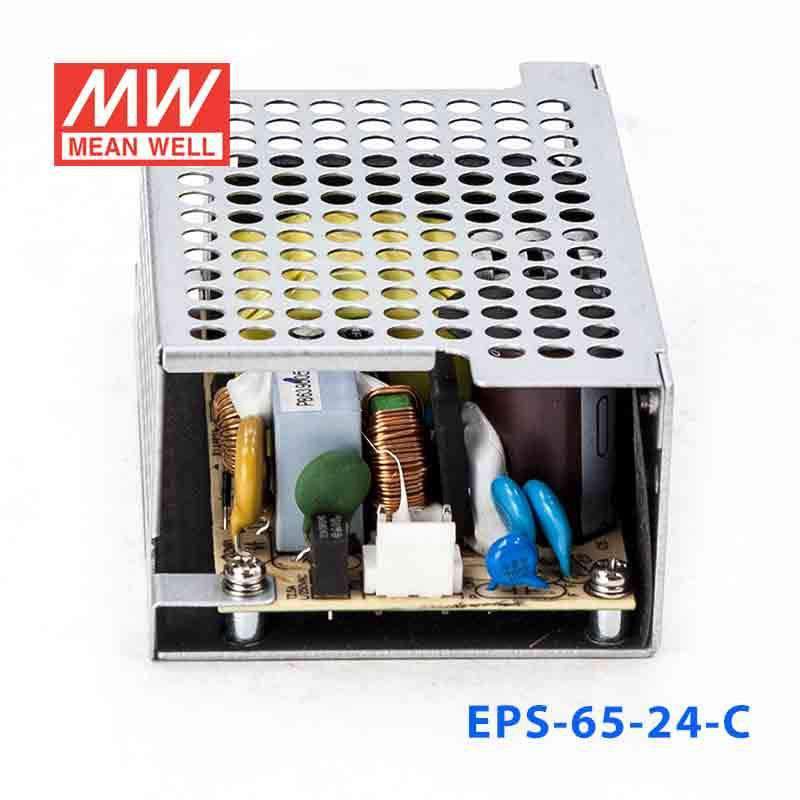

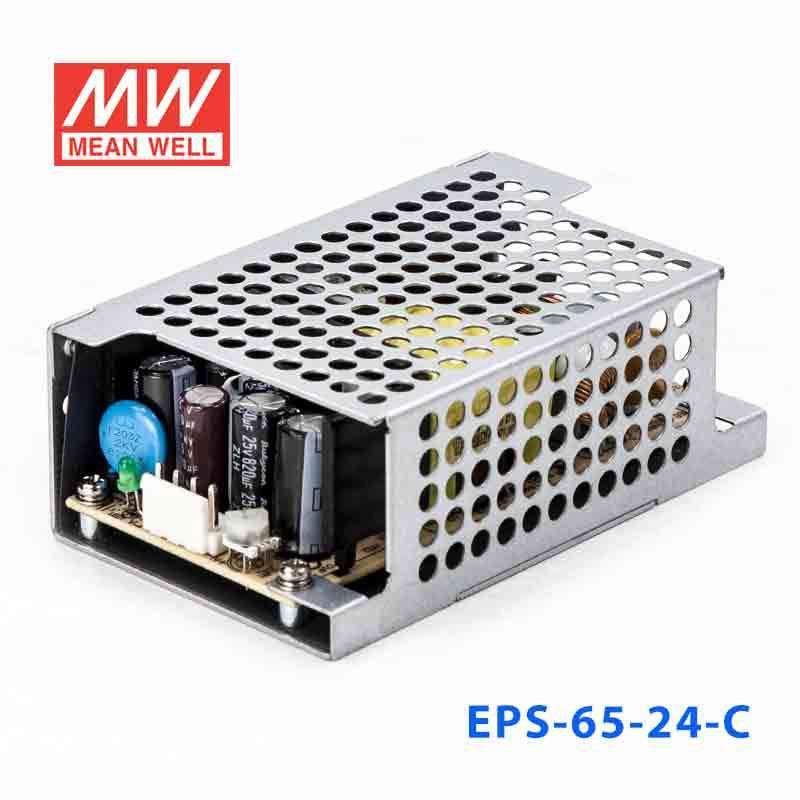

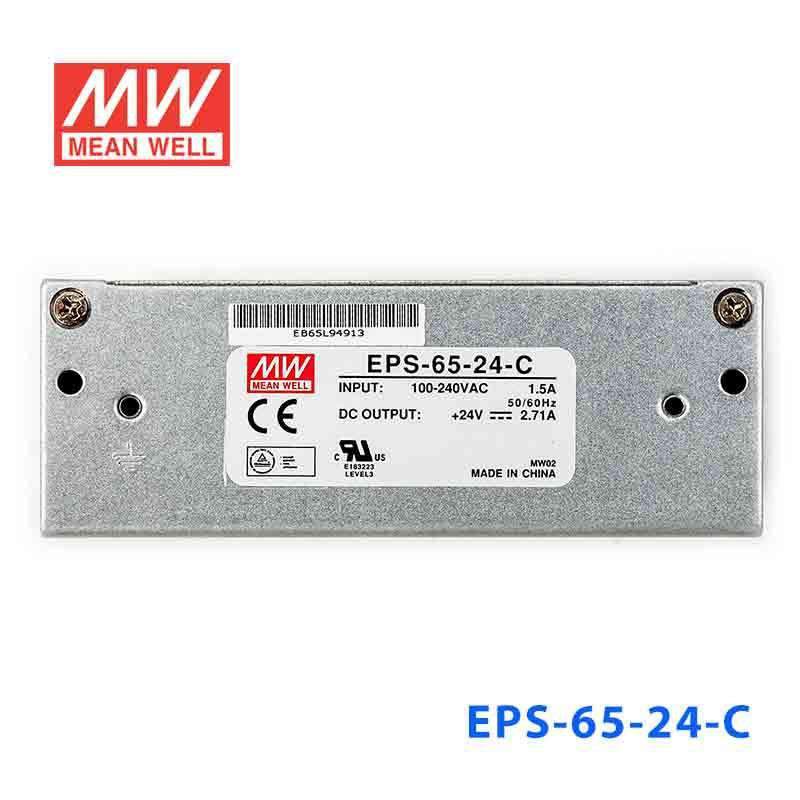

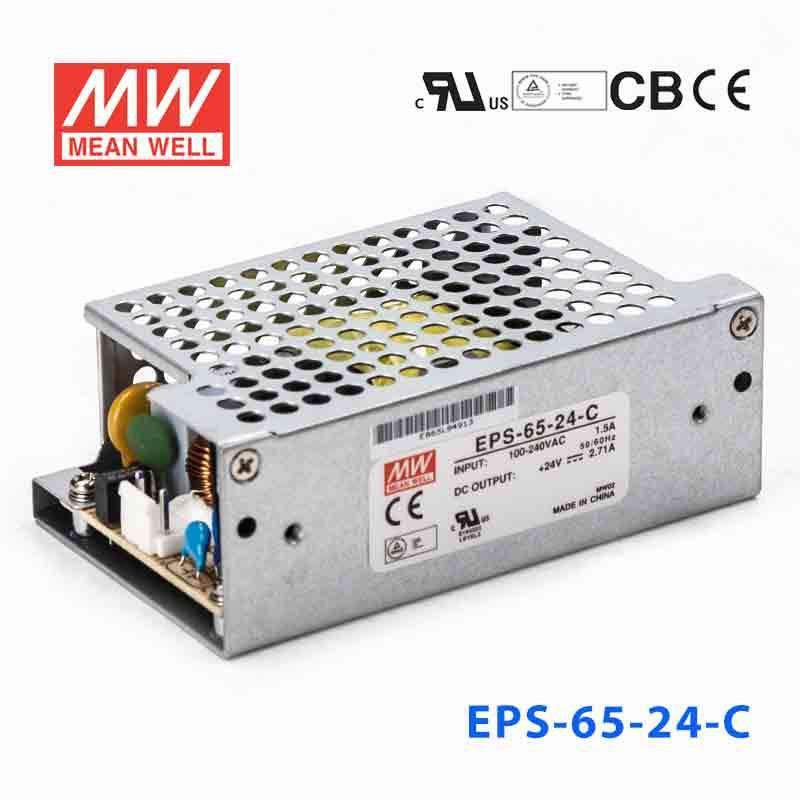

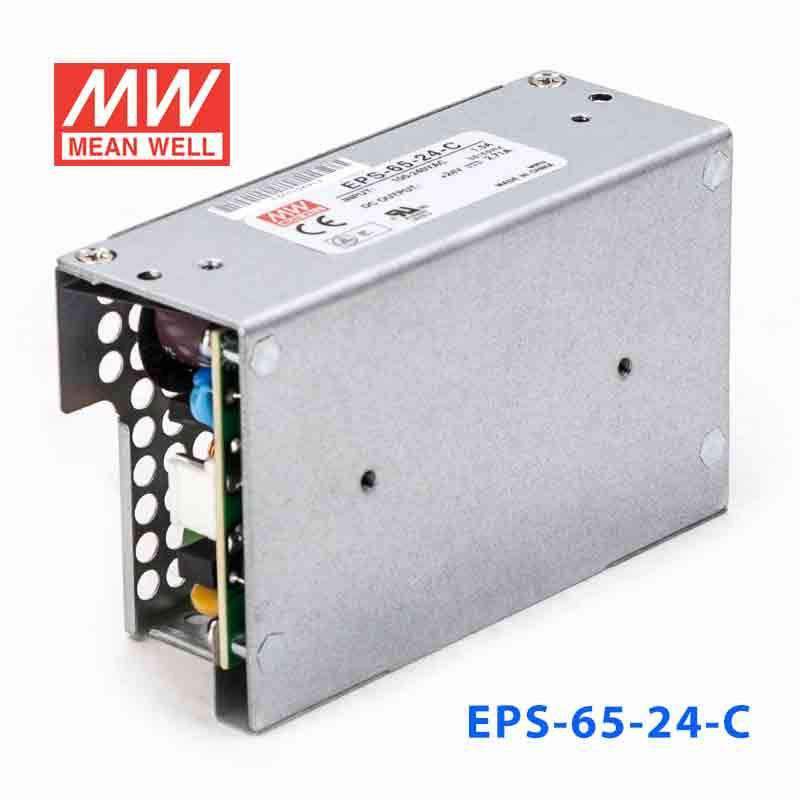

Mean Well EPS-65-24-C Power Supply 65W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-65-24-C Power Supply 65W 24V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
| Case available |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~160% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~135% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+4P/3.96mm pitch, JST B3P/B4P-VH |
| Dimension (LxWxH) | PCB: 101.6x50.8x29 ; Case: 103.4x62x37 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.04 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-65-24-C in a 24V machine control or automation build?
Yes, it delivers constant voltage 24V output up to 2.71A and 65.04W, which suits smaller machine control or automation builds that use a 24V DC rail. It is most appropriate where the full connected load remains within that output envelope.
Is this power supply suitable for 24V industrial I/O and monitoring devices?
It can be used for 24V industrial I/O and monitoring devices when their combined demand does not exceed 2.71A or 65.04W. This fits lower-power 24V control electronics better than higher-current field loads.
Can the EPS-65-24-C power 24V embedded systems or OEM electronics?
Yes, for 24V embedded or OEM electronics that need constant voltage input, this unit provides up to 65.04W and 2.71A. The 103.4 × 62.0 × 37.0 mm housing may also be relevant where mechanical space is part of product design.
Does the EPS-65-24-C support cold or hot operating conditions?
The specified operating temperature range is -30°C to +70°C, so the electrical rating covers both low and high ambient conditions within that span. The provided specs do not include an IP rating, so ingress protection for outdoor exposure is not stated.
What is the difference between the EPS-65-24 and EPS-65-24-C?
Both models are rated at 24V, 2.71A, and 65.04W with a 90-264VAC input and a -30°C to +70°C operating temperature range. In the supplied specs, the difference is physical size and weight: EPS-65-24 is 101.6 × 50.8 × 29.0 mm at 0.15 kg, while EPS-65-24-C is 103.4 × 62.0 × 37.0 mm at 0.3 kg.
