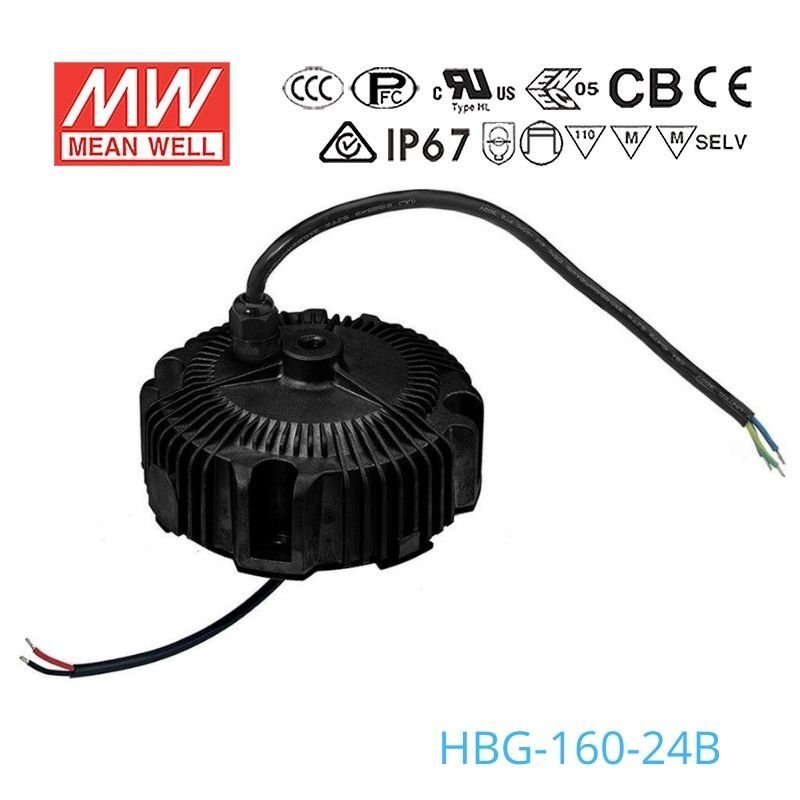

Mean Well HBG-160-24B Power Supply 160W 24V - Dimmable 6.5A
Overview
HBG-160-24B is the 24V output model of this series: rated current 6.5A, rated power 156W, typical efficiency 92%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).
HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Function options: 3 in 1 dimming
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.2
- 14.4 ~ 24V
- RATED CURRENT
- 6.5A
- RATED POWER
- 156W
- RIPPLE & NOISE (max.)Note.3
- 200mVp-p
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
- HOLD UP TIME (Typ.)
- 12ms /115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
- EFFICIENCY (Typ.)Note.7
- 92%
- AC CURRENT (Typ.)
- 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28 ~ 34V
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ151.68mm *66.5mm (D * H)
- PACKING
- 1.53Kg; 8pcs/13.8Kg/1.37CUFT
Certifications & ratings
- Type
- Type HL
MODEL ENCODING
- Blank
- Io fixed; IP67
- A
- Io adjustable through built-in potentiometer; IP65
- B (this model)
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
- DA
- DALI control technology; IP67
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Test reports1
FAQ
Can I use the Mean Well HBG-160-24B for 24V LED strip lighting?
Yes, this LED driver can be used for 24V LED strip lighting if the strip is rated for 24V and the total load stays within 156W and 6.5A. It is also IP67 rated, so it is suited to wet or dusty environments where a sealed driver is needed.
Is the HBG-160-24B suitable for LED signage or channel letter lighting?
It can be a fit for 24V LED signage or channel letter systems when the lighting load matches the driver's 24V output and remains at or below 156W. The wide 90-305VAC input and IP67 waterproof rating also make it suitable for signage projects exposed to varying power conditions or outdoor weather.
Can this power supply be used for high bay or low bay LED lights?
Yes, this model is designed for high bay and low bay light applications and uses a circular housing intended for that style of fixture. It delivers 24V output at up to 6.5A with 156W total power, so the light must match those electrical requirements.
Can I use the HBG-160-24B in outdoor or wet locations?
Yes, the unit is IP67 waterproof, so it is built for outdoor or wet-location use where water and dust resistance are required. Its specified case temperature (Tcase) range is -40°C to +85°C, which supports use in very cold or hot environments, with output derating at higher temperatures.
How much 24V LED strip can the HBG-160-24B run?
The driver can supply up to 156W total at 24V. To estimate strip length, divide 156W by your strip's rated power per meter, then make sure the total current also stays within 6.5A, so you should check your strip rated power per meter before sizing.
What is the difference between the HBG-160-24B and other HBG 24V models in the same series?
Within the HBG-160 series, the 24V models (HBG-160-24, -24A, -24B, -24AB and -24DA) are all rated 156W at 6.5A with a 14.4-24V constant current range. They differ in control: the A type has a built-in current-adjust potentiometer, the B type has 3-in-1 dimming, the AB type has both, and the DA type uses DALI. This HBG-160-24B is the 3-in-1 dimming version.
