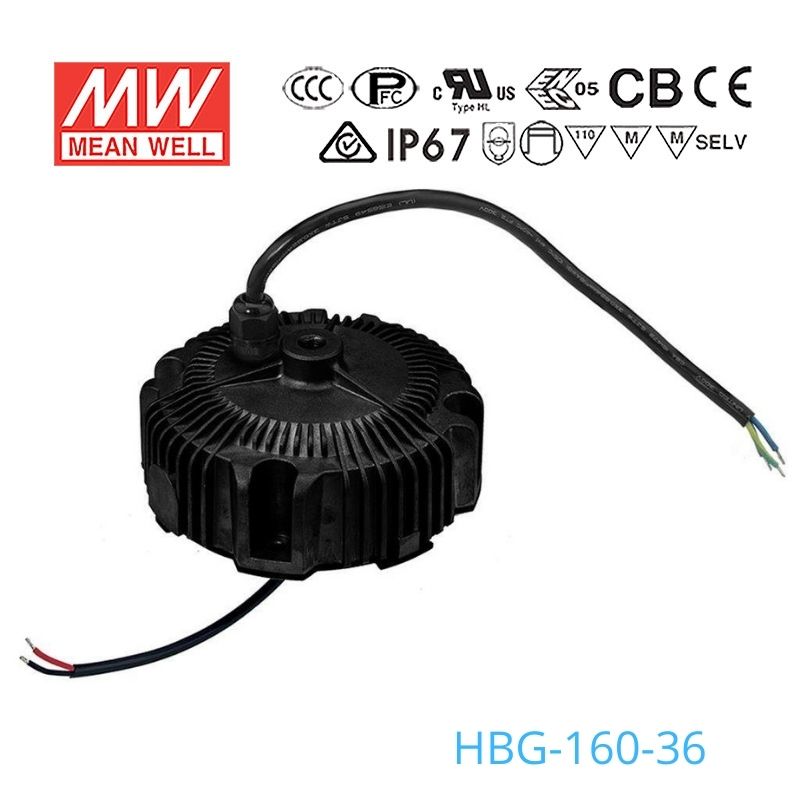

Mean Well HBG-160-36 Power Supply 160W 36V 4.4A
Overview
HBG-160-36 is the 36V output model of this series: rated current 4.4A, rated power 158.4W, typical efficiency 92%. Type Blank: Io fixed (IP67).
HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit indoor and outdoor applications.
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 36V
- CONSTANT CURRENT REGIONNote.2
- 21.6 ~ 36V
- RATED CURRENT
- 4.4A
- RATED POWER
- 158.4W
- RIPPLE & NOISE (max.)Note.3
- 300mVp-p
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
- HOLD UP TIME (Typ.)
- 12ms /115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
- EFFICIENCY (Typ.)Note.7
- 92%
- AC CURRENT (Typ.)
- 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 41 ~ 47V
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ151.68mm *66.5mm (D * H)
- PACKING
- 1.53Kg; 8pcs/13.8Kg/1.37CUFT
Certifications & ratings
- Type
- Type HL
MODEL ENCODING
- Blank (this model)
- Io fixed; IP67
- A
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
- DA
- DALI control technology; IP67
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Test reports1
FAQ
Can I use the HBG-160-36 for a 36V LED sign or illuminated display?
It can fit a 36V lighting load if the fixture stays within 158.4W and 4.4A. The IP67 waterproof rating also makes it suitable for outdoor or wet-location lighting applications.
Is the HBG-160-36 a good match for a 36V high bay or low bay fixture?
Yes, the series is specified for high/low bay light use, and this model provides 36V output up to 158.4W. The connected load should operate within the 21.6-36V constant current range.
Can this 36V driver be used for outdoor architectural lighting?
It can be used with a compatible 36V lighting load up to 158.4W. Its IP67 waterproof enclosure and -40°C to +85°C case temperature (Tcase) range support exposed outdoor conditions when the fixture matches the 36V output or the 21.6-36V CC range.
How much 36V LED strip can the HBG-160-36 support?
Use the strip-length formula 158.4W divided by the strip's rated watts per meter. For example, maximum length = 158.4 ÷ strip W/m, but check your strip rated power per meter and confirm it is a 36V load within 158.4W and 4.4A.
Is the HBG-160-36 suitable for wet or outdoor installations?
Yes, this model is rated IP67 waterproof for dust-tight and wet-location use. It is also specified for a case temperature (Tcase) of -40°C to +85°C, which helps in harsher environments.
What are the differences between the HBG-160 24V, 36V, 48V, and 60V models?
The HBG-160-24 is 156W at 6.5A with a 14.4-24V CC range, while the HBG-160-36 is 158.4W at 4.4A with a 21.6-36V CC range. The HBG-160-48 is 158.4W at 3.3A with a 28.8-48V CC range, and the HBG-160-60 is 156W at 2.6A with a 36-60V CC range.
