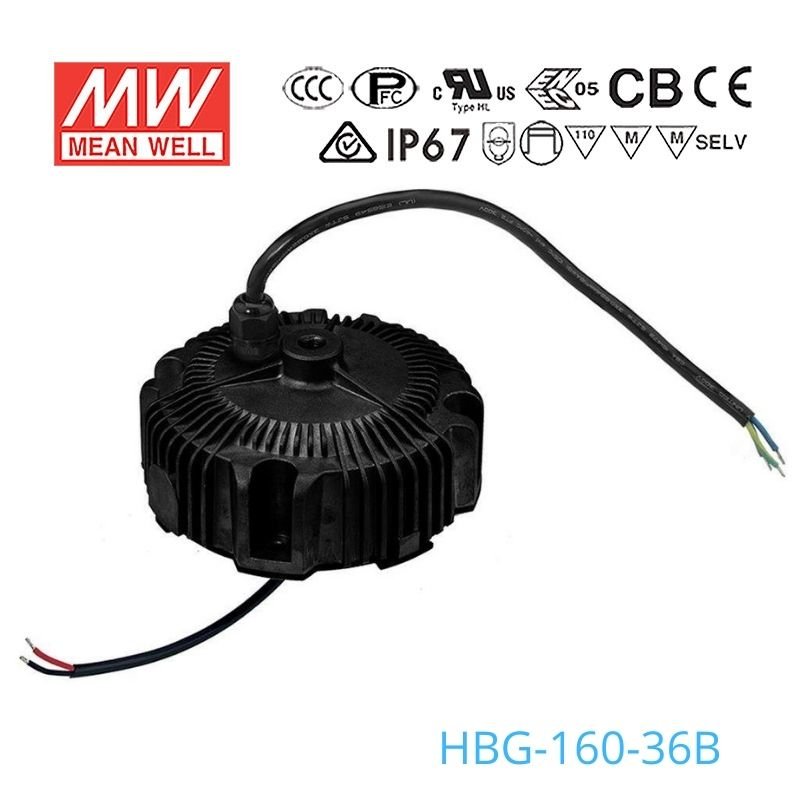

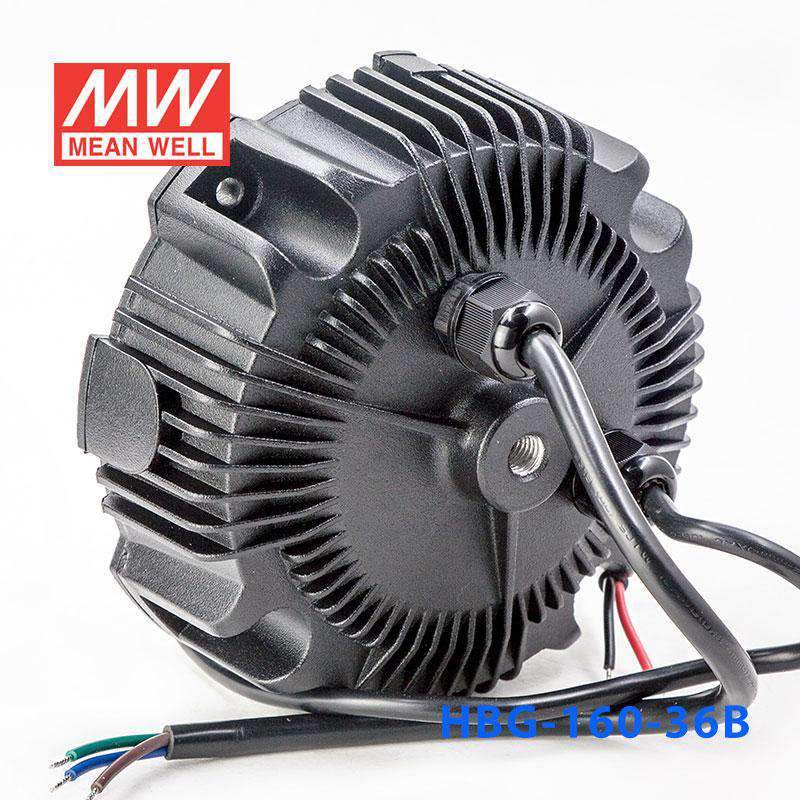

Mean Well HBG-160-36B Power Supply 160W 36V - Dimmable
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage36 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-160-36B for a 36V outdoor sign or facade lighting load?
It can fit a 36V lighting load if the total demand stays within 158.4W and 4.4A. Its IP67 waterproof rating makes it suitable for outdoor or wet-location lighting where a protected enclosure is not available.
Is the HBG-160-36B appropriate for a 36V high bay fixture in an industrial space?
Yes, the HBG series is specified for high/low bay light use, and this model provides up to 158.4W at 36V. The load needs to operate within the 21-36V constant current range.
Can this driver be used for exterior architectural lighting in cold or hot conditions?
This model is rated for -40°C to +85°C operation and has an IP67 waterproof enclosure. That combination supports outdoor lighting use when the 36V load remains within 158.4W and 4.4A.
How do I estimate the supported length of a 36V LED strip with the HBG-160-36B?
Use the driver's maximum wattage divided by the strip's watts per meter: 158.4 ÷ strip W/m. Check your strip rated power per meter and confirm the strip is a 36V load that fits within the 21-36V CC range.
Is the HBG-160-36B suitable for wet or washdown environments?
Yes, it is rated IP67 waterproof, which is intended for dust-tight and wet-location use. The specified operating temperature range is -40°C to +85°C, so both enclosure rating and temperature range support harsher environments.
How does the HBG-160-36B compare to the other HBG-160 voltage models?
The 24V version is 156W at 6.5A with a 14-24V CC range, and the 36V version including this model is 158.4W at 4.4A with a 21-36V CC range. The 48V version is 158.4W at 3.3A with a 28-48V CC range, while the 60V version is 156W at 2.6A with a 36-60V CC range.
