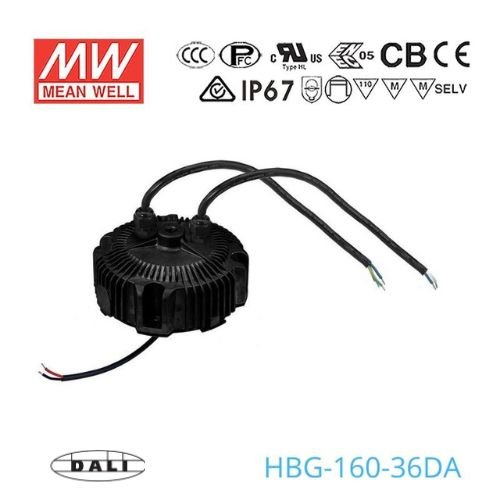

Mean Well HBG-160-36DA Power Supply 160W 36V - DALI
Description
Description
Features
| Constant Voltage + Constant current mode output |
| Circular plastic housing with class I design |
| Built-in active PFC function |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~417VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | φ151.68x66.5mm |
| Packing | 1.53Kg; 8pcs/13.8Kg/1.37CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage36 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-160-36DA for a high bay or low bay LED light?
Yes, this LED driver is intended for high and low bay light use. It delivers constant current at 4.4A with a 21-36V constant-current range and up to 158.4W, which matches fixtures designed for those electrical requirements. Its circular shape and metal case are also part of the HBG series design for this type of lighting.
Is this a good choice for outdoor or wet-location lighting?
It is suitable for wet or outdoor environments because it has an IP67 waterproof rating. The operating temperature range is -40°C to +85°C, so it is designed for demanding environmental conditions. You still need the connected LED load to match the driver's 21-36V constant-current range and 4.4A output.
Can I use this driver for signage or architectural lighting?
Yes, if the lighting load is a constant-current LED system that operates within 21-36V at 4.4A. The 158.4W output capacity and IP67 rating make it relevant for signage or architectural lighting where environmental sealing matters. Check that the LED modules are specified for constant-current operation, not just a nominal 36V label.
Can this power a 36V LED strip or linear lighting product?
It can only be used if the strip or linear product is designed for constant-current operation at 4.4A within a 21-36V range. For sizing, the driver provides up to 158.4W, so the maximum supported length is 158.4W divided by your strip's rated power per meter. Check your strip rated power per meter before estimating length.
How does the HBG-160-36DA compare with other HBG-160 DA models?
Within the HBG-160 DA group, the HBG-160-24DA is 156W with a 14-24V constant-current range at 6.5A, the HBG-160-36DA is 158.4W with a 21-36V range at 4.4A, the HBG-160-48DA is 158.4W with a 28-48V range at 3.3A, and the HBG-160-60DA is 156W with a 36-60V range at 2.6A. The main differences are output voltage window, output current, and total wattage.
