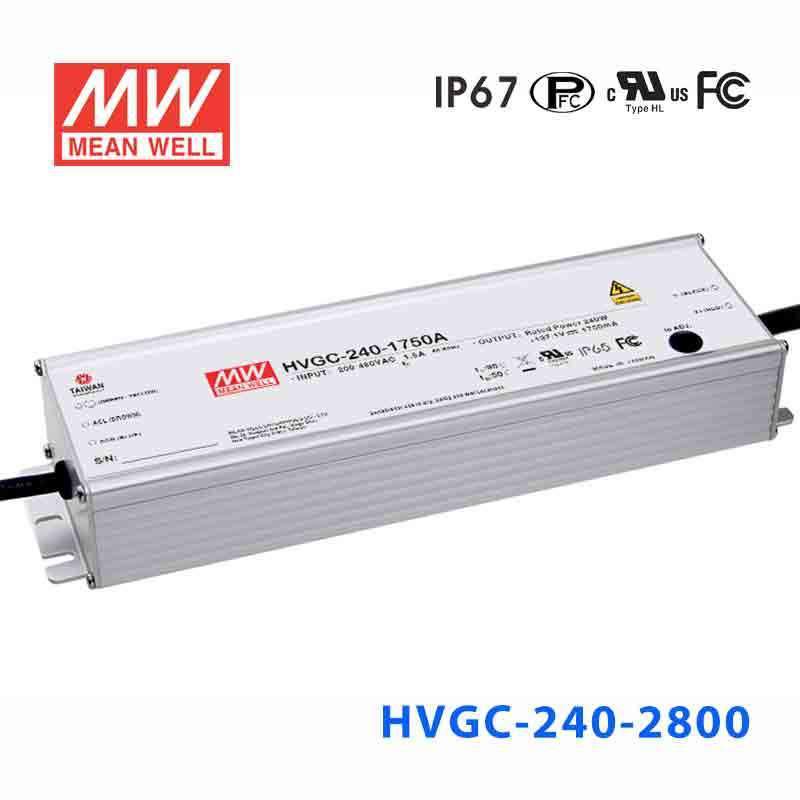

Mean Well HVGC-240-2800A Power Supply 240W 2800mA - Adjustable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-240-2800A

$89.87 USD ~~$335.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

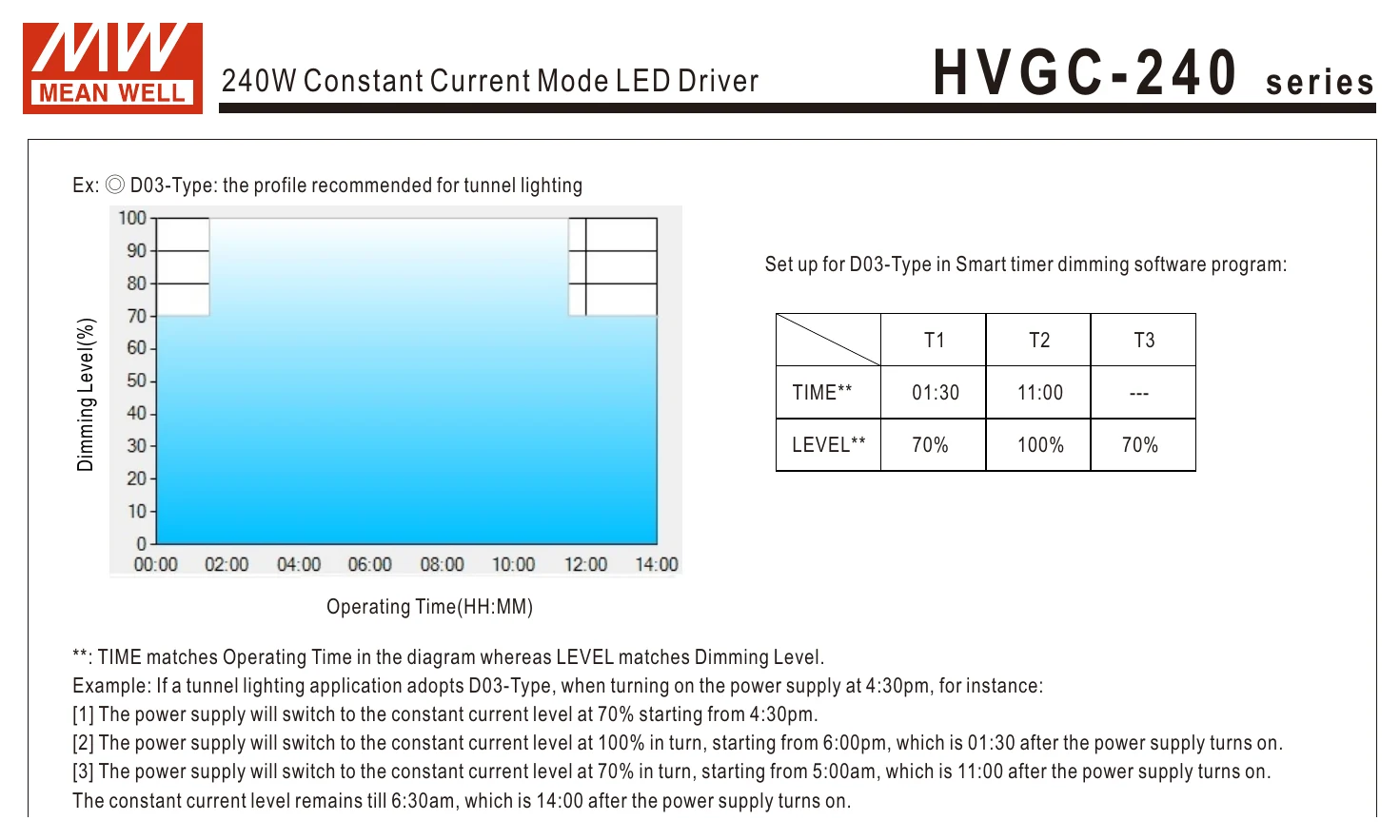

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

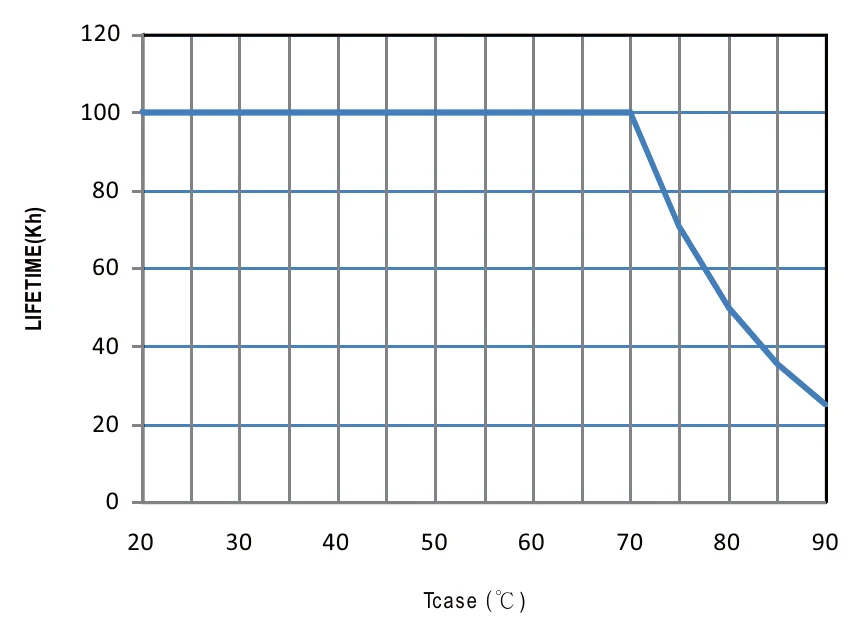

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection	110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

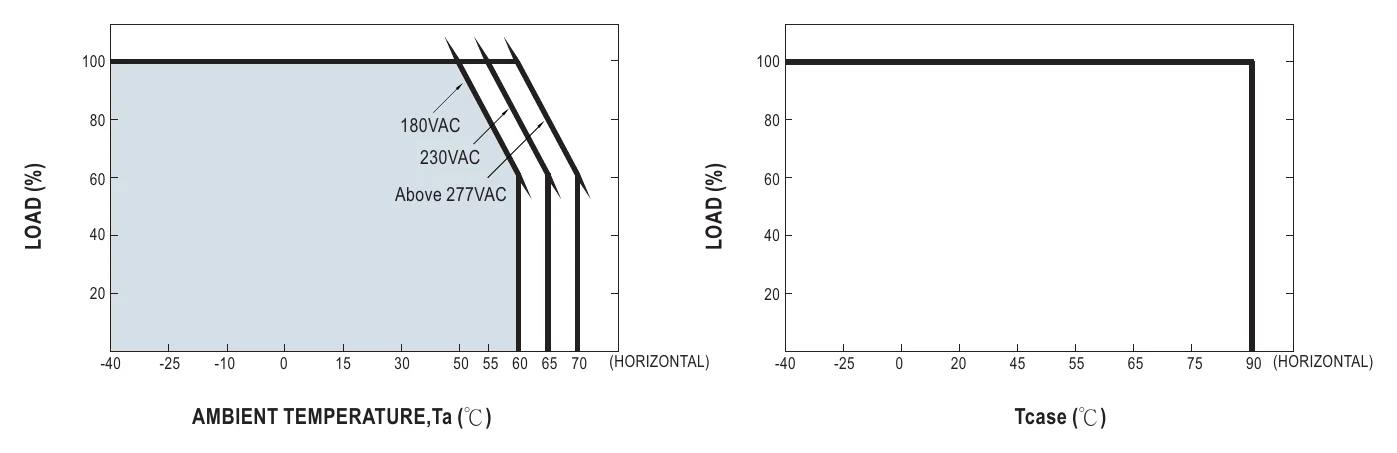

Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B

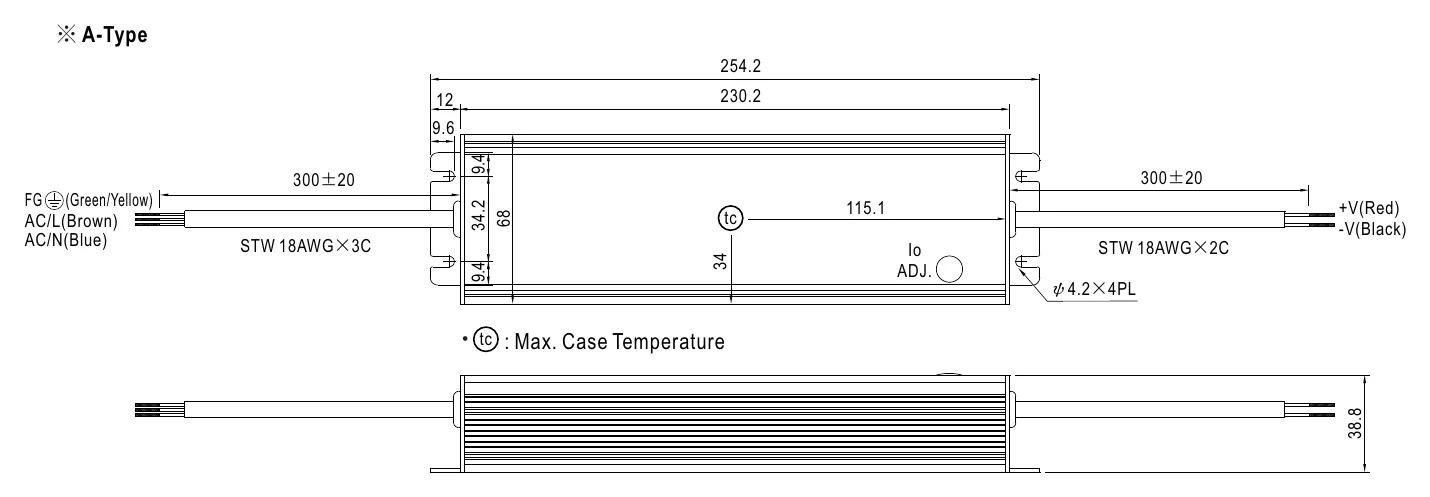

Dimension (LxWxH)(mm)	189 x 61.5 x 36.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

240 Watt
Output Voltage

88 Volt
Rated Current

2.8 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.98 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-240-2800A for LED downlights that need higher drive current?

Yes, if the downlight is designed for 2800mA constant current input and the LED load falls within the 42-85V CC range. This is a 240W constant current driver, so it is not intended for constant voltage LED fixtures.

Is the HVGC-240-2800A suitable for signage modules or compact LED arrays?

It can be suitable for signage modules or compact LED arrays built around 2800mA constant current operation. The LED load must stay within the 42-85V constant current range, and the number of LEDs depends on the forward voltage of each LED.

Can this model be used in dusty or lightly exposed locations?

Yes, its IP65 water-resistant rating is suited to environments where protection from dust and water spray is needed. It is not rated the same as the IP67 versions in the family, so environment matching should follow the enclosure requirement.

Is the HVGC-240-2800A a match for high-current small LED arrays?

It is a match when the array requires 2800mA constant current and the total LED forward voltage stays inside 42-85V. With 240W available, it is intended for higher-current loads than lower-current HVGC models.

How do I check LED compatibility with the HVGC-240-2800A?

The LED load should require 2800mA constant current and have a combined forward voltage within 42-85V. The exact number of LEDs depends on the forward voltage of each LED, so this should be evaluated by voltage range rather than by a stated LED count.

How does the HVGC-240-2800A compare with the other 240W HVGC current options?

The 240W HVGC family includes 700A at 171-342V, 1050A at 114-228V, 1400A at 85-171V, 1750A at 68-137V, 2100A at 57-114V, 2800A at 42-85V, and 3500A at 34-68V. The HVGC-240-2800A is the 2800mA version with an 88V nominal output and a 42-85V CC range.
