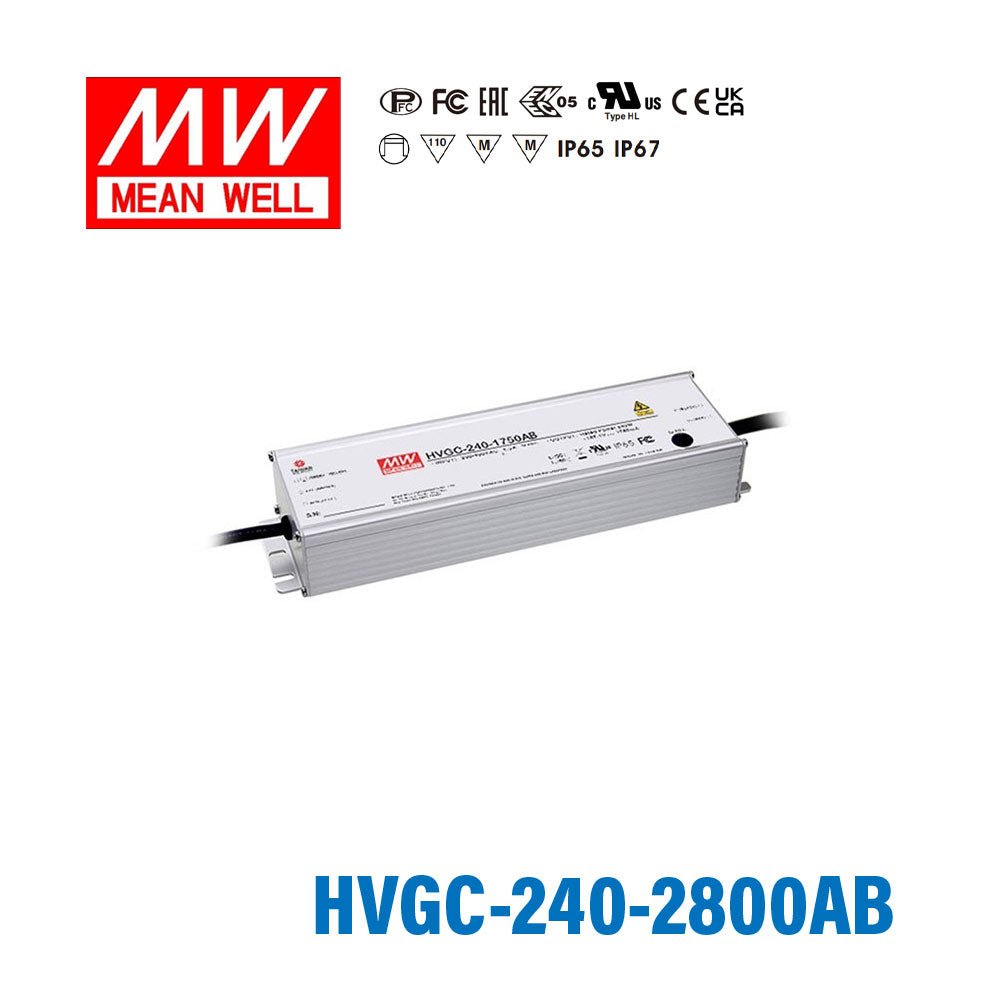

Mean Well HVGC-240-2800AB Power Supply 240W 2800mA - Adjustable and Dimmable

Name: Mean Well HVGC-240-2800AB Power Supply 240W 2800mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HVGC-240-2800AB
Price: 96.07 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-240-2800AB

$96.07 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-240-2800AB is the model of this series: rated current 2800mA, rated power 240W, typical efficiency 92.5%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

HVGC-240 series is a 240W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-240 operates from 180~528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

HVGC-240-2800ABSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 2800mA
RATED POWER: 240W
CONSTANT CURRENT REGION^Note.2: 42.9 ~ 85.7V
OPEN CIRCUIT VOLTAGE (max.): 88V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1400~2800mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 92.5%
AC CURRENT (Typ.): 0.76A / 347VAC 0.56A / 480VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth= 532μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 90 ~ 99V Shut down o/p voltage with re-power on to recovery
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧80%), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1769.1K hrs min. Telcordia SR-332 (Bellcore) ; 145.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 254.2*68*38.8mm (L*W*H)
PACKING: 1.35Kg; 12pcs/17.2Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request; IP67
D2: Built-in Smart timer dimming and programmable function; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.
12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-240-2800AB Block Diagram — Block Diagram

HVGC-240-2800AB DIMMING OPERATION — DIMMING OPERATION

HVGC-240-2800AB H V G C - 2 4 0 series — H V G C - 2 4 0 series

HVGC-240-2800AB OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

HVGC-240-2800AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-240-2800AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVGC-240-2800AB MECHANICAL SPECIFICATION ※ AB-Type — MECHANICAL SPECIFICATION ※ AB-Type

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVGC-240-2800AB datasheetHVGC-240-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates1

FCC Certificate(HVGC-240)(EN) PDF Download

Test reports1

Test Report(HVGC-240-2800)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-240-2800AB for commercial LED downlights?

Yes, if the fixture is designed for 2800mA constant current drive and the LED load stays within the 42.9-85.7V constant current range. Because this is a constant current model, it should not be substituted for a constant voltage LED power supply.

Is the HVGC-240-2800AB suitable for signage modules with dimming needs?

It can be used for signage modules that require 2800mA constant current and operate within the 42.9-85.7V CC range. This AB version is adjustable and dimmable, which can matter when the project needs both functions in the same 240W driver class.

Can this driver run compact high-output LED arrays?

Yes, when the LED array is built for 2800mA constant current operation and its total forward voltage fits inside 42.9-85.7V. The number of LEDs depends on the forward voltage of each LED, so compatibility is determined by the voltage window rather than by a fixed array size.

Is the HVGC-240-2800AB intended for indoor or outdoor use?

The HVGC-240 series is IP65 or IP67 approved, which supports use where dust protection and resistance to water spray are needed. It is specified for a working case temperature (Tcase) of -40°C to +90°C, with load derating at higher temperatures.

How do I verify whether my LED load matches the HVGC-240-2800AB?

Check that the load requires 2800mA constant current and that the combined forward voltage is within the 42.9-85.7V CC output range. If the LED product expects constant voltage instead, this driver is not the correct electrical match even if the wattage is 240W.

What are the 240W HVGC sibling options around this model?

The 240W HVGC current options are 700A with 171.4-342.8V, 1050A with 114.3-228.6V, 1400A with 85.7-171.4V, 1750A with 68.5-137.1V, 2100A with 57.2-114.3V, 2800A with 42.9-85.7V, and 3500A with 34.3-68.6V. The HVGC-240-2800AB is the 2800mA adjustable and dimmable version in that group.
