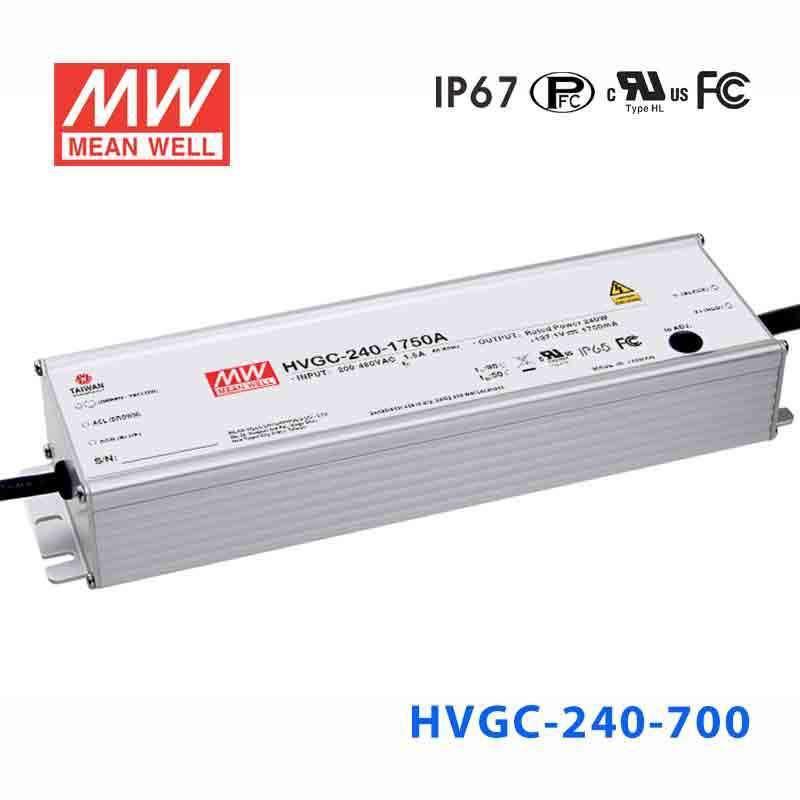

Mean Well HVGC-240-700B Power Supply 240W 700mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-240-700B

$94.95 USD ~~$343.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

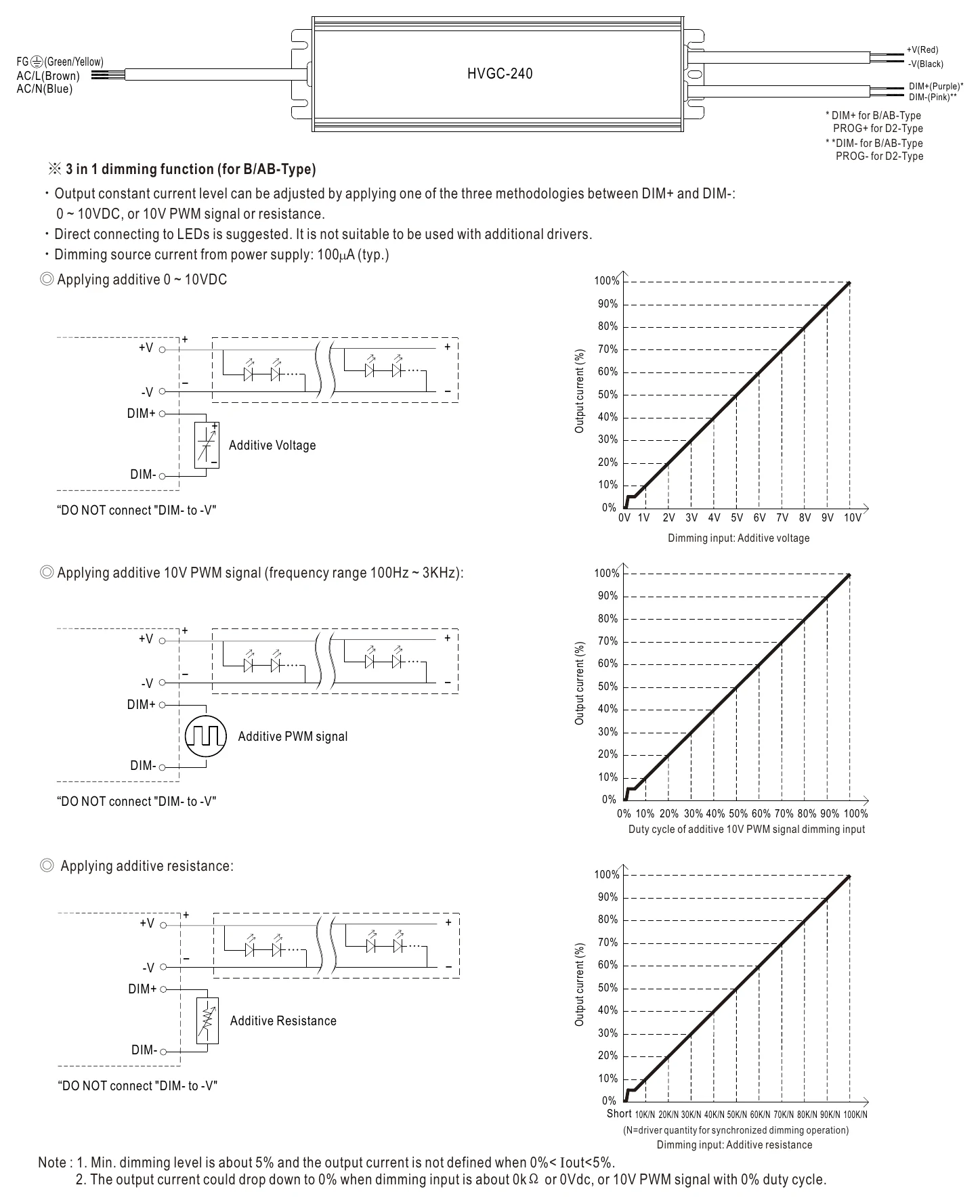

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection	110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm)	189 x 61.5 x 36.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

240 Watt
Output Voltage

354 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

0-10V,10V PWM,Resistance
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.98 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-240-700B for outdoor LED downlights with long LED strings?

Yes, if the downlight assembly requires constant current at 700mA and its combined LED forward voltage is within the 171-342V constant current range. This 240W driver is intended for current-driven LED loads, not constant voltage strips or modules. Its IP67 waterproof rating also makes it more suitable for exposed outdoor fixture environments.

Is this driver a fit for waterproof signage or display lighting arrays?

It can be, as long as the LED array is designed for 700mA constant current and the total forward voltage stays within 171-342V. That makes it relevant to higher-voltage series LED assemblies rather than the more common constant voltage signage systems. The IP67 enclosure rating is a practical advantage where the driver may face more direct moisture exposure.

Can the HVGC-240-700B run a series-connected small LED array in a harsh environment?

Yes, when the array is specified for 700mA constant current and the total forward voltage is within 171-342V. The unit is rated IP67 waterproof and for -40°C to +90°C operation, so it suits demanding locations better than lower-protection models. It should still only be used with constant current LED assemblies, not constant voltage loads.

How do I tell whether my LEDs are electrically compatible with this model?

Your LEDs must need 700mA constant current, and their combined forward voltage must operate within the 171-342V constant current range. The number of LEDs depends on the forward voltage of each LED, so there is no fixed LED quantity that always matches this driver. If the LED product is specified for constant voltage input, this is not the correct driver type.

What makes the HVGC-240-700B different for environmental exposure?

This version carries an IP67 waterproof rating, while IP65 variants are water-resistant rather than fully waterproof to that level. It also uses an aluminum casing and is rated for operation from -40°C to +90°C. Those specs make it better suited to outdoor or washdown-prone locations where a higher enclosure rating matters.

How does the HVGC-240-700B fit into the 240W HVGC family?

The 240W HVGC family spans 700mA at 171-342V, 1050mA at 114-228V, 1400mA at 85-171V, 1750mA at 68-137V, 2100mA at 57-114V, 2800mA at 42-85V, and 3500mA at 34-68V. The HVGC-240-700B is the 240W, 700mA, IP67 dimmable option in that group. Compared with the higher-current versions, it is intended for LED loads with a much higher total forward voltage.
