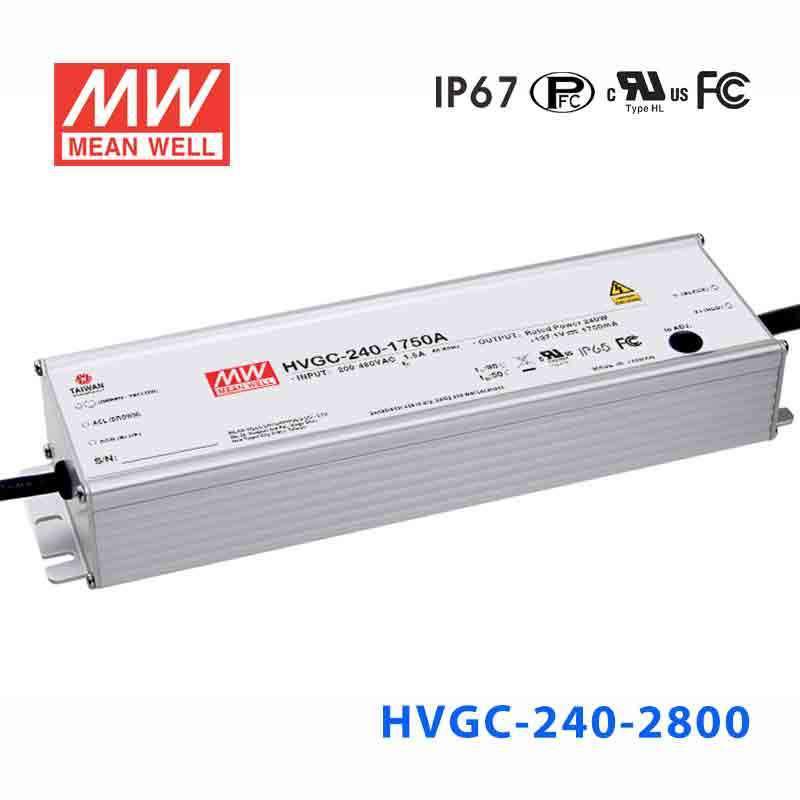

Mean Well HVGC-240-2800B Power Supply 240W 2800mA - Dimmable

Name: Mean Well HVGC-240-2800B Power Supply 240W 2800mA - Dimmable
Brand: Mean Well
SKU: HVGC-240-2800B
Price: 97.55 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-240-2800B

$97.55 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-240-2800B is the model of this series: rated current 2800mA, rated power 240W, typical efficiency 92.5%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

HVGC-240 series is a 240W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-240 operates from 180~528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

HVGC-240-2800BSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 2800mA
RATED POWER: 240W
CONSTANT CURRENT REGION^Note.2: 42.9 ~ 85.7V
OPEN CIRCUIT VOLTAGE (max.): 88V
CURRENT ADJ. RANGE: 1400~2800mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 92.5%
AC CURRENT (Typ.): 0.76A / 347VAC 0.56A / 480VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth= 532μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 90 ~ 99V Shut down o/p voltage with re-power on to recovery
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧80%), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1769.1K hrs min. Telcordia SR-332 (Bellcore) ; 145.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 254.2*68*38.8mm (L*W*H)
PACKING: 1.35Kg; 12pcs/17.2Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request; IP67
D2: Built-in Smart timer dimming and programmable function; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-240-2800B Block Diagram — Block Diagram

HVGC-240-2800B DIMMING OPERATION — DIMMING OPERATION

HVGC-240-2800B H V G C - 2 4 0 series — H V G C - 2 4 0 series

HVGC-240-2800B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

HVGC-240-2800B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-240-2800B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVGC-240-2800B MECHANICAL SPECIFICATION ※ B/D2-Type — MECHANICAL SPECIFICATION ※ B/D2-Type

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVGC-240-2800B datasheetHVGC-240-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates1

FCC Certificate(HVGC-240)(EN) PDF Download

Test reports1

Test Report(HVGC-240-2800)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the HVGC-240-2800B be used for outdoor LED downlights?

Yes, provided the downlight requires 2800mA constant current and the LED load stays within the 42.9-85.7V CC range. The HVGC-240 series' IP65/IP67 approval suits exposed or wet environments.

Is this driver suitable for weather-exposed signage modules?

It can be a suitable choice for signage modules built for 2800mA constant current operation with a total LED forward voltage inside 42.9-85.7V. The series' IP65/IP67 approval supports outdoor locations where a sealed driver is preferred.

Can I use the HVGC-240-2800B for compact LED arrays in harsh environments?

Yes, if the array needs 2800mA constant current and its load fits the 42.9-85.7V CC range. The working case temperature (Tcase) range of -40°C to +90°C and the series' IP65/IP67 approval support tougher environmental conditions.

Is the HVGC-240-2800B compatible with any 88V LED product?

No, 88V is the maximum open-circuit voltage, not a working output. The LED load must be a constant current load at 2800mA, with total forward voltage within 42.9-85.7V, while the number of LEDs depends on each LED's forward voltage.

What kind of environment is the HVGC-240-2800B rated for?

The HVGC-240 series is IP65 or IP67 approved and specified for a working case temperature (Tcase) of -40°C to +90°C, with load derating at higher temperatures, so it fits demanding indoor or outdoor conditions.

How does the HVGC-240-2800B compare with the other 240W HVGC current variants?

The 240W HVGC lineup includes 700A at 171.4-342.8V, 1050A at 114.3-228.6V, 1400A at 85.7-171.4V, 1750A at 68.5-137.1V, 2100A at 57.2-114.3V, 2800A at 42.9-85.7V, and 3500A at 34.3-68.6V. The HVGC-240-2800B is the dimmable 2800mA version, with an 88V maximum open-circuit voltage.
