Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

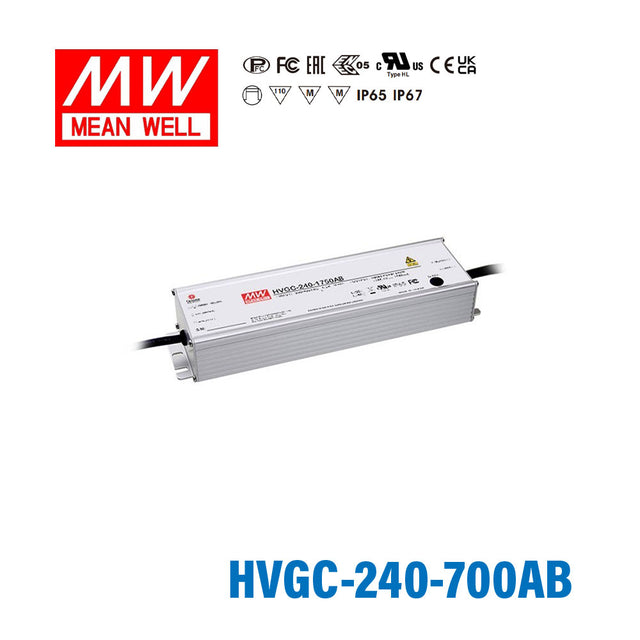

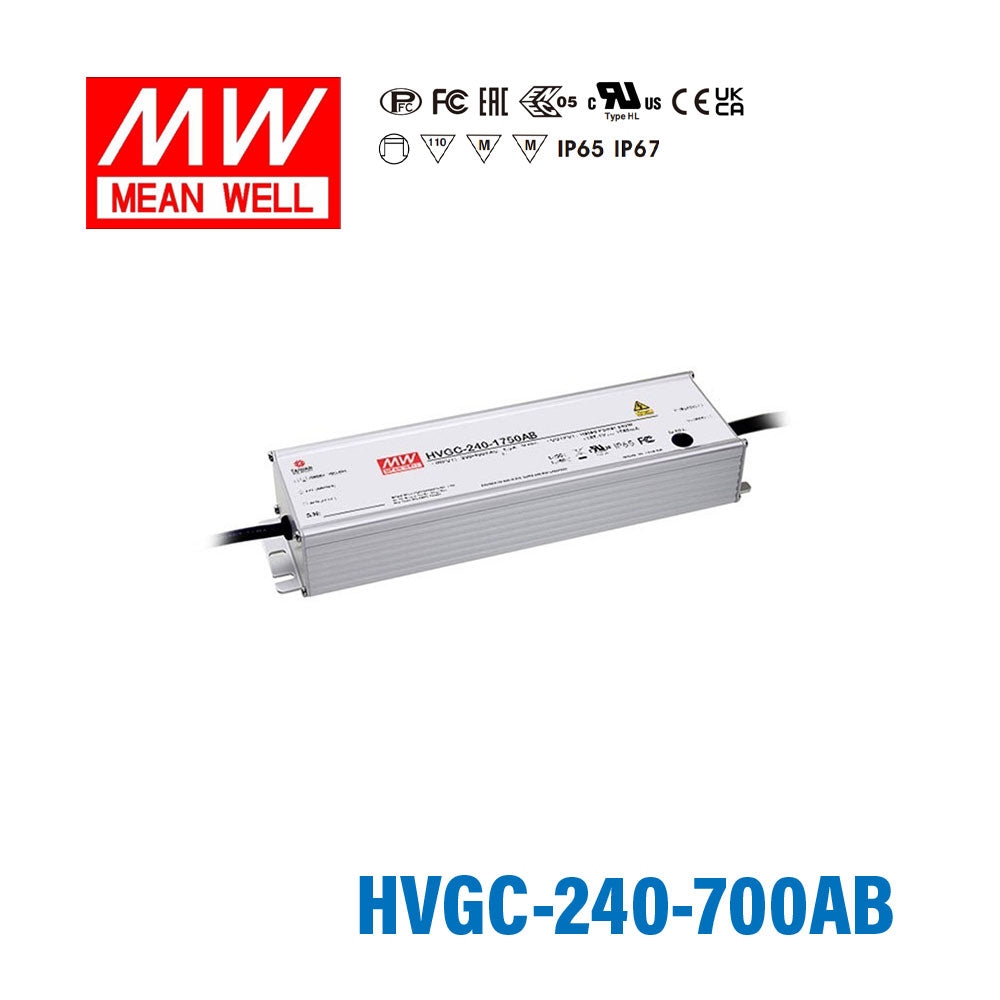

Mean Well HVGC-240-700AB Power Supply 240W 700mA - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-240-700AB

$98.77 USD ~~$347.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection	110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm)	189 x 61.5 x 36.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

240 Watt
Output Voltage

354 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

0-10V,10V PWM,Built-in Potentiometer,Resistance
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.98 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the HVGC-240-700AB be used for architectural LED downlights with long series strings?

Yes, when the fixture is designed for constant current operation at 700mA and the combined LED forward voltage is within 171-342V. This is a 240W constant current driver, so it is intended for current-driven LED assemblies rather than constant voltage loads. Long-series downlight arrays are a more typical match than low-voltage LED products.

Will this work for custom signage arrays that use constant current LEDs?

Yes, but only if the signage array is a 700mA constant current design and its total forward voltage falls within the 171-342V constant current range. Many signage systems use constant voltage supplies, so this model should only be used with current-regulated LED assemblies. The electrical match is defined by current and total forward voltage, not by sign size alone.

Is the HVGC-240-700AB suitable for a high-voltage small LED array project?

It can be, if the array requires 700mA constant current and the total LED forward voltage stays within 171-342V. The 240W rating gives it capacity for larger series-connected arrays than lower-power drivers. This makes it a fit for higher-voltage LED assemblies, not constant voltage strip systems.

What should I verify before pairing LEDs with the HVGC-240-700AB?

Check that the LED load is specified for constant current operation at 700mA and that its total forward voltage is within 171-342V during normal operation. The number of LEDs varies with the forward voltage of each LED, so compatibility should never be based on a fixed LED count. The driver's nominal output voltage is 354V, with a constant current operating window of 171-342V.

What kind of environment is this AB version intended for?

The HVGC-240-700AB is rated IP65 water-resistant, making it appropriate for indoor use and outdoor locations where resistance to dust and water jets is needed. It is also rated for -40°C to +90°C operation and uses an aluminum casing. Those specs make it suitable for demanding commercial or industrial LED fixture environments.

What other 240W HVGC models are available if I need a different current range?

At 240W, the HVGC series offers 700mA with 171-342V, 1050mA with 114-228V, 1400mA with 85-171V, 1750mA with 68-137V, 2100mA with 57-114V, 2800mA with 42-85V, and 3500mA with 34-68V constant current ranges. The HVGC-240-700AB is the 700mA adjustable and dimmable variant in that lineup. Model selection depends on the LED current requirement and the total forward voltage range of the load.
