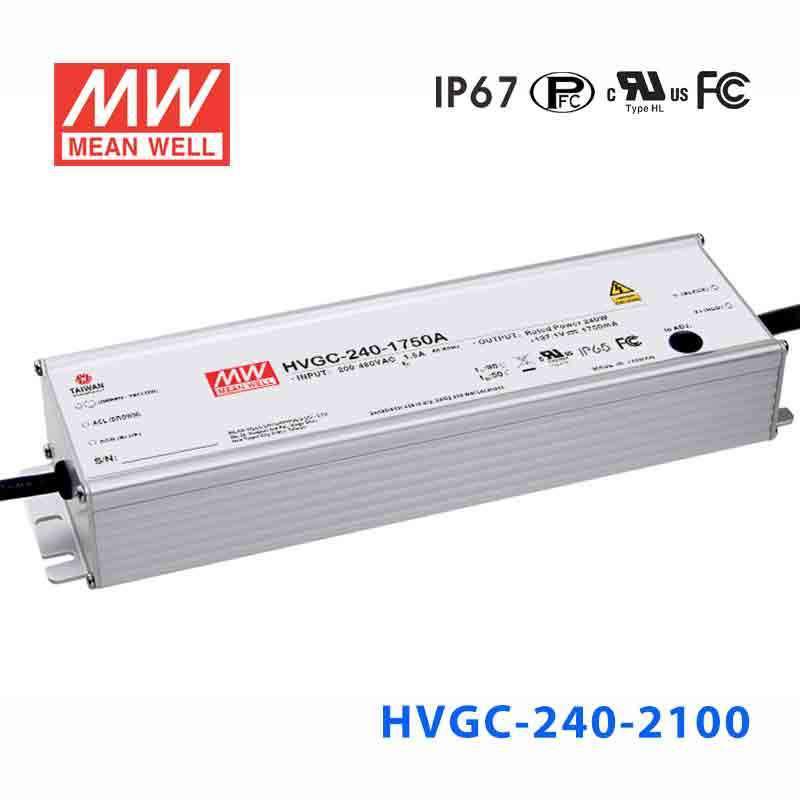

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well HVGC-240-2100B Power Supply 240W 2100mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-240-2100B

$84.59 USD ~~$343.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection	110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm)	189 x 61.5 x 36.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

240 Watt
Output Voltage

117 Volt
Rated Current

2.1 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

0-10V,10V PWM,Resistance
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.98 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-240-2100B for high-power LED downlights?

Yes, if the downlight requires a constant current driver at 2100mA and the total forward voltage of the LED load stays within the 57-114V constant current range. This 240W model is designed for constant current operation, so it is not the right choice for constant voltage LED products.

Is the HVGC-240-2100B suitable for driving signage modules or small LED arrays?

It can be used for signage modules or small LED arrays when the assembly is built for 2100mA constant current operation and the load falls inside the 57-114V CC range. The exact number of LEDs depends on the forward voltage of each LED, not on a fixed LED count.

Can this driver power outdoor LED lighting systems?

Yes, the IP67 waterproof rating supports use in wet or exposed environments, and the operating temperature range is -40°C to +90°C. The aluminium casing also suits harsher conditions than an indoor-only driver.

Is the HVGC-240-2100B a good fit for large constant current LED arrays?

It is a fit when the array needs 2100mA constant current and up to 240W, with total LED forward voltage within 57-114V. If the load is a constant voltage product, this driver is not the correct match even if the wattage looks similar.

How do I know if my LED load is compatible with the HVGC-240-2100B?

Match the LED load to 2100mA constant current and make sure the combined forward voltage stays within the 57-114V CC output range. The number of LEDs that can be driven depends on each LED's forward voltage, so compatibility should be checked by voltage range rather than by a fixed LED quantity.

What is the difference between the HVGC-240 current options in this series?

Within the 240W HVGC range, the main variants are 700A with 171-342V, 1050A with 114-228V, 1400A with 85-171V, 1750A with 68-137V, 2100A with 57-114V, 2800A with 42-85V, and 3500A with 34-68V constant current ranges. The HVGC-240-2100B sits in the middle with 2100mA output, 57-114V CC range, and 240W power.
