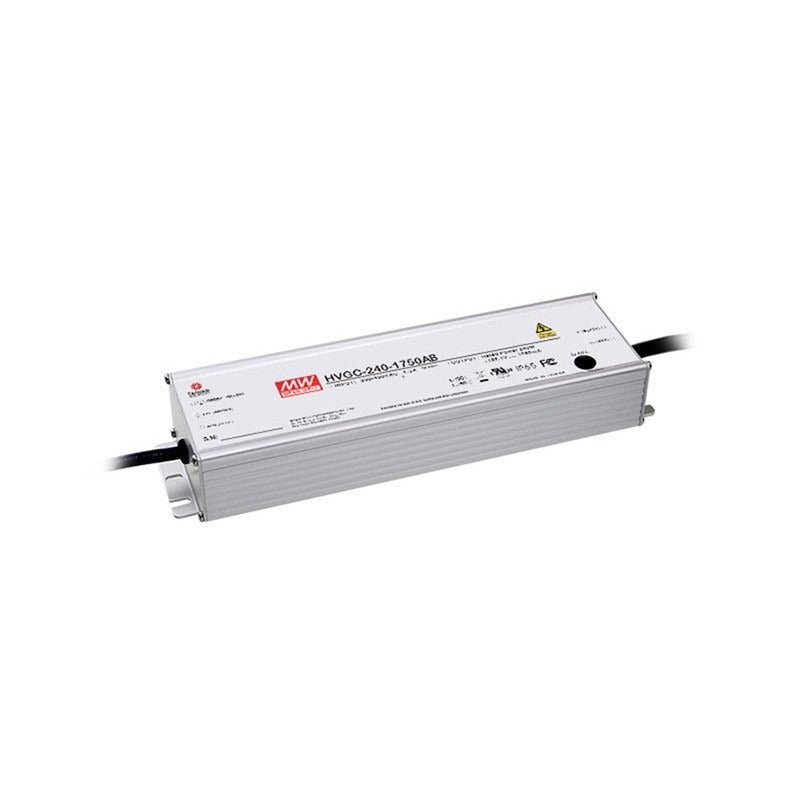

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

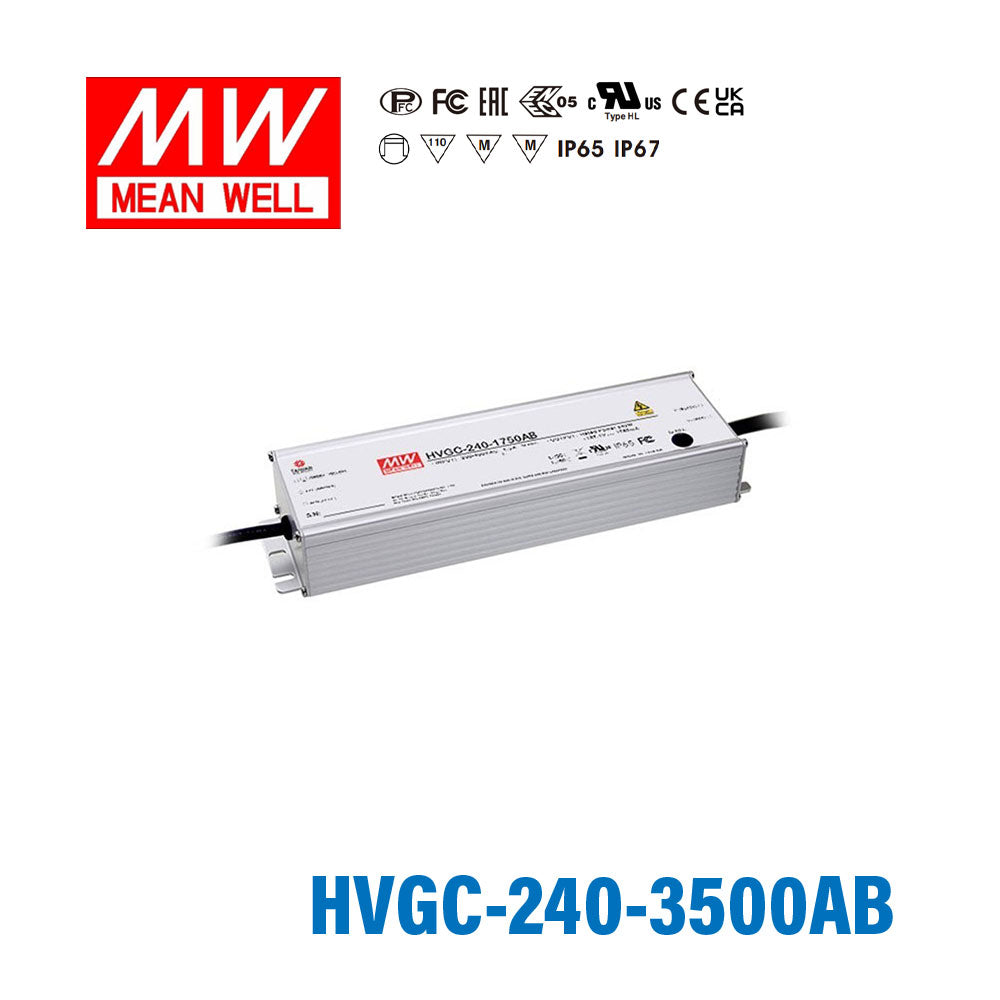

Mean Well HVGC-240-3500AB Power Supply 240W 3500mA - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-240-3500AB

$98.77 USD ~~$347.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection	110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm)	189 x 61.5 x 36.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

240.1 Watt
Output Voltage

71 Volt
Rated Current

3.5 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

0-10V,10V PWM,Built-in Potentiometer,Resistance
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.98 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-240-3500AB for a high-power LED downlight array?

Yes, if the downlight array is designed for a constant current driver at 3500mA and its combined LED forward voltage falls within the 34-68V constant current range. This model is a 240.1W constant current driver, so it is intended for LED loads that regulate by current rather than constant voltage. It is not the right choice for constant voltage LED strips or modules.

Is this driver suitable for signage modules or custom lightbox LED arrays?

It can be suitable for signage modules or custom LED arrays only when the load is a constant current 3500mA design and the total forward voltage stays within 34-68V. Many signage products use constant voltage power supplies instead, so the key match is current-regulated LEDs, not just wattage. The 240.1W rating gives it capacity for larger high-current LED assemblies within that voltage window.

Can the HVGC-240-3500AB run a COB LED or small LED array for industrial or commercial fixtures?

Yes, that is a typical constant current use case when the COB or LED array requires 3500mA and its forward voltage lands in the 34-68V CC range. Because the unit is rated IP65 and operates from -40°C to +90°C, it also fits demanding indoor or sheltered outdoor fixture environments. The aluminum casing supports use in more robust fixture builds.

How do I know if my LED load is compatible with this 3500mA driver?

The LED load needs to be specified for constant current operation at 3500mA, and the combined forward voltage must stay within 34-68V during operation. The number of LEDs depends on the forward voltage of each LED, so compatibility is determined by total LED voltage rather than a fixed LED count. Its listed output voltage is 71V, but the constant current working range is 34-68V.

What conditions is the HVGC-240-3500AB built for?

This version is rated IP65 water-resistant, so it is suited to indoor use and outdoor locations where resistance to dust and water jets is needed, but it is not the same as a fully waterproof IP67 model. It is specified for -40°C to +90°C operation and uses an aluminum casing for a more durable enclosure. The wide 180-528VAC input range also supports installations across varied mains systems.

How does the HVGC-240-3500AB compare with other 240W HVGC constant current models?

Within the 240W HVGC range, the main current and constant current voltage options are 700mA at 171-342V, 1050mA at 114-228V, 1400mA at 85-171V, 1750mA at 68-137V, 2100mA at 57-114V, 2800mA at 42-85V, and 3500mA at 34-68V. The HVGC-240-3500AB is the highest-current, lowest-voltage version in that 240W group, rated at 240.1W. Selection is based on the current your LED load requires and the total forward voltage it presents.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HVGC-240-700B Power Supply 240W 700mA - Dimmable	240W	354V	0.7A	IP67	$94.95	View
Mean Well HVGC-240-700AB Power Supply 240W 700mA - Adjustable and Dimmable	240W	354V	0.7A	IP65	$98.77	View
Mean Well HVGC-240-700A Power Supply 240W 700mA - Adjustable	240W	354V	0.7A	IP65	$95.45	View
Mean Well HVGC-240-3500B Power Supply 240W 3500mA - Dimmable	240.1W	71V	3.5A	IP67	$94.95	View
Mean Well HVGC-240-3500A Power Supply 240W 3500mA - Adjustable	240.1W	71V	3.5A	IP65	$95.45	View
Mean Well HVGC-240-2800B Power Supply 240W 2800mA - Dimmable	240W	88V	2.8A	IP67	$97.55	View
Mean Well HVGC-240-2800AB Power Supply 240W 2800mA - Adjustable and Dimmable	240W	88V	2.8A	IP65	$96.07	View
Mean Well HVGC-240-2800A Power Supply 240W 2800mA - Adjustable	240W	88V	2.8A	IP65	$89.87	View
Mean Well HVGC-240-2100B Power Supply 240W 2100mA - Dimmable	240W	117V	2.1A	IP67	$84.59	View
