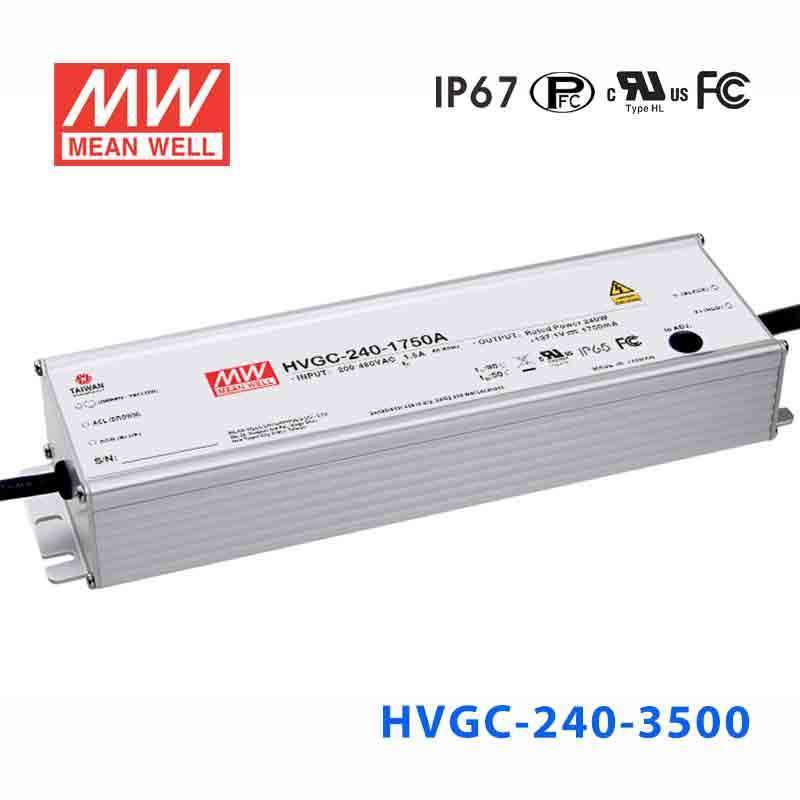

Mean Well HVGC-240-3500A Power Supply 240W 3500mA - Adjustable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-240-3500A

$95.45 USD ~~$335.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection	110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm)	189 x 61.5 x 36.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

240.1 Watt
Output Voltage

71 Volt
Rated Current

3.5 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.01 in
Width

2.68 in
Height

1.53 in
Weight

2.98 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-240-3500A for very high-current LED downlights?

Yes, if the fixture is designed for 3500mA constant current operation and the LED load stays within the 34-68V CC range. At 240.1W, this model is intended for higher-current applications than the 2100mA or 2800mA versions.

Is the HVGC-240-3500A suitable for signage modules or dense LED arrays?

It can be used for signage modules or dense LED arrays that require 3500mA constant current and fit within the 34-68V output range. The exact LED quantity depends on each LED's forward voltage, so the voltage range is the correct sizing reference.

Can this driver be used where lower output voltage and higher current are needed?

Yes, that is where this model sits within the HVGC-240 family. It provides 3500mA with a 34-68V constant current range, which is lower voltage and higher current than the 2100mA and 2800mA versions.

Is the HVGC-240-3500A designed for constant current or constant voltage LEDs?

This is a constant current LED driver with a rated output current of 3500mA. It should be matched to LED loads that operate within the 34-68V CC range, not to constant voltage LED products.

What environments can the HVGC-240-3500A handle?

The IP65 water-resistant enclosure supports use where protection from dust and water spray is needed, and the operating temperature range is -40°C to +90°C. That makes it suitable for demanding indoor or semi-exposed installations that need a sealed driver body.

How does the HVGC-240-3500A compare with the other 240W HVGC models?

The 240W HVGC family includes 700A at 171-342V, 1050A at 114-228V, 1400A at 85-171V, 1750A at 68-137V, 2100A at 57-114V, 2800A at 42-85V, and 3500A at 34-68V. The HVGC-240-3500A is the highest-current standard 240W option in that group at 3500mA and 240.1W.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HVGC-240-700B Power Supply 240W 700mA - Dimmable	240W	354V	0.7A	IP67	$94.95	View
Mean Well HVGC-240-700AB Power Supply 240W 700mA - Adjustable and Dimmable	240W	354V	0.7A	IP65	$98.77	View
Mean Well HVGC-240-700A Power Supply 240W 700mA - Adjustable	240W	354V	0.7A	IP65	$95.45	View
Mean Well HVGC-240-3500B Power Supply 240W 3500mA - Dimmable	240.1W	71V	3.5A	IP67	$94.95	View
Mean Well HVGC-240-3500AB Power Supply 240W 3500mA - Adjustable and Dimmable	240.1W	71V	3.5A	IP65	$98.77	View
Mean Well HVGC-240-2800B Power Supply 240W 2800mA - Dimmable	240W	88V	2.8A	IP67	$97.55	View
Mean Well HVGC-240-2800AB Power Supply 240W 2800mA - Adjustable and Dimmable	240W	88V	2.8A	IP65	$96.07	View
Mean Well HVGC-240-2800A Power Supply 240W 2800mA - Adjustable	240W	88V	2.8A	IP65	$89.87	View
Mean Well HVGC-240-2100B Power Supply 240W 2100mA - Dimmable	240W	117V	2.1A	IP67	$84.59	View
