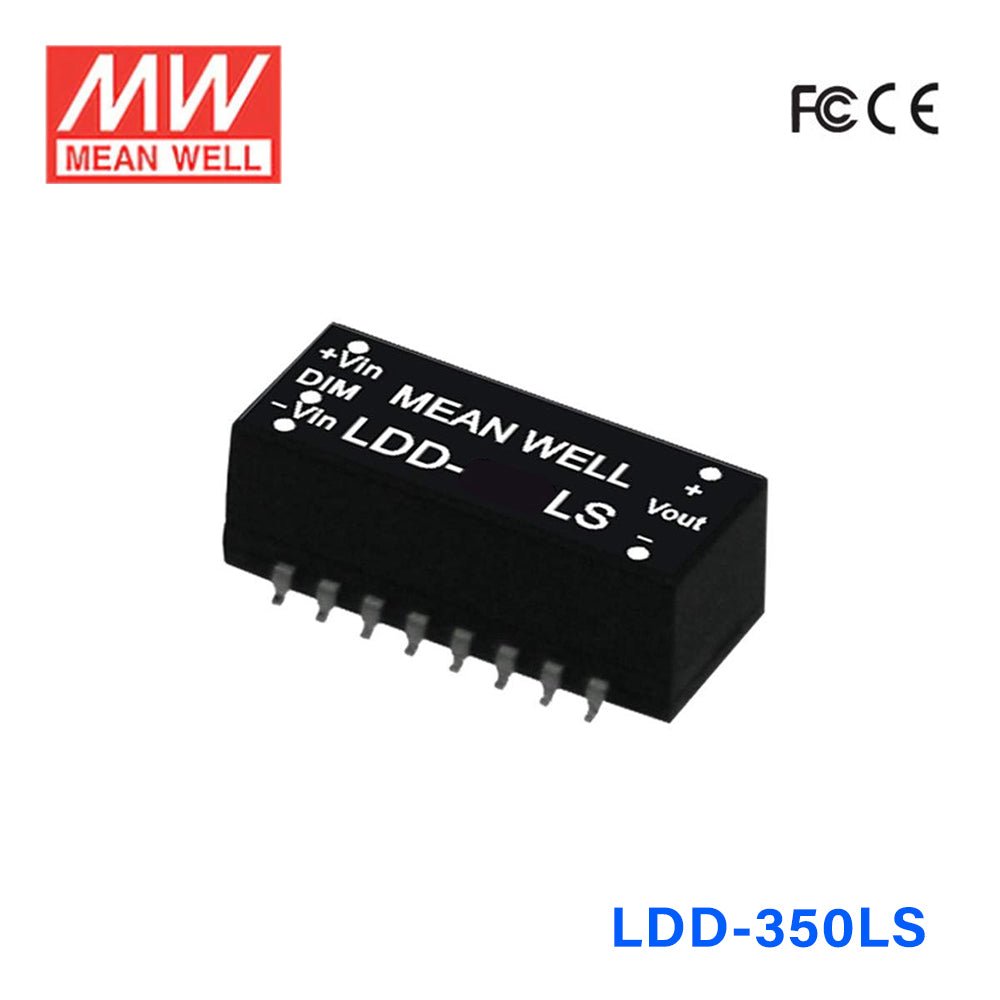

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well LDD-350LS DC/DC LED Driver CC 350mA - Step-down

constant current, step down, high efficiency up to 97%, IP67, pin style

SKU:

LDD-350LS

$6.00 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

DC/DC step-down converter

Constant current output: 300mA to 700mA

Wide input voltage: 9~36VDC

Wide output LED string voltage: 2~32VDC

High efficiency up to 95%

Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors

Built-in PWM and remote ON/OFF control

Protections: Short circuit / Over Temperature

Cooling by free air convection

Fully encapsulated with IP67 level for pin and wire style

Compact size

Low cost, high reliability

Suitable for driving illumination LED

3 years warranty

General Specification

Current accuracy	±5% at 24VDC input
Over temperature protection	Protection type : Shut down, recovers automatically after temperature goes down
Efficiency	95% at full load and 24VDC/36VDC input for LDD-300~700L/LW ; 95% at full load and 24VDC input for LDD-300~700LS
Short circuit protection	Protection type: Can be continued, recovers automatically after fault condition is removed
Working temperature	-40°C to +85°C
EMC	Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient	±0.03% / °C
Dimension (LxWxH) (mm)	22.69.98.9mm or 0.89"0.39"0.35" inch for LDD-300~700L/LW ; 25.410.59.3mm or 1"0.4135"0.366" inch for LDD-300~700LS
Potting material	Expoxy(UL94-V0) for LDD-300~700L/LW ; without potted for LDD-300~700LS

Specifications

Brand

Mean Well
Series

LDD Series
Power Rating

9.8 Watt
Output Voltage

28 Volt
Rated Current

0.35 Ampere
Input Voltage

9V~32V
No of Output

1
Dimming Control

PWM
Standards Met

CE,EAC
Operation Mode

Constant Current
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

1 in
Width

0.41 in
Height

0.37 in
Weight

0.04 lb
