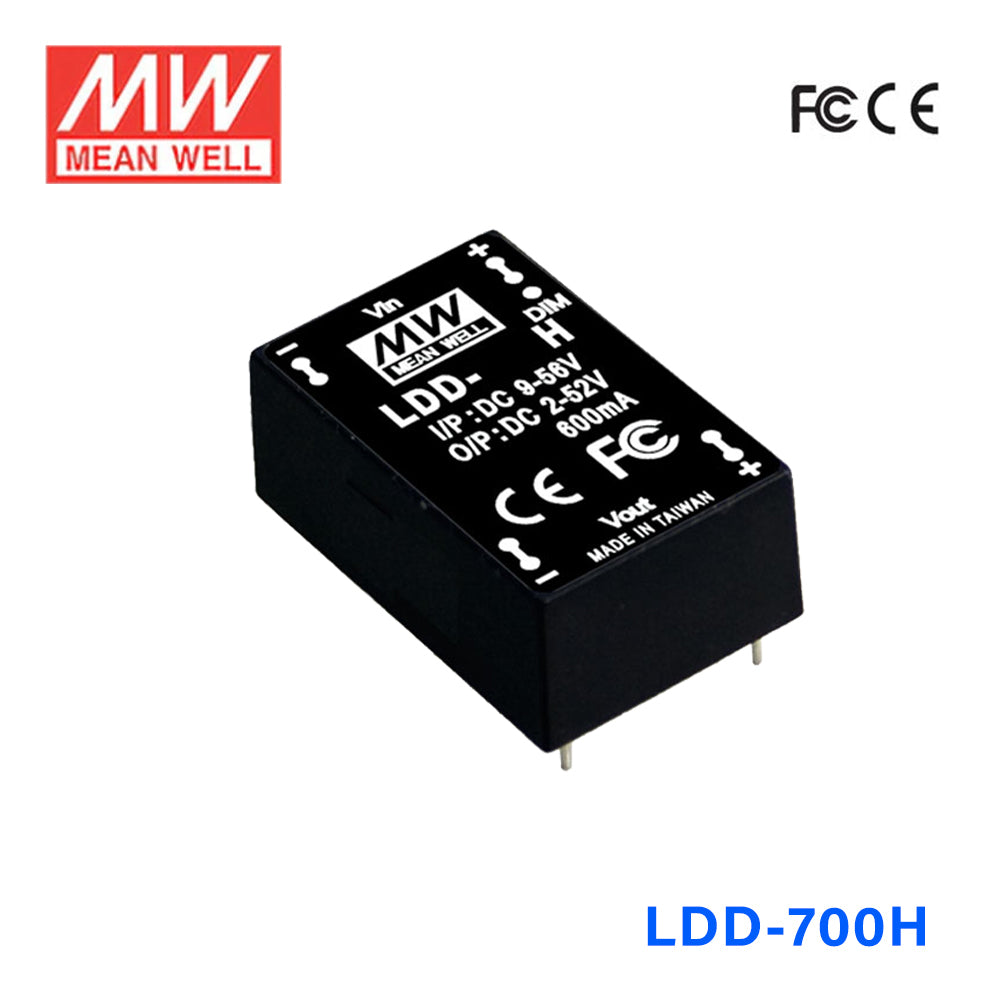

Mean Well LDD-700H DC/DC LED Driver CC 700mA - Step-down
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDD-700H DC/DC LED Driver CC 700mA - Step-down
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 300mA to 1500mA |
| Wide input voltage: 9~56VDC |
| Wide output LED string voltage: 2~52VDC |
| High efficiency up to 97% |
| Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors |
| Build-in PWM and remote ON/OFF control |
| Protections: Short circuit/Over temperature |
| Cooling by free air convection |
| Fully encapsulated with IP67 level for pin and wire style |
| Non-potted, optional conformal coating for SMD style(HSC type) |
| Compact size |
| Low cost, high reliability |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±3% at 24VDC input ; ±4% at 48VDC input for LDD-H/HW ; ±5% for LDD-HS |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS(typical) |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch for LDD-H/HW ; 31.8*20.3*11.4mm or 1.25"*0.8"*0.45" inch for LDD-HS |
| Potting material | Expoxy(UL94-V0) for LDD-H/HW ; without potted for LDD-HS |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating36.4 Watt
-
Output Voltage52 Volt
-
Rated Current0.7 Ampere
-
Input Voltage9V~56V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.45 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LDD-700H for a 700mA LED downlight?
Yes, this driver is designed for constant current operation at 700mA. It supports LED loads within a 2-52V constant current range and up to 36.4W. That makes it a fit for downlight designs that are specified for 700mA constant current.
Is the LDD-700H a good choice for small high-power LED arrays?
It can be used for small LED arrays when the array is intended to run at 700mA constant current. The driver supports up to 52V output and 36.4W, so the total LED forward voltage must remain within that window. This is a constant current model, not a constant voltage supply.
Can the LDD-700H be used for LED signage modules?
Yes, if the signage module string is designed for 700mA constant current operation. The driver provides a 2-52V constant current range and up to 36.4W, which suits many custom module strings and compact light engines. It should not be used in place of a constant voltage driver for modules that expect fixed-voltage input.
Is this driver suitable for harsh temperature conditions?
The rated operating temperature range is -40°C to +85°C. That gives it a wide environmental operating window for demanding indoor or protected outdoor equipment. The product is also rated IP67 waterproof.
How do I match LED strings to the LDD-700H?
Your LED load needs to be specified for 700mA constant current, and the total forward voltage must stay within the 2-52V constant current range. The exact number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count. If the load requires constant voltage, choose a constant voltage driver instead.
