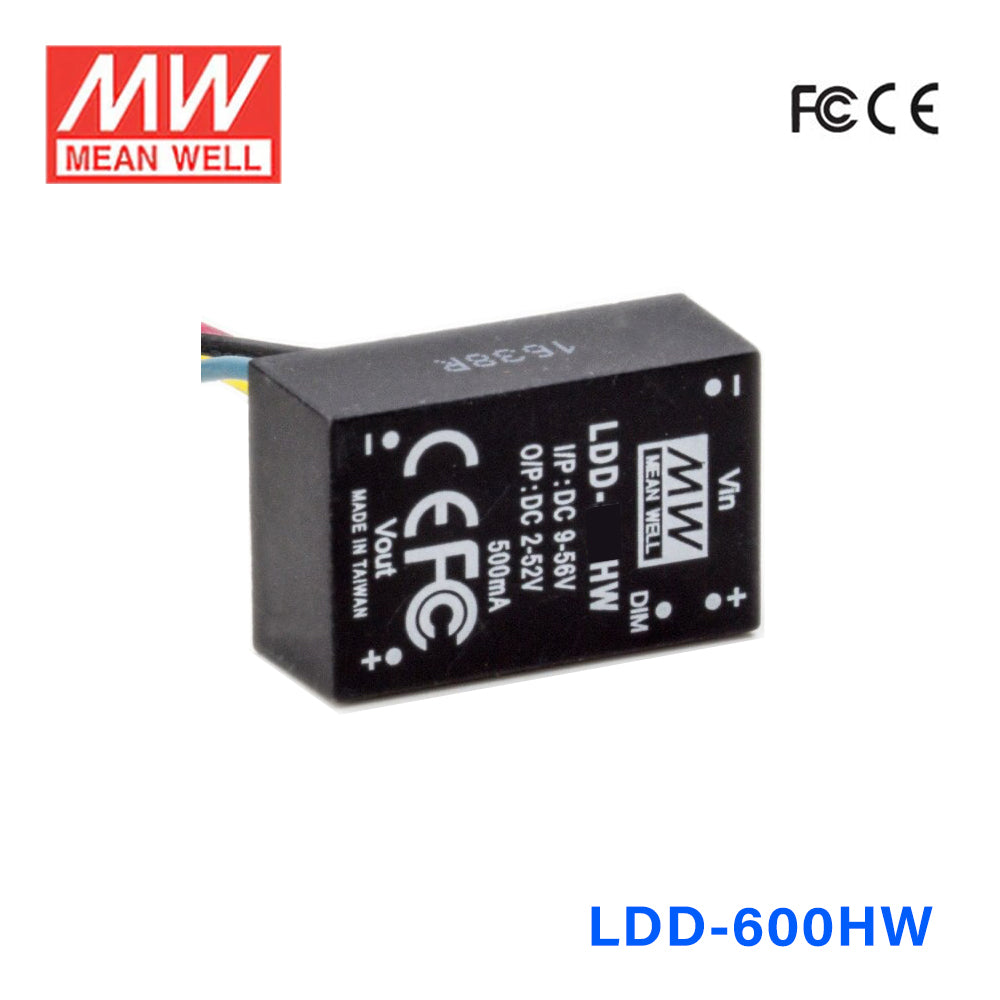

Mean Well LDD-600HW DC/DC LED Driver CC 600mA - Step-down
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDD-600HW DC/DC LED Driver CC 600mA - Step-down
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 300mA to 1500mA |
| Wide input voltage: 9~56VDC |
| Wide output LED string voltage: 2~52VDC |
| High efficiency up to 97% |
| Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors |
| Build-in PWM and remote ON/OFF control |
| Protections: Short circuit/Over temperature |
| Cooling by free air convection |
| Fully encapsulated with IP67 level for pin and wire style |
| Non-potted, optional conformal coating for SMD style(HSC type) |
| Compact size |
| Low cost, high reliability |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±3% at 24VDC input ; ±4% at 48VDC input for LDD-H/HW ; ±5% for LDD-HS |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS(typical) |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch for LDD-H/HW ; 31.8*20.3*11.4mm or 1.25"*0.8"*0.45" inch for LDD-HS |
| Potting material | Expoxy(UL94-V0) for LDD-H/HW ; without potted for LDD-HS |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating31.2 Watt
-
Output Voltage52 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~56V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LDD-600HW for a 600mA LED downlight?
Yes, this model is a constant current LED driver with a 600mA output. It is intended for LED loads that operate within its 2-52V constant current range and up to 31.2W. The LED string voltage still needs to stay inside that 2-52V range.
Is the LDD-600HW suitable for signage LED modules that need constant current?
It can be used for signage modules when the module string is designed for constant current operation at 600mA. The available constant current output range is 2-52V with a maximum power of 31.2W. It is not a constant voltage driver, so it should not be chosen for LED modules that expect a fixed constant voltage supply.
Can this driver run a small LED array in a compact enclosure?
This model is built for compact installations, with a body size of 31.8 × 20.3 × 12.2 mm and a weight of 0.02 kg. It provides 600mA constant current with up to 52V output and 31.2W. That makes it suitable for small LED arrays that match those electrical limits.
Will the LDD-600HW work in outdoor or wet locations?
The unit is rated IP67, so it is designed for waterproof use where that level of ingress protection is required. Its operating temperature range is -40°C to +85°C, which also supports demanding ambient conditions. Final suitability still depends on the rest of the fixture or enclosure meeting the same environmental standard.
How do I know if my LEDs are compatible with the LDD-600HW?
Check that your LEDs require constant current at 600mA and that the total forward voltage falls within the 2-52V constant current range. The number of LEDs cannot be stated as a fixed count because it depends on each LED's forward voltage. If your LEDs need constant voltage instead of constant current, this is not the right driver type.
