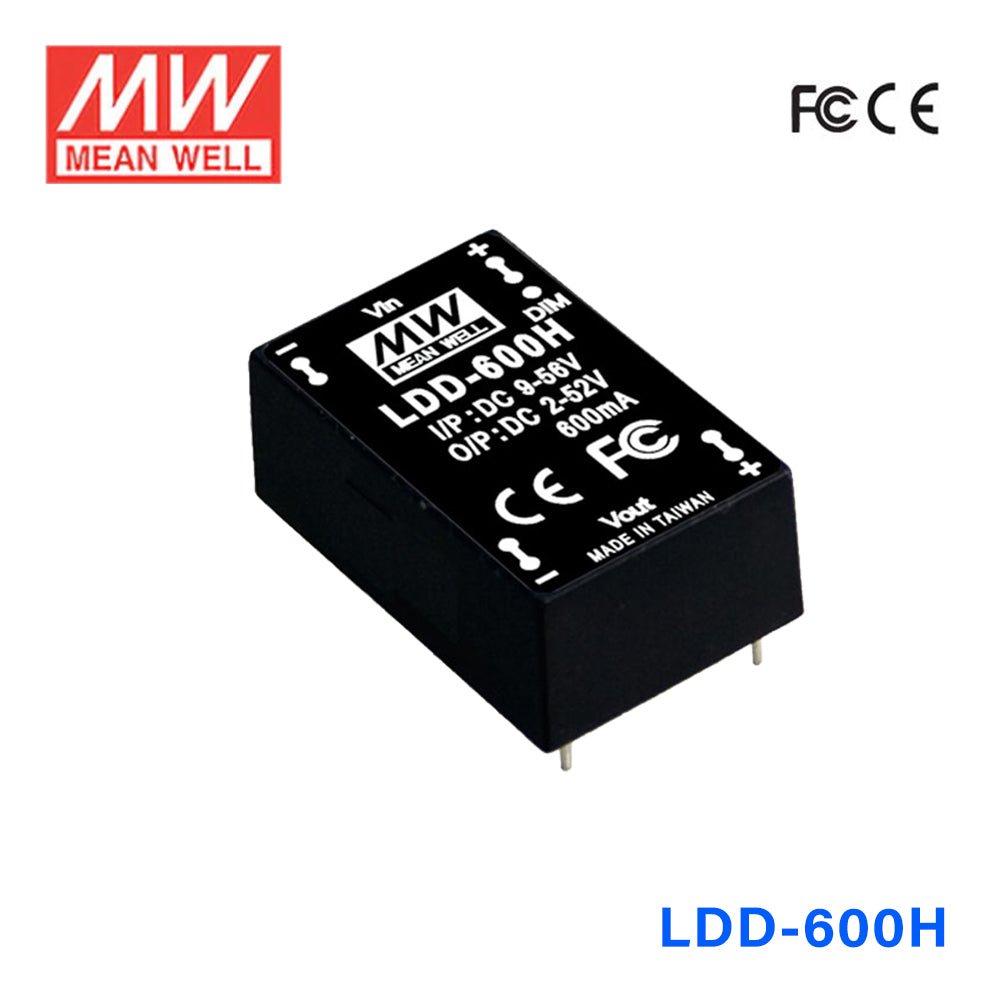

Mean Well LDD-600H DC/DC LED Driver CC 600mA - Step-down
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDD-600H DC/DC LED Driver CC 600mA - Step-down
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 300mA to 1500mA |
| Wide input voltage: 9~56VDC |
| Wide output LED string voltage: 2~52VDC |
| High efficiency up to 97% |
| Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors |
| Build-in PWM and remote ON/OFF control |
| Protections: Short circuit/Over temperature |
| Cooling by free air convection |
| Fully encapsulated with IP67 level for pin and wire style |
| Non-potted, optional conformal coating for SMD style(HSC type) |
| Compact size |
| Low cost, high reliability |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±3% at 24VDC input ; ±4% at 48VDC input for LDD-H/HW ; ±5% for LDD-HS |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS(typical) |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch for LDD-H/HW ; 31.8*20.3*11.4mm or 1.25"*0.8"*0.45" inch for LDD-HS |
| Potting material | Expoxy(UL94-V0) for LDD-H/HW ; without potted for LDD-HS |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating31.2 Watt
-
Output Voltage52 Volt
-
Rated Current0.6 Ampere
-
Input Voltage9V~56V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LDD-600H for a 600mA LED downlight engine?
Yes, this driver is intended for constant current LED loads at 600mA. It supports a 2-52V constant current range with up to 31.2W, which makes it suitable for higher-power downlight modules than the 350mA versions.
Is the LDD-600H suitable for brighter signage modules or small LED arrays?
It can be a fit for signage modules and small LED arrays that are designed for 600mA constant current operation. The LED load must stay within the 2-52V range and within the 31.2W rating, and it is not a constant voltage driver.
Can this driver support a custom LED array with more headroom than a 350mA model?
Yes, the higher 600mA output current and 31.2W rating provide more output capacity than a 350mA model. It is still a constant current device, so the LED array must be specified for 600mA and remain within the 2-52V operating window.
How do I know whether my LED string is compatible with the LDD-600H?
Your LED load must require 600mA constant current, and its total forward voltage must fit within the 2-52V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.
Can the LDD-600H be used in outdoor or high-variation temperature conditions?
Yes, it has an IP67 waterproof rating and an operating temperature range of -40°C to +85°C. That makes it suitable for protected LED systems exposed to dust, water, and wide ambient temperature changes.
How does the LDD-600H compare with other 600mA LDD drivers?
In the 600mA group, LDD-600H, LDD-600HS, and LDD-600HW are 31.2W with a 2-52V constant current range, LDD-600L and LDD-600LW are 19.2W with a 2-32V range, and LDD-600LS is 16.8W with a 2-28V range. The main differences are the available output voltage range, power level, and package style.
