Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

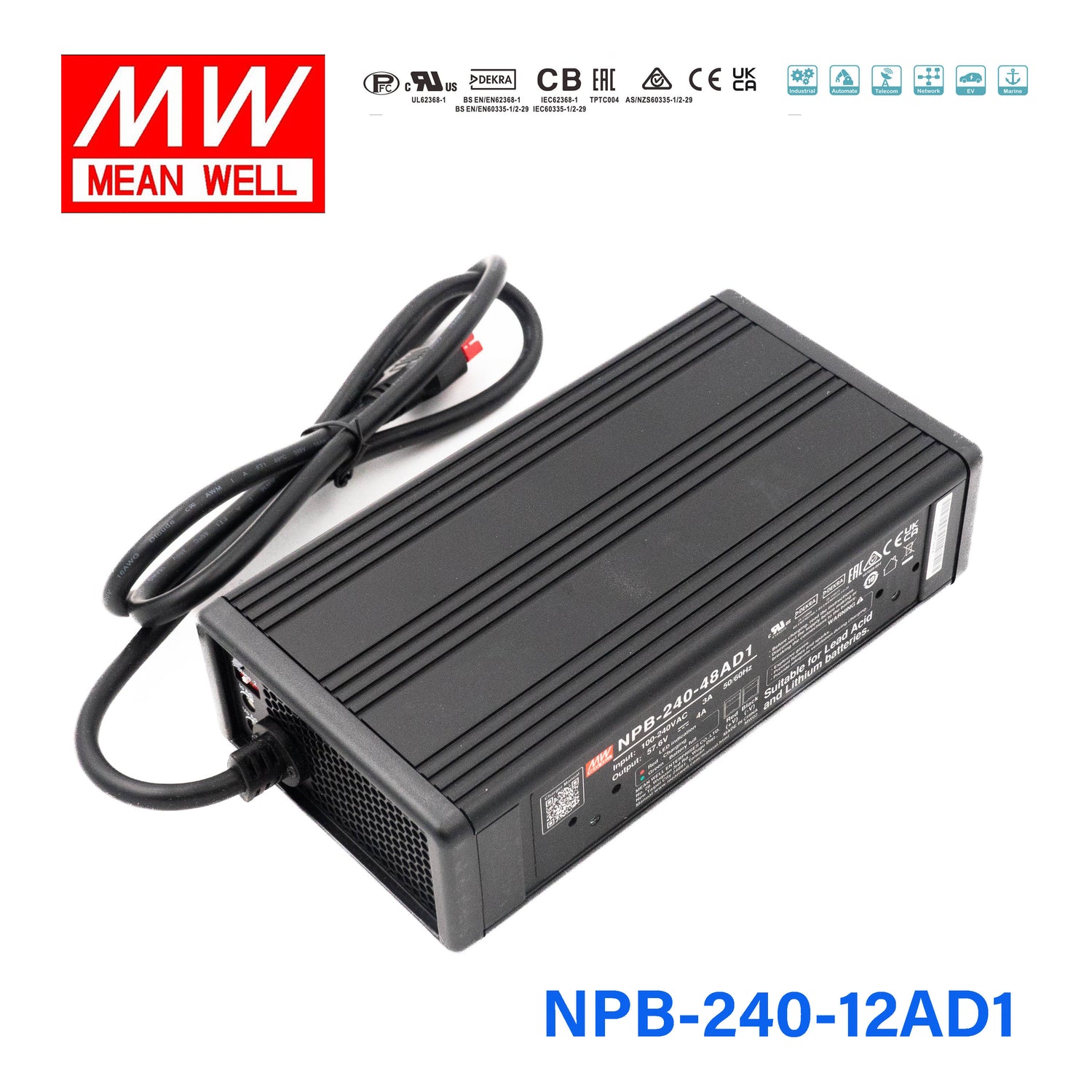

Mean Well NPB-240-12AD1 Battery Charger 240W 12V with Anderson Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-240-12AD1 Battery Charger 240W 12V with Anderson Conn...
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating240 Watt
-
Output Voltage14.4 Volt
-
Rated Current13.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NPB-240-12AD1 used for?
The NPB-240-12AD1 is an AC-DC battery charger designed for 12V battery charging applications where a 240W charger is needed. It is suited to buyers looking for a portable charger with an Anderson connector and controlled 2-stage or 3-stage charging behavior.
What are the output rating and charging capacity of this model?
This model is rated at 240W and provides a 14.4V DC output at 13.5A. Those ratings make it a higher-capacity option for 12V battery charging compared with lower-wattage chargers in the same category.
Does the NPB-240-12AD1 support multi-stage charging?
Yes, the product description specifies 2-stage or 3-stage charging. That makes it relevant for buyers who need a charger designed specifically for battery charging rather than a basic fixed-output power supply.
What input power range does this battery charger support?
The NPB-240-12AD1 is described as having universal AC input. This is useful for commercial and industrial buyers who need the same charger model across different AC supply environments.
Is this charger suitable for demanding environments?
It is rated for operation from -30°C to 70°C, which is a wide working temperature range for industrial use. Buyers evaluating environmental durability should also note that the unit weighs 1.3 kg, supporting portable use cases without being overly bulky.
What connector type does the NPB-240-12AD1 include?
This specific model includes an Anderson connector as stated in the product name and description. That is an important compatibility detail for buyers who need this exact connector style on the charger side.
What warranty comes with the Mean Well NPB-240-12AD1?
The listed warranty period for this model is 3 years. For B2B buyers, that provides a clear baseline for lifecycle and support planning when comparing charger options.
