Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

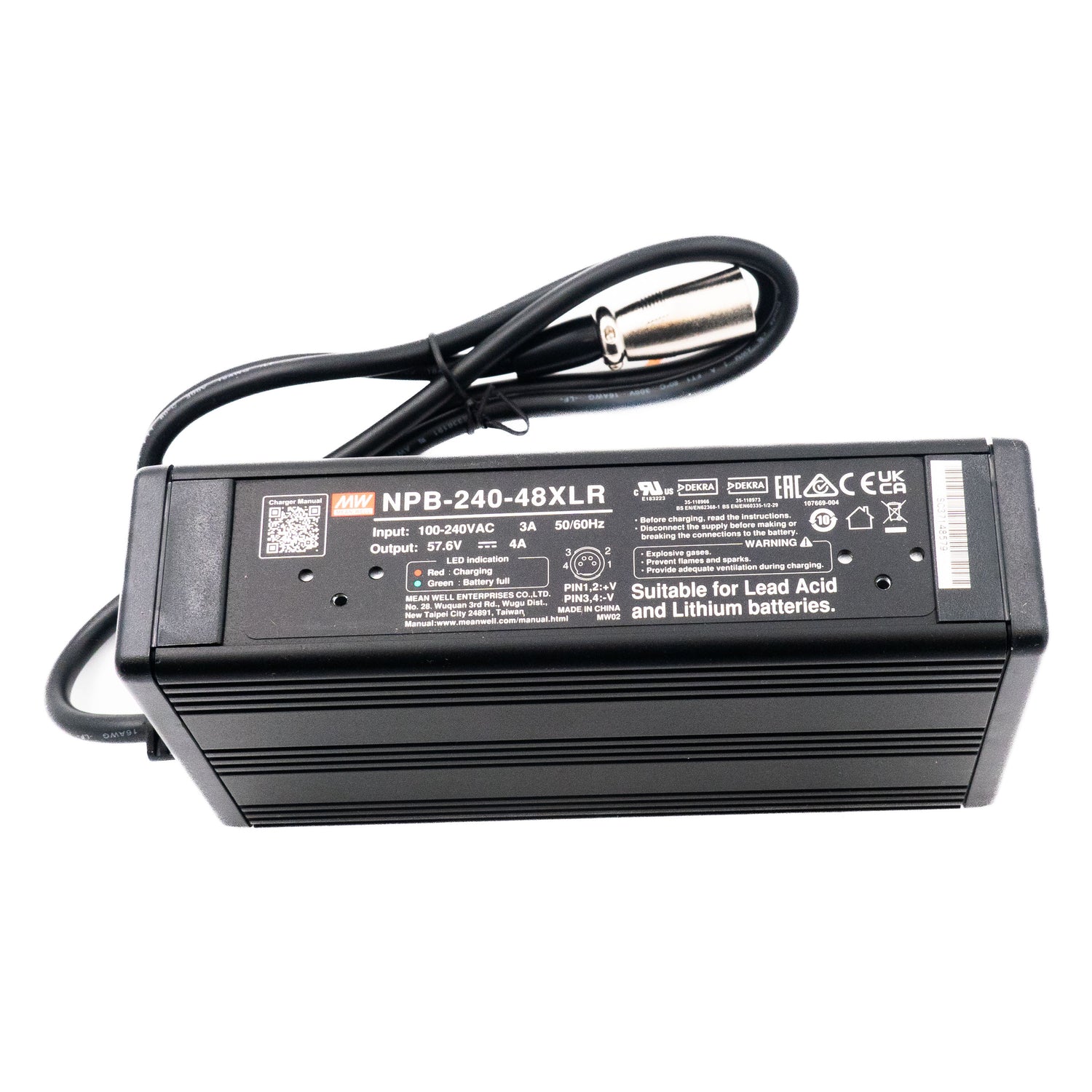

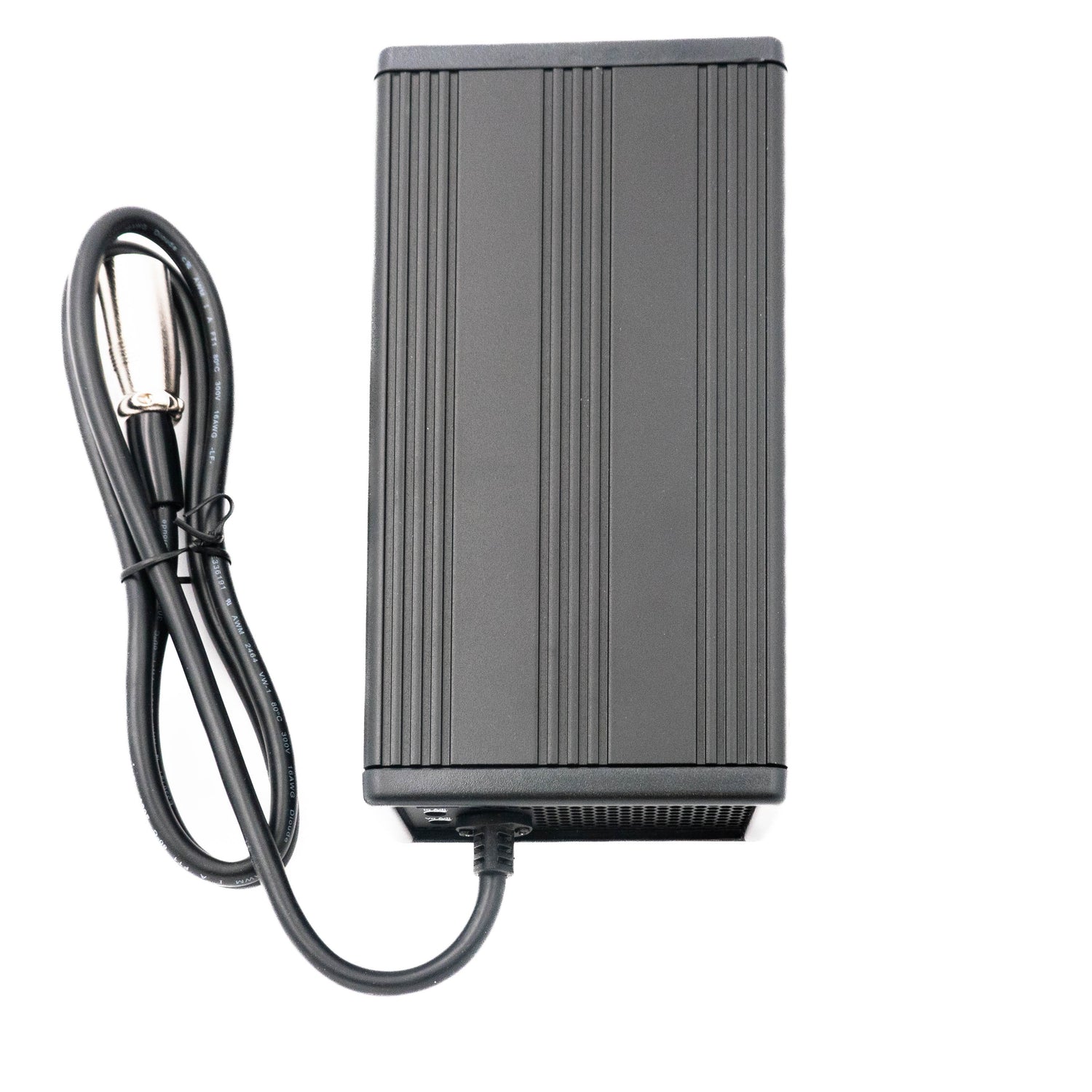

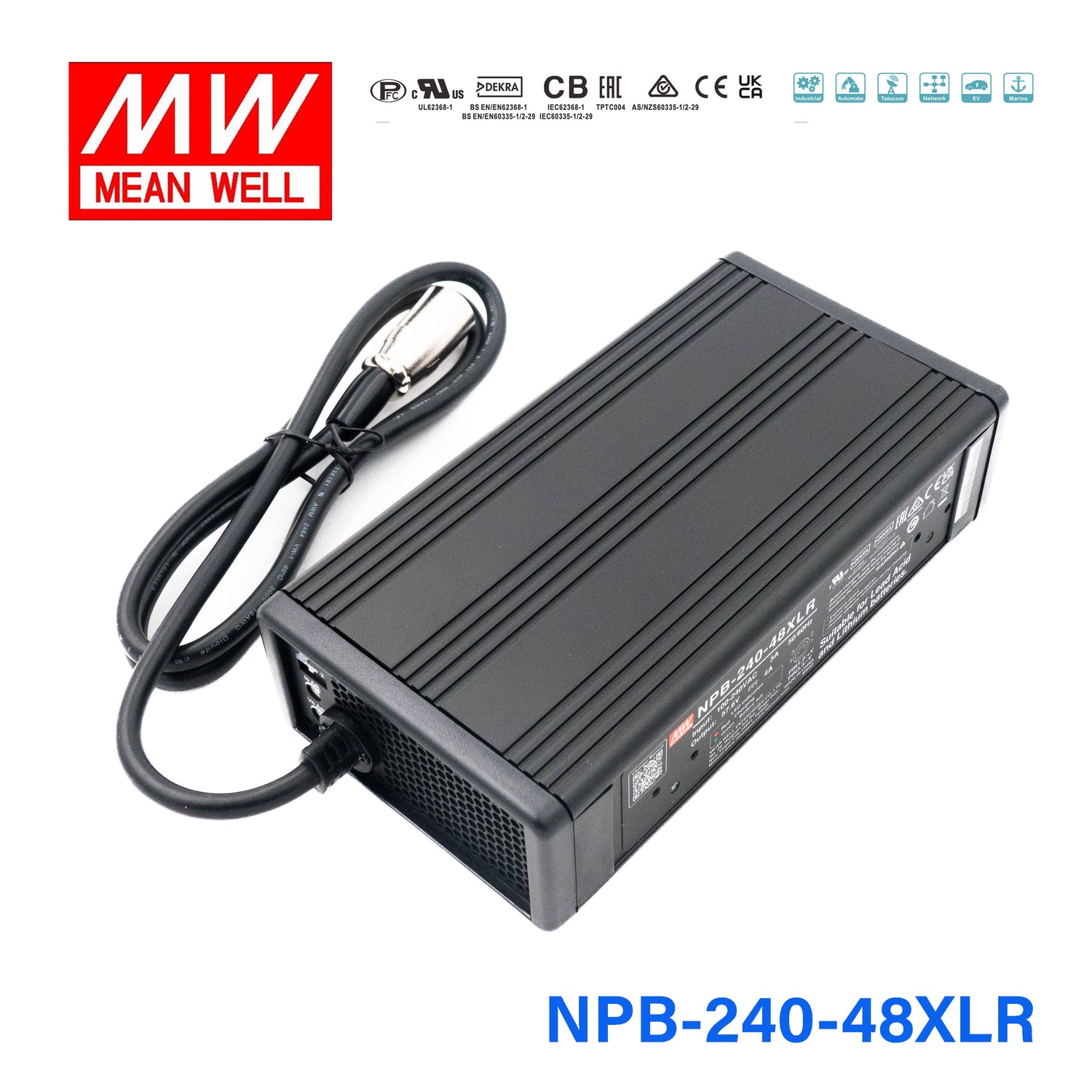

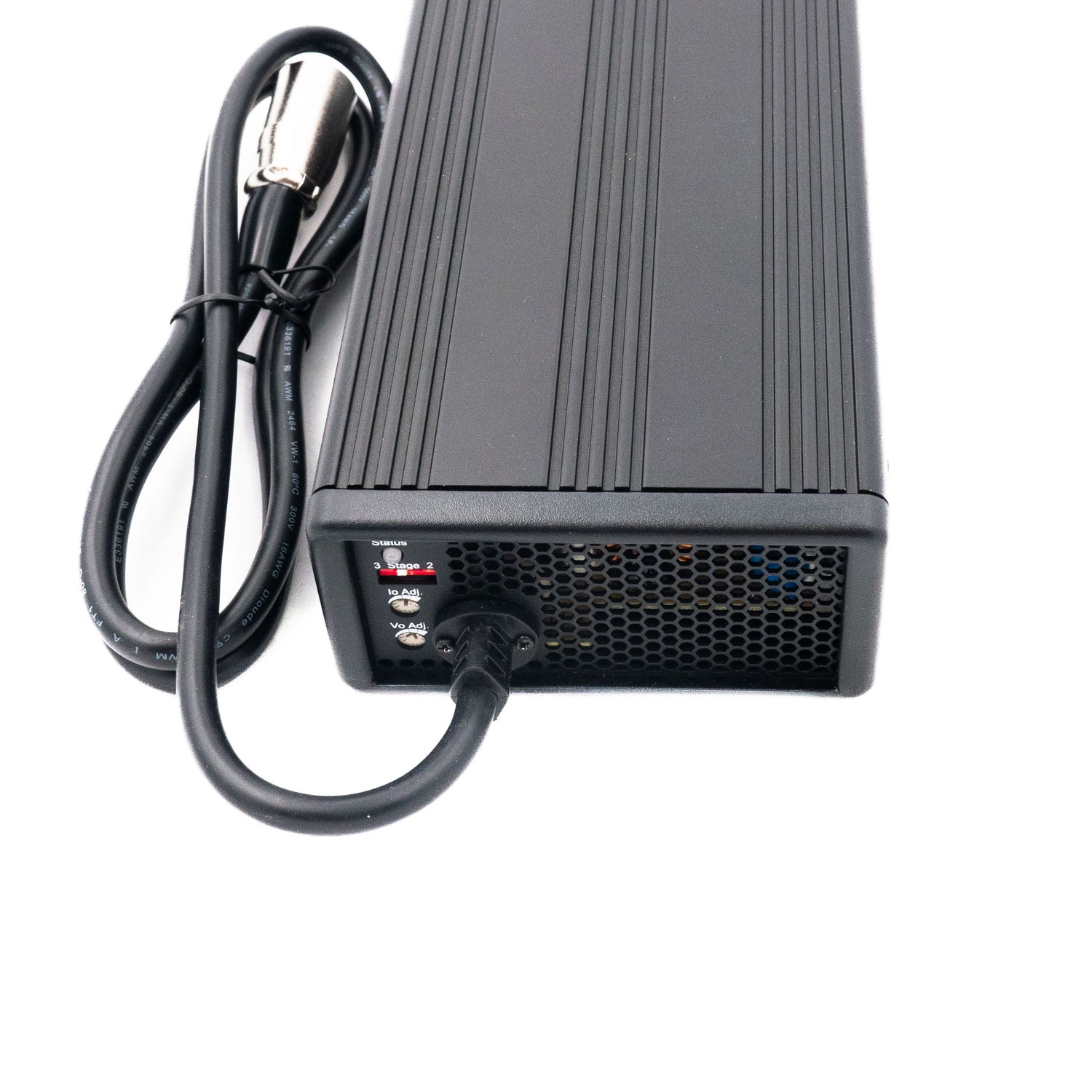

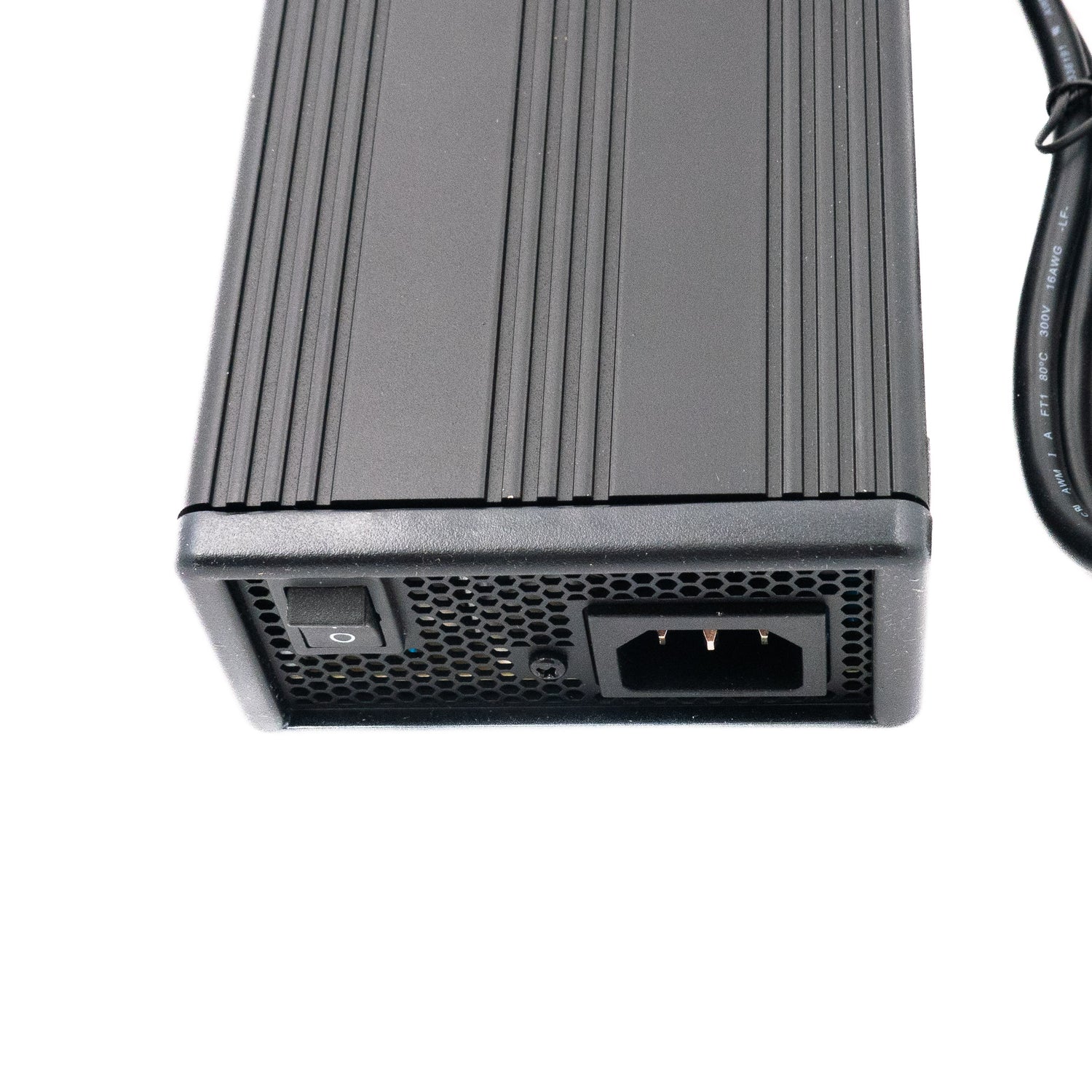

Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-240-48XLR Battery Charger 240W 48V 3 Pin Power Pin
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating240 Watt
-
Output Voltage57.6 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NPB-240-48XLR designed for?
The NPB-240-48XLR is an AC-DC single output battery charger in Mean Well's NPB series. This model is built for 48V battery charging applications and provides 57.6Vdc output at 4A with up to 240W power.
What charging output does the NPB-240-48XLR provide?
This charger delivers a 57.6Vdc output with a rated current of 4A. Its power rating is 240W, which makes it suitable for applications that need a 48V-class battery charger with moderate output capacity.
Does the NPB-240-48XLR support different charging stages?
Yes, the NPB-240-48XLR supports 2-stage or 3-stage charging. That gives buyers flexibility when selecting a charger for battery charging profiles that require staged charging behavior.
Can the NPB-240-48XLR operate in demanding temperature conditions?
This model is rated for operation from -30°C to 70°C. That wide temperature range makes it a practical option for environments where chargers may be exposed to cold starts or elevated ambient heat.
What are the physical and support considerations for the NPB-240-48XLR?
The NPB-240-48XLR weighs 1.3 kg, which is useful to know for equipment planning and product comparison. It also carries a 3-year warranty period from Mean Well.
