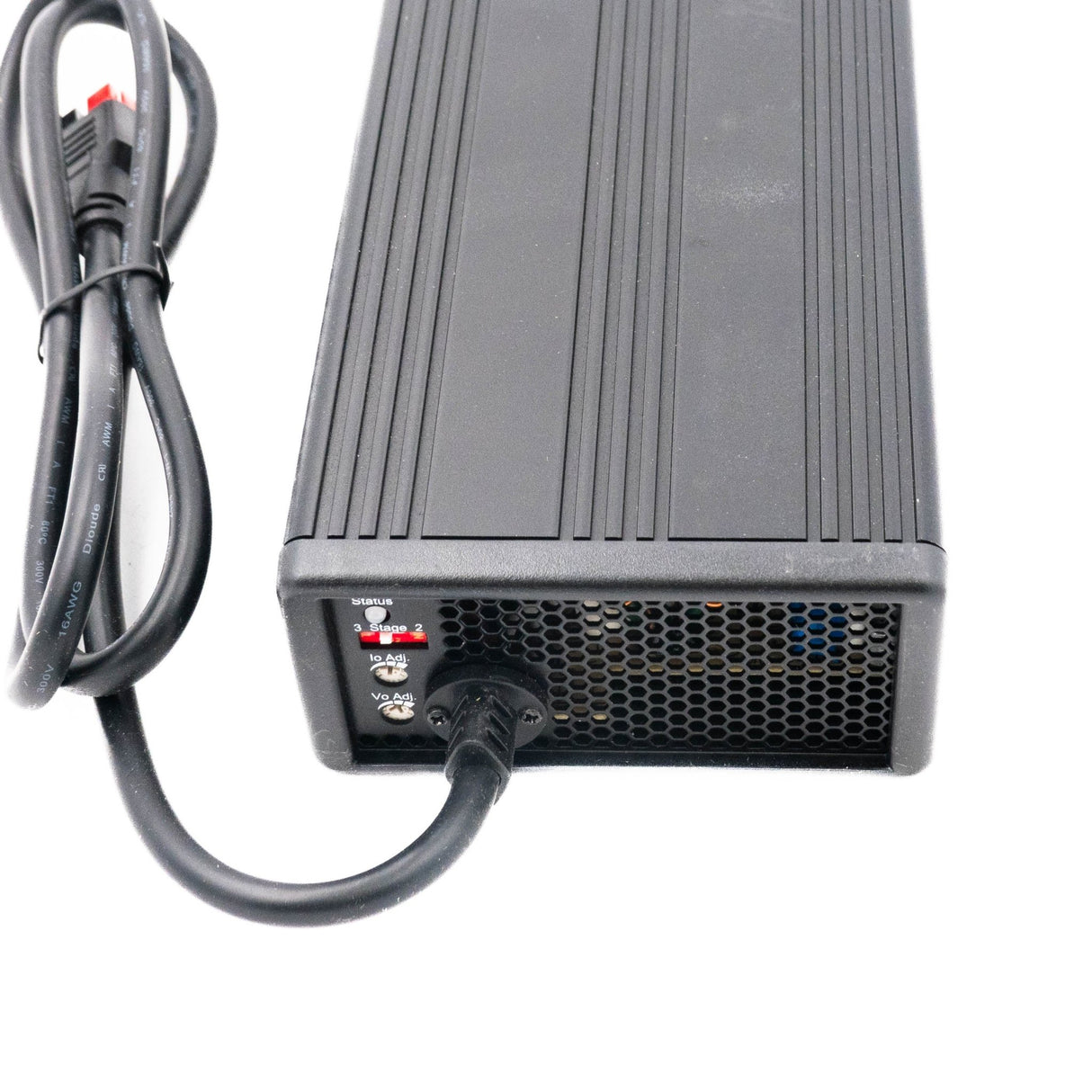

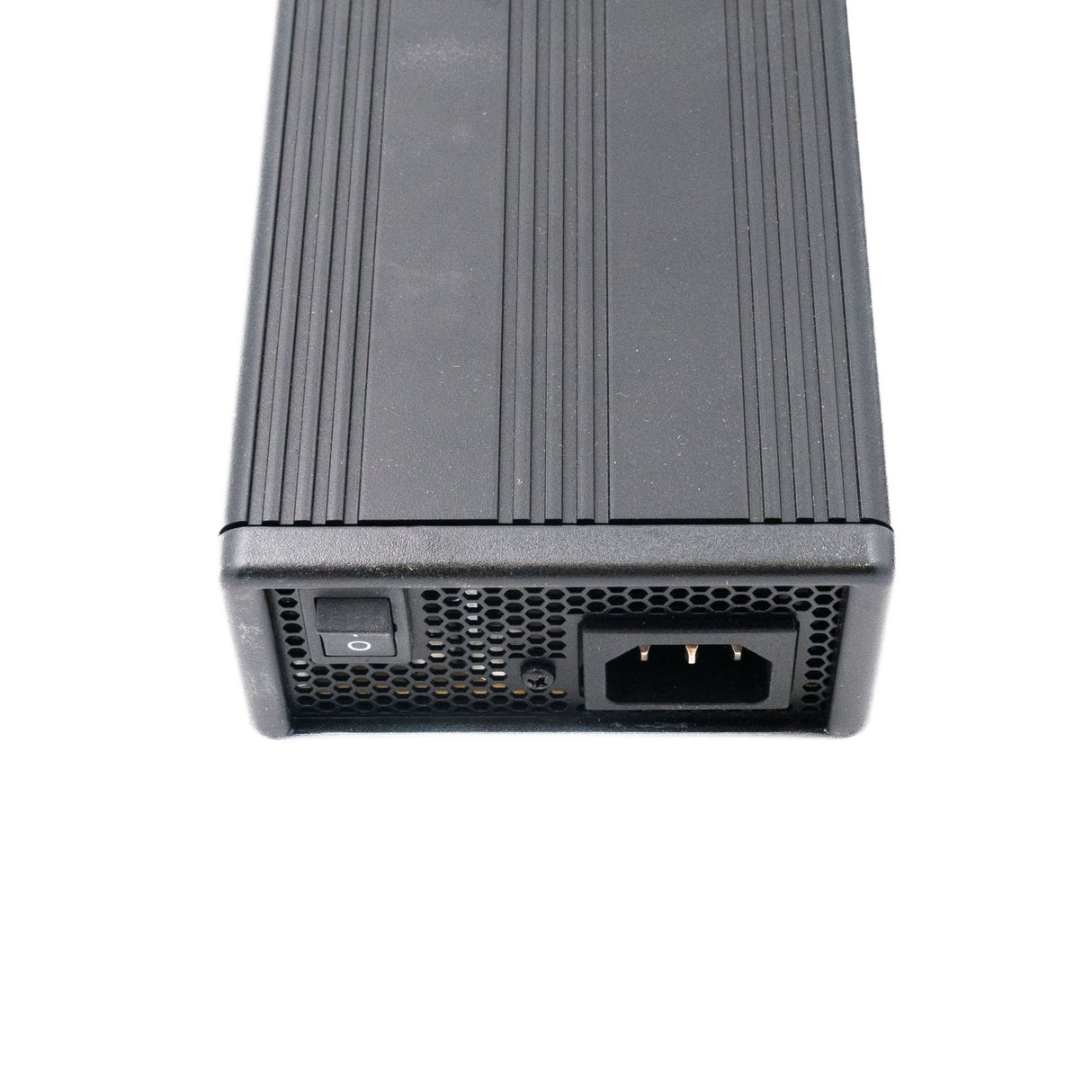

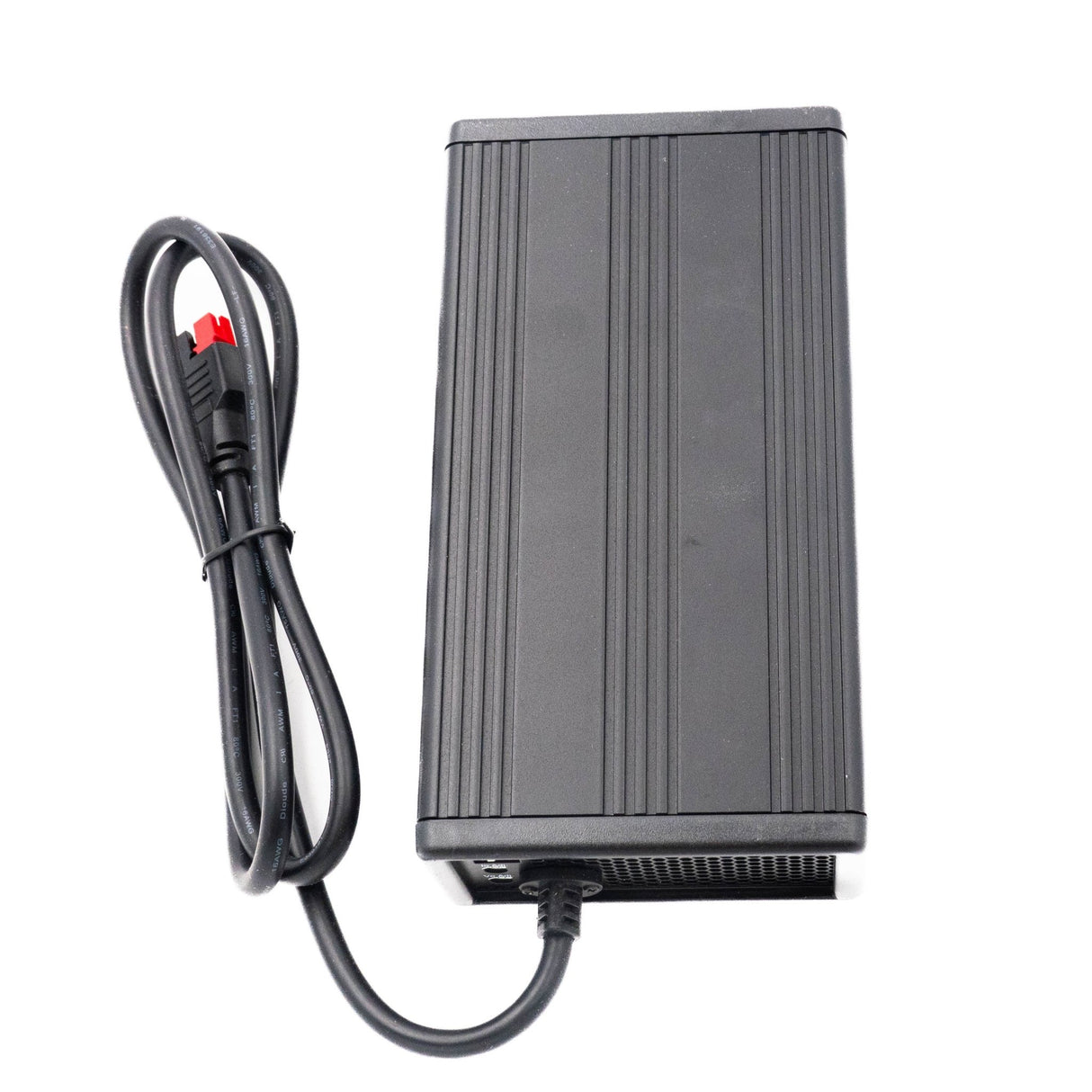

Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-240-24AD1 Battery Charger 240W 24V Anderson Connector
Description
Description
The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).
Key Features
- ✓ 182.7mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating240 Watt
-
Output Voltage28.8 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Is the Mean Well NPB-240-24AD1 suitable for charging 24V battery systems?
This model is built as a 240W battery charger with a 28.8V DC output and 8A rated current, which aligns with many 24V battery charging applications. It is best suited where the required charging voltage and current fit those published output specifications.
Can the NPB-240-24AD1 be used in portable or service battery charging setups?
Yes, this model is a portable-style battery charger variant with an Anderson connector, which makes it relevant for mobile charging or service use where that connector format is preferred. Buyers should still confirm that the target battery system matches the charger's 28.8V DC output and 8A rating.
What charging features does the NPB-240-24AD1 offer?
The published description lists PFC, universal AC input, and 2-stage or 3-stage charging. Those features make this model more application-specific than a basic fixed-output power unit, especially where controlled battery charging behavior is required.
How do I know if 240W and 8A are enough for my application?
This charger is rated for 28.8V DC output at up to 8A, with a total power rating of 240W. It is a fit only when the target system is designed for that output voltage and remains within both the 8A current limit and the 240W power limit.
What operating temperature range is this charger rated for?
The published operating temperature range for the NPB-240-24AD1 is -30°C to 70°C. That gives it a broad thermal range for industrial and commercial use, but the provided data does not include an IP rating, so environmental claims should stay within the listed specifications.
Can this model also serve as an AC-DC power supply as well as a battery charger?
The product is described as an AC-DC single output battery charger and is also categorized under power supply ranges. Its published output is 28.8V DC at 8A, so it may be considered where an application specifically requires that output, but this model is clearly positioned around battery charging use.
