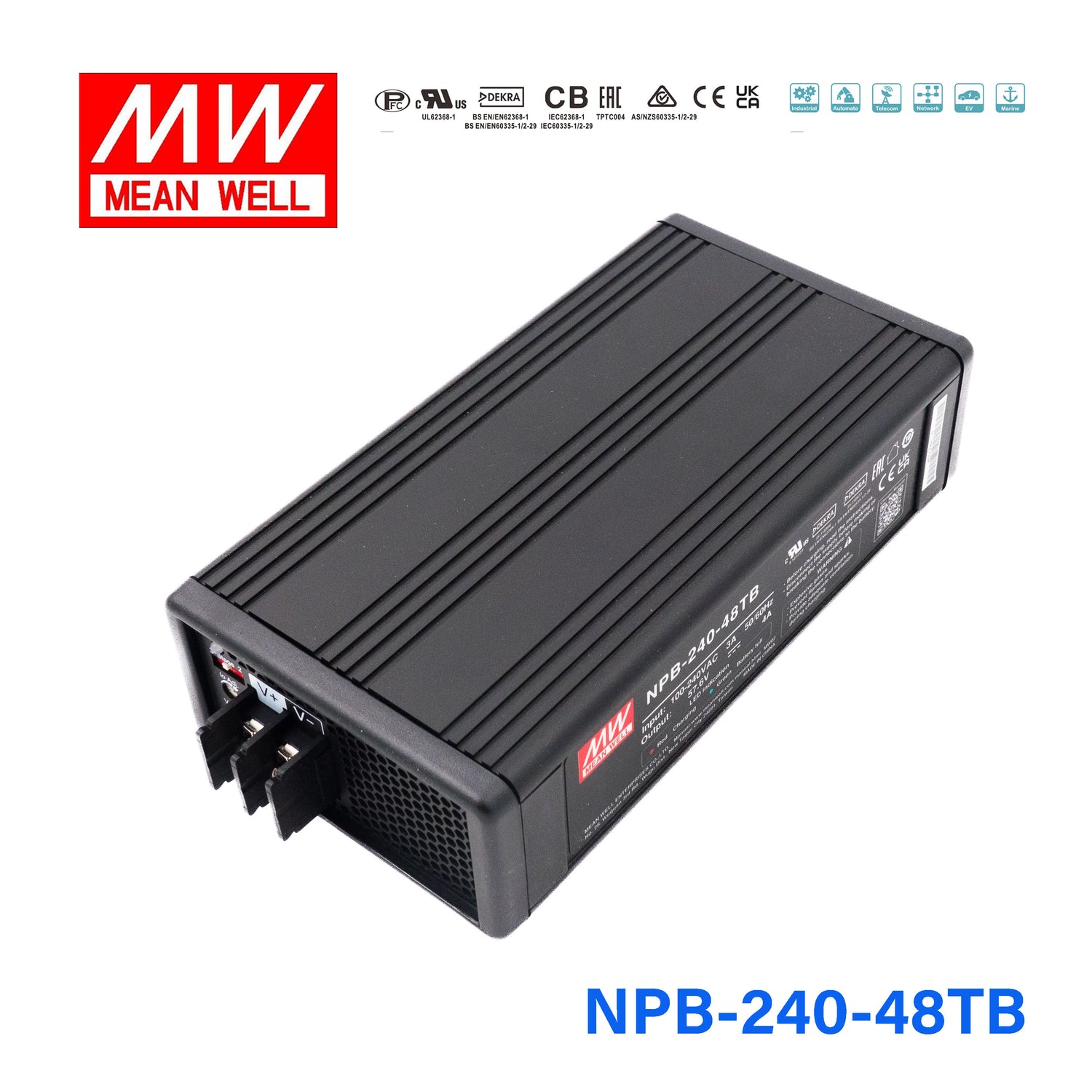

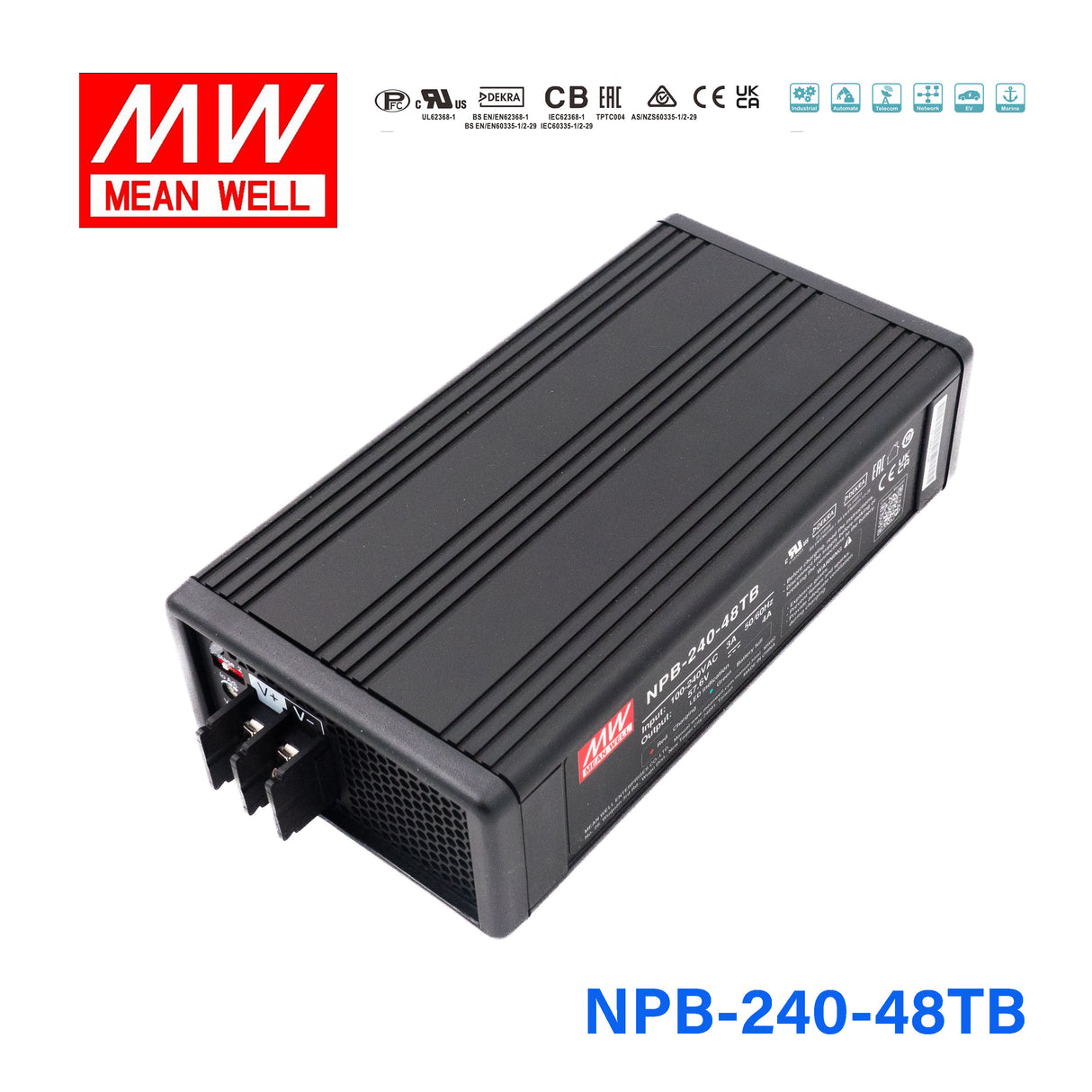

Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-240-48TB Battery Charger 240W 48V Terminal Block
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating240 Watt
-
Output Voltage57.6 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NPB-240-48TB?
The NPB-240-48TB is rated for 240W output. This model provides 57.6V DC at 4A. Those published ratings make it a fit for buyers who need a 48V-class battery charger with a defined constant output specification.
Is the NPB-240-48TB a battery charger or a general power supply?
This model is described by Mean Well as an AC-DC single-output battery charger with power factor correction. It also appears in power supply categories, but its listed charging features are 2-stage or 3-stage charging rather than a generic fixed-output-only power conversion role. For product-page FAQ, it should be treated primarily as a battery charger.
What charging method does the NPB-240-48TB use?
The NPB-240-48TB supports 2-stage or 3-stage charging. That is a meaningful differentiator for buyers comparing industrial or commercial charging options, because the charging profile is built into the model rather than being an unspecified feature. The product description specifically lists both charging-stage modes for this unit.
Can the NPB-240-48TB be used in demanding temperature conditions?
This charger is specified for operation from -30 degrees C to 70 degrees C. That wide operating range makes it more suitable for industrial and commercial environments than products limited to narrow indoor temperature bands. Buyers still need to confirm the surrounding equipment and enclosure requirements separately.
What input flexibility does the NPB-240-48TB offer?
The NPB-240-48TB is specified with universal AC input. That gives purchasing teams more flexibility when sourcing the same charger for different regions or facility standards without needing a separate input-specific model. The product description also lists built-in PFC as part of the AC-DC design.
What warranty and physical considerations are listed for the NPB-240-48TB?
This model carries a 3-year warranty based on the provided product data. Its listed weight is 1.3 kg, which can matter for panel, cabinet, or portable equipment planning where component mass affects the overall assembly. Those details help buyers compare lifecycle support and mechanical suitability across charger options.
