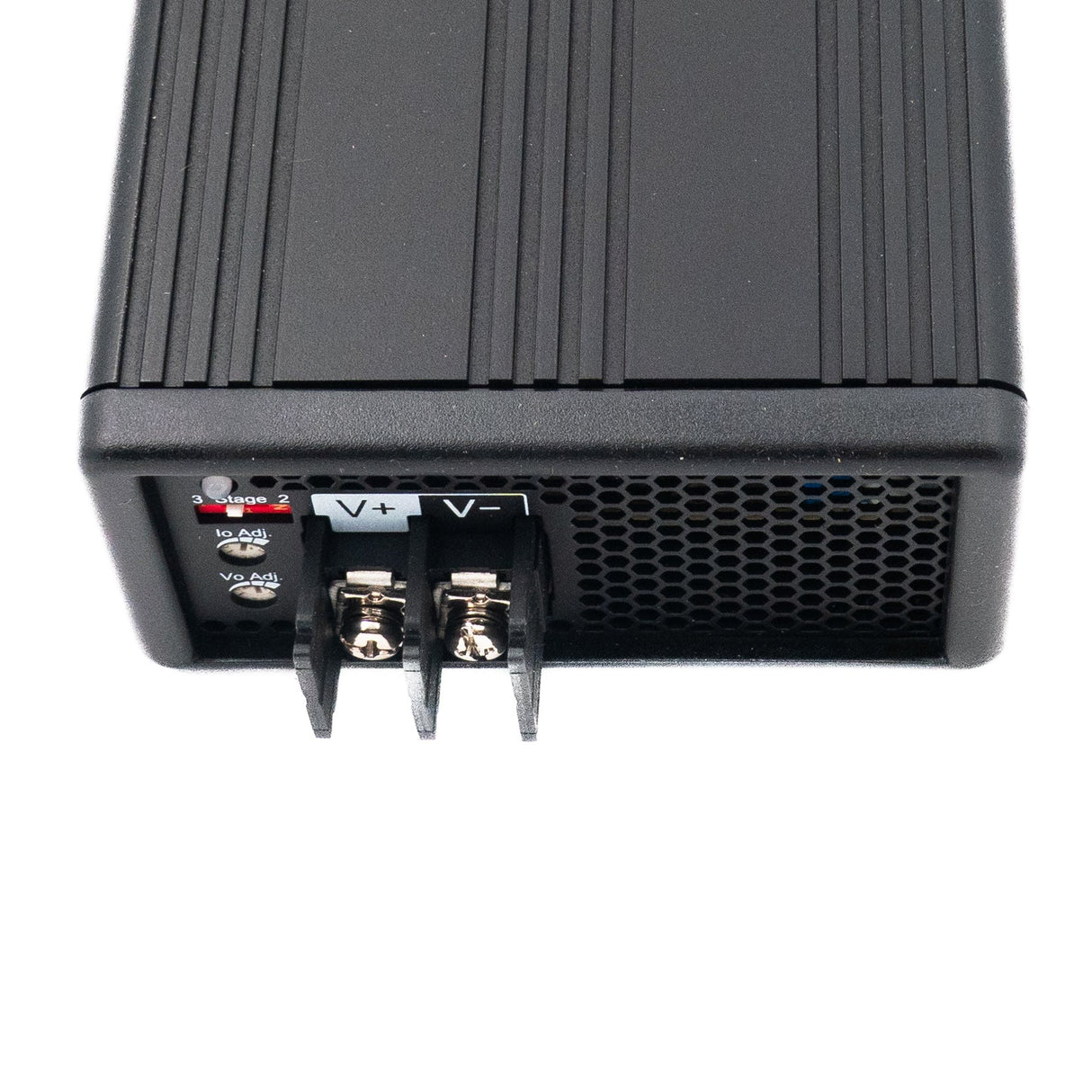

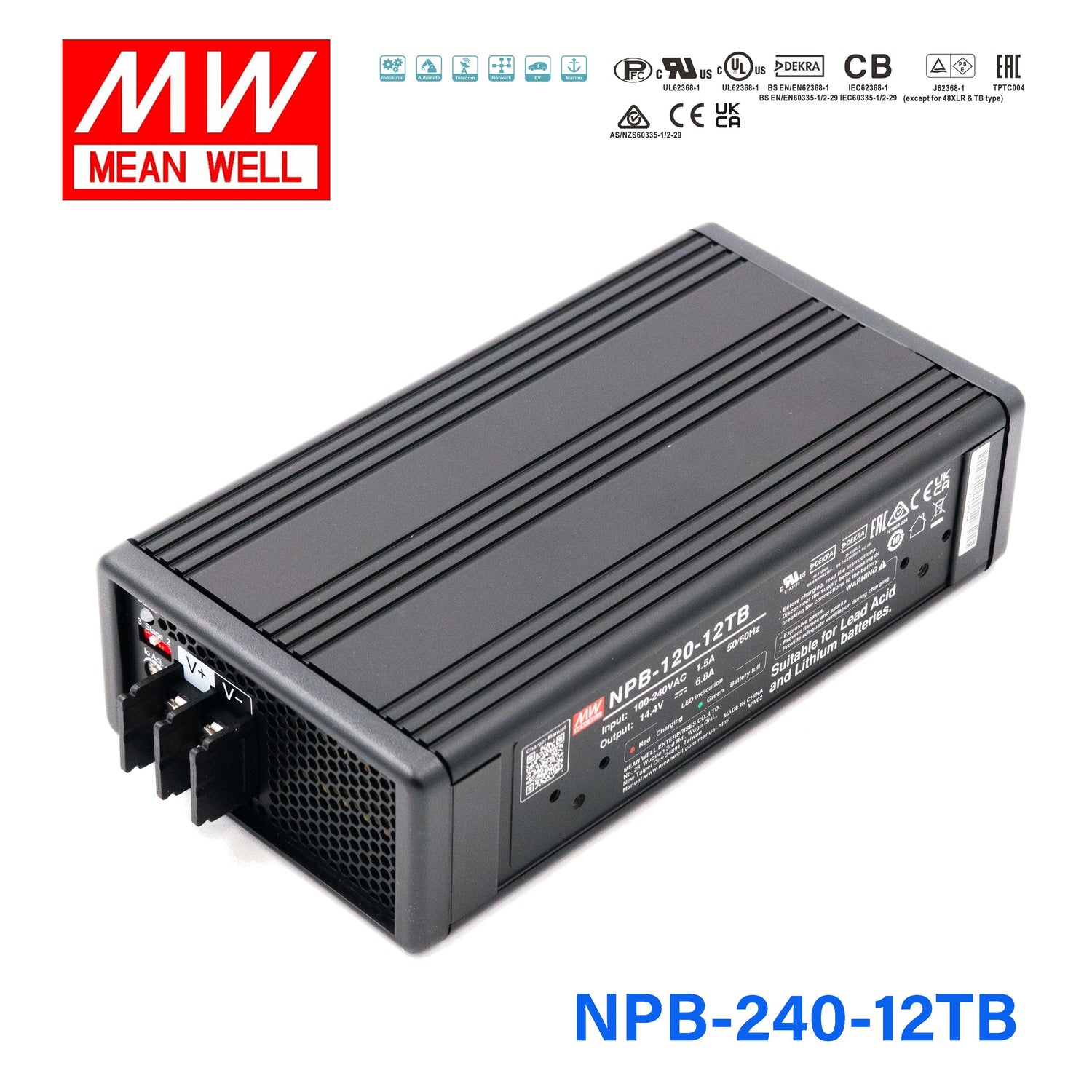

Mean Well NPB-240-12TB Battery Charger 240W 12V with Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-240-12TB Battery Charger 240W 12V with Terminal Block
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating240 Watt
-
Output Voltage14.4 Volt
-
Rated Current13.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NPB-240-12TB used for?
The NPB-240-12TB is an AC-DC battery charger designed for 12V battery charging applications. It is suited to commercial and industrial use cases that need a 240W charger with 2 or 3 stage charging and power factor correction.
What are the key output specifications of the NPB-240-12TB?
This model is rated at 240W and provides a 14.4V DC output at up to 13.5A. Those published output values make it a dedicated 12V battery charger option within Mean Well's NPB series.
Does the NPB-240-12TB support multi-stage battery charging?
Yes. Mean Well specifies this model with 2 or 3 stage charging, which makes it appropriate for battery charging applications rather than use as a basic fixed-output power supply alone. This is one of the main functional differences highlighted in the product description.
What input range does the NPB-240-12TB support?
The NPB-240-12TB is specified with universal AC input. That makes it a practical choice for buyers who need flexibility across different standard AC supply environments without selecting region-specific input versions.
Can the NPB-240-12TB be used in demanding temperature conditions?
Yes. This charger is rated for operation from -30°C to 70°C, which supports use in a wide range of indoor and industrial environments. Buyers should still confirm the surrounding application stays within the product's published temperature limits.
What warranty and physical characteristics does this charger have?
Mean Well lists the NPB-240-12TB with a 3-year warranty. The unit weight is 1.3 kg, which can matter when comparing portable or enclosure-based charger options for business equipment.
