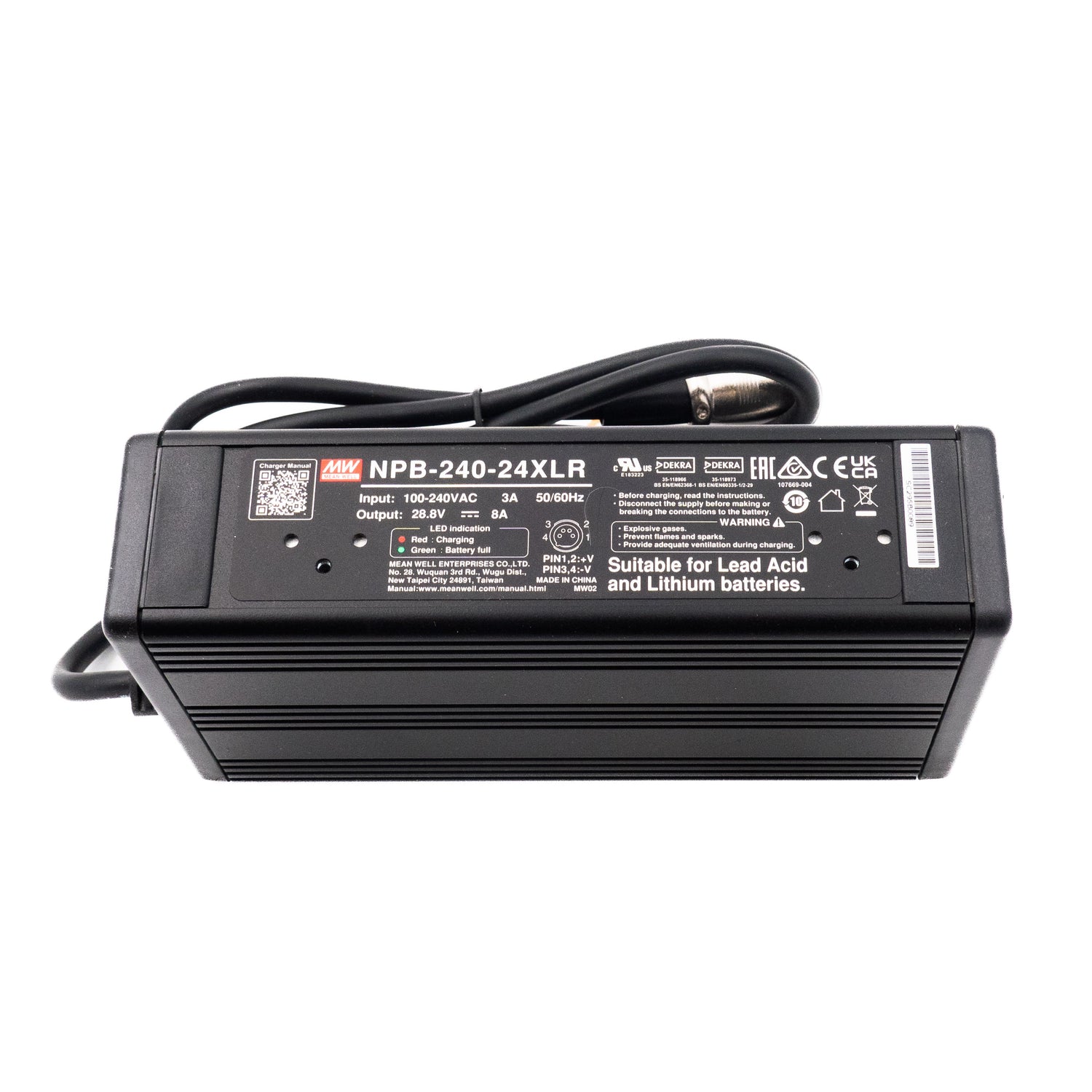

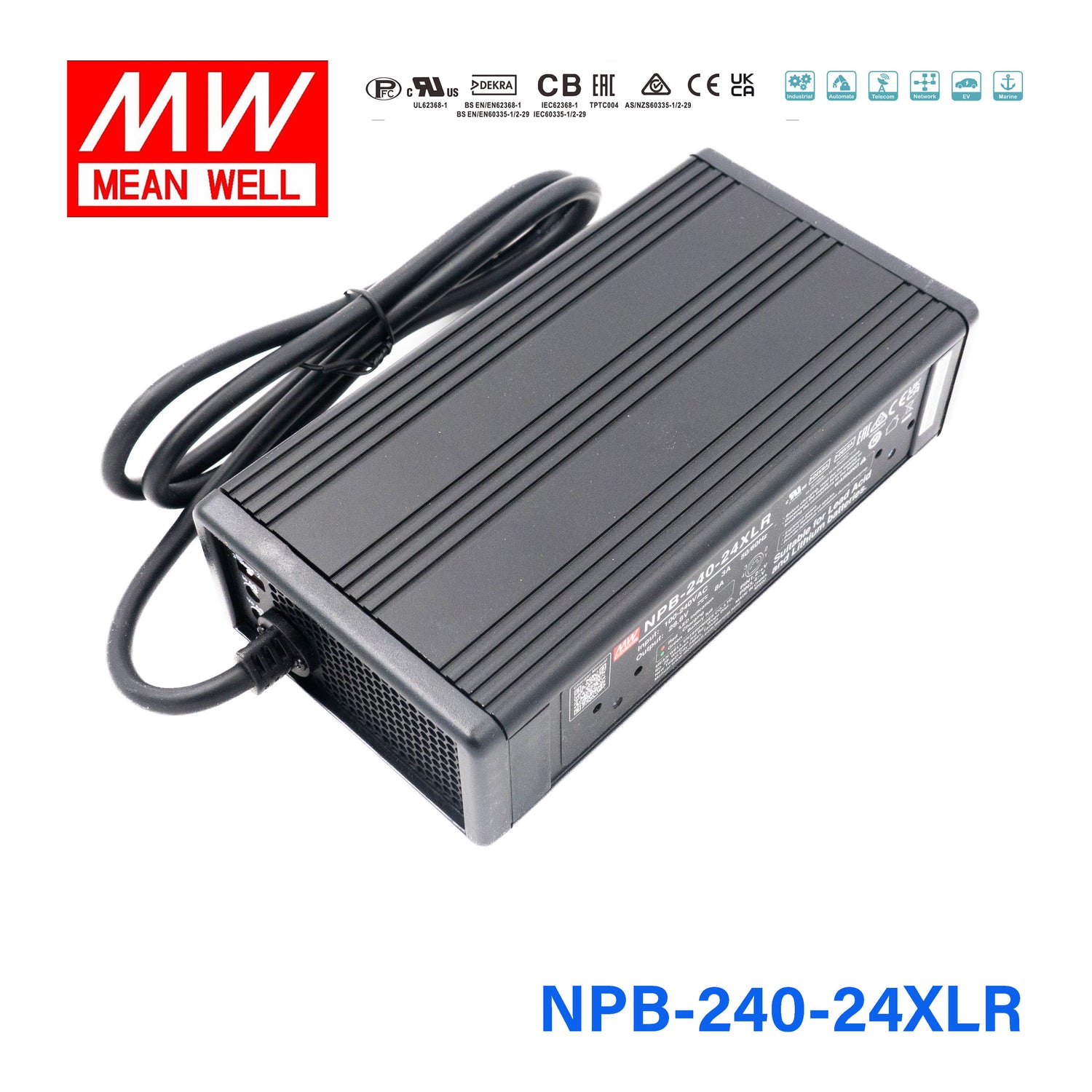

Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPB-240-24XLR Battery Charger 240W 24V 3 Pin Power Pin
The NPB-240 is a 240W Mean Well DIN rail power converter with a 182.7mm profile (input range: 90~264VAC).
Key Features
- ✓ 182.7mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating240 Watt
-
Output Voltage28.8 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What is the Mean Well NPB-240-24XLR used for?
The NPB-240-24XLR is an AC-DC battery charger designed for professional and industrial battery charging applications. It is also suitable for use where a regulated 28.8V DC output and 240W power level are required.
What are the main electrical specifications of the NPB-240-24XLR?
This model is rated at 240W and provides a 28.8V DC output at up to 8A. It accepts universal AC input and includes power factor correction (PFC), which is useful in commercial and industrial power environments.
Does the NPB-240-24XLR support staged battery charging?

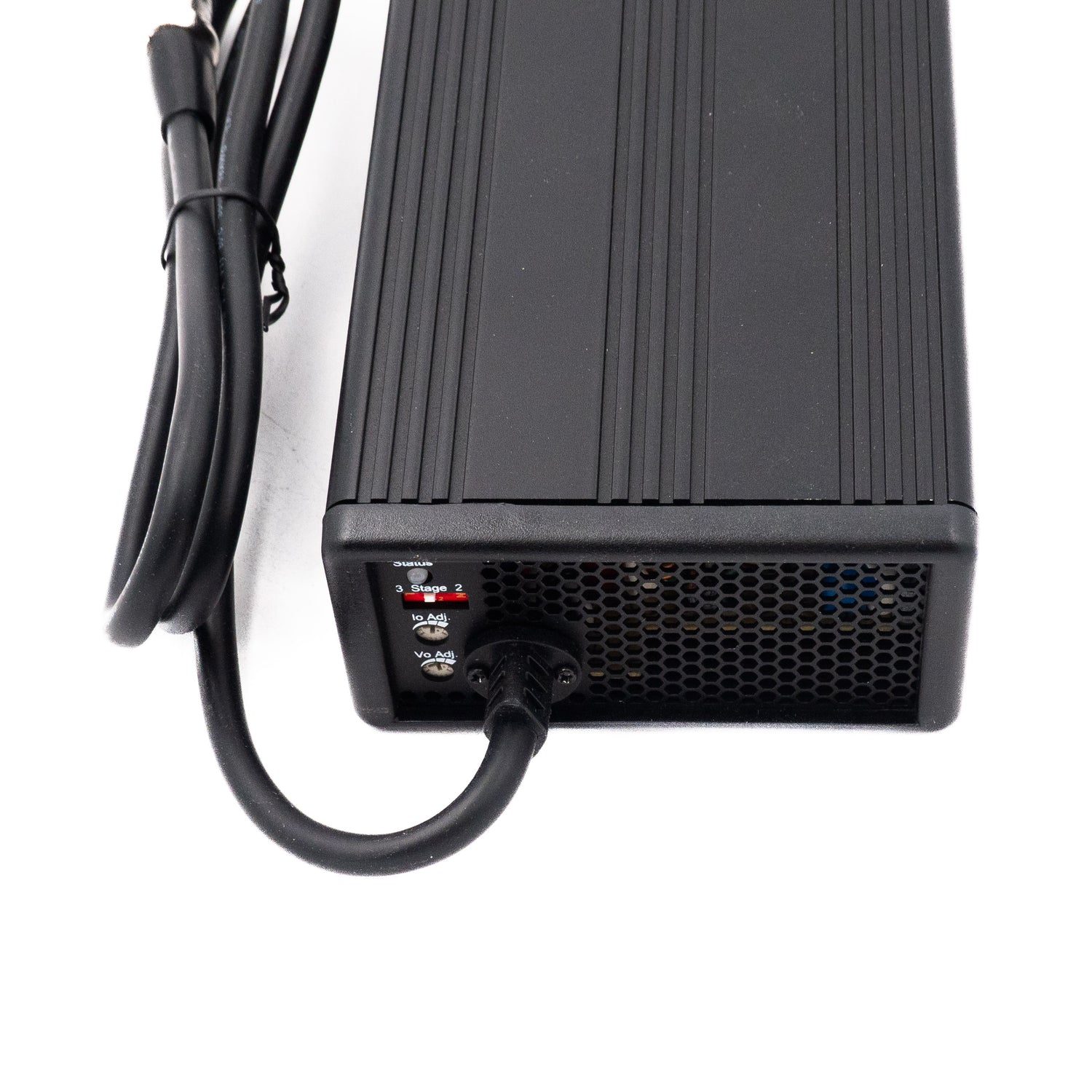

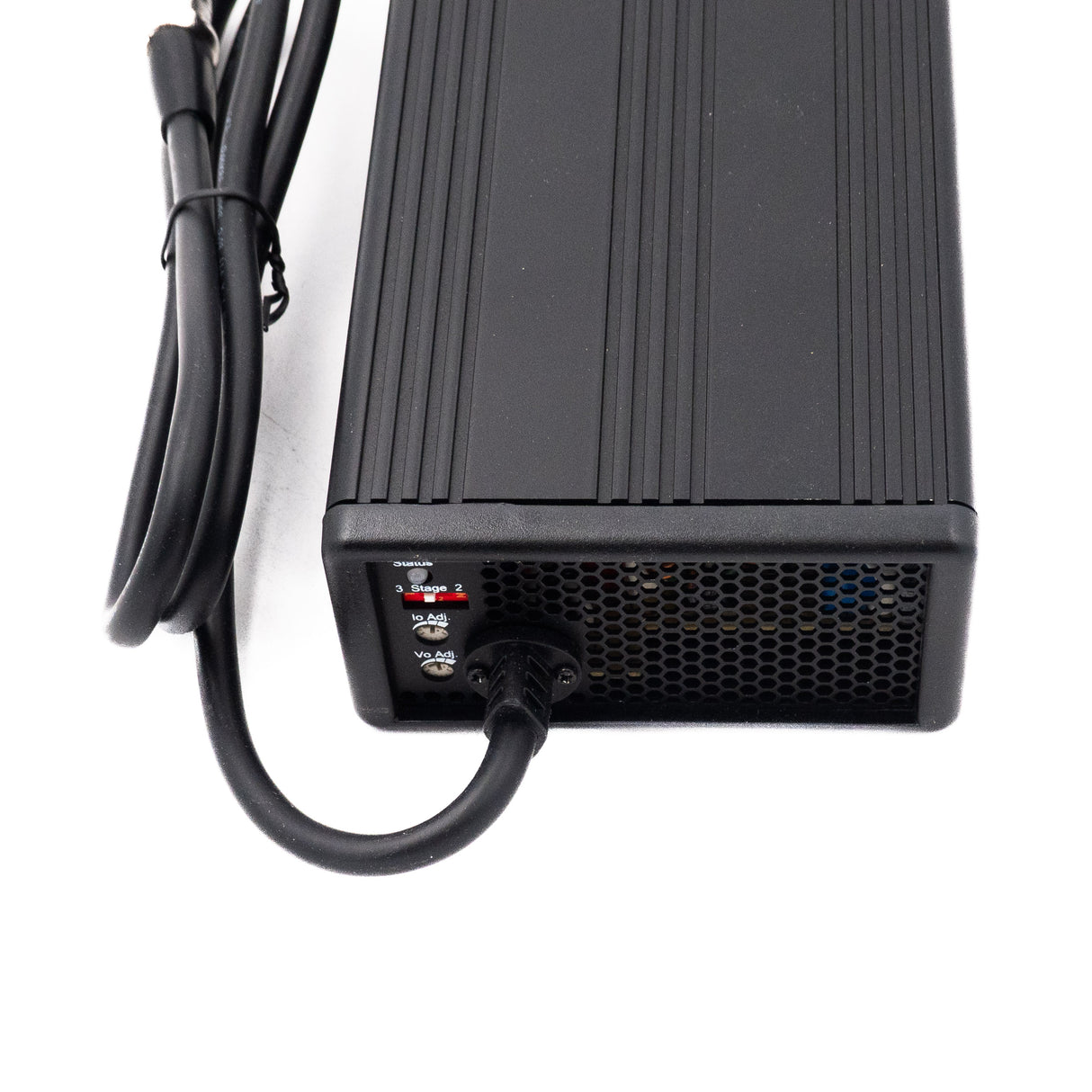

Yes. The NPB-240-24XLR supports 2-stage or 3-stage charging, which makes it suitable for battery charging applications that require controlled charging profiles. This staged charging capability is one of the key differences between a battery charger and a basic fixed-output power supply.
What operating temperatures can this charger handle?
The NPB-240-24XLR is specified for operation from -30°C to 70°C. That wide temperature range makes it a good fit for demanding indoor or enclosed equipment environments where temperature conditions may vary significantly.
Is this charger a good fit for portable or field equipment?
It can be a strong option for portable or mobile professional equipment that needs a compact 240W charger with a 28.8V output. Its listed weight is 1.3 kg, which is manageable for many transportable commercial setups while still offering substantial charging capacity.
What connector style does the NPB-240-24XLR use?
This version is identified as the NPB-240-24XLR and is described with a 3 pin power pin configuration. If your equipment or purchasing standard depends on a specific connector format, that model suffix is an important compatibility detail to confirm before ordering.
What warranty is provided for the Mean Well NPB-240-24XLR?
The listed warranty period for this model is 3 years. That can be important for commercial buyers who need predictable support coverage for maintenance planning and long-term equipment deployment.
